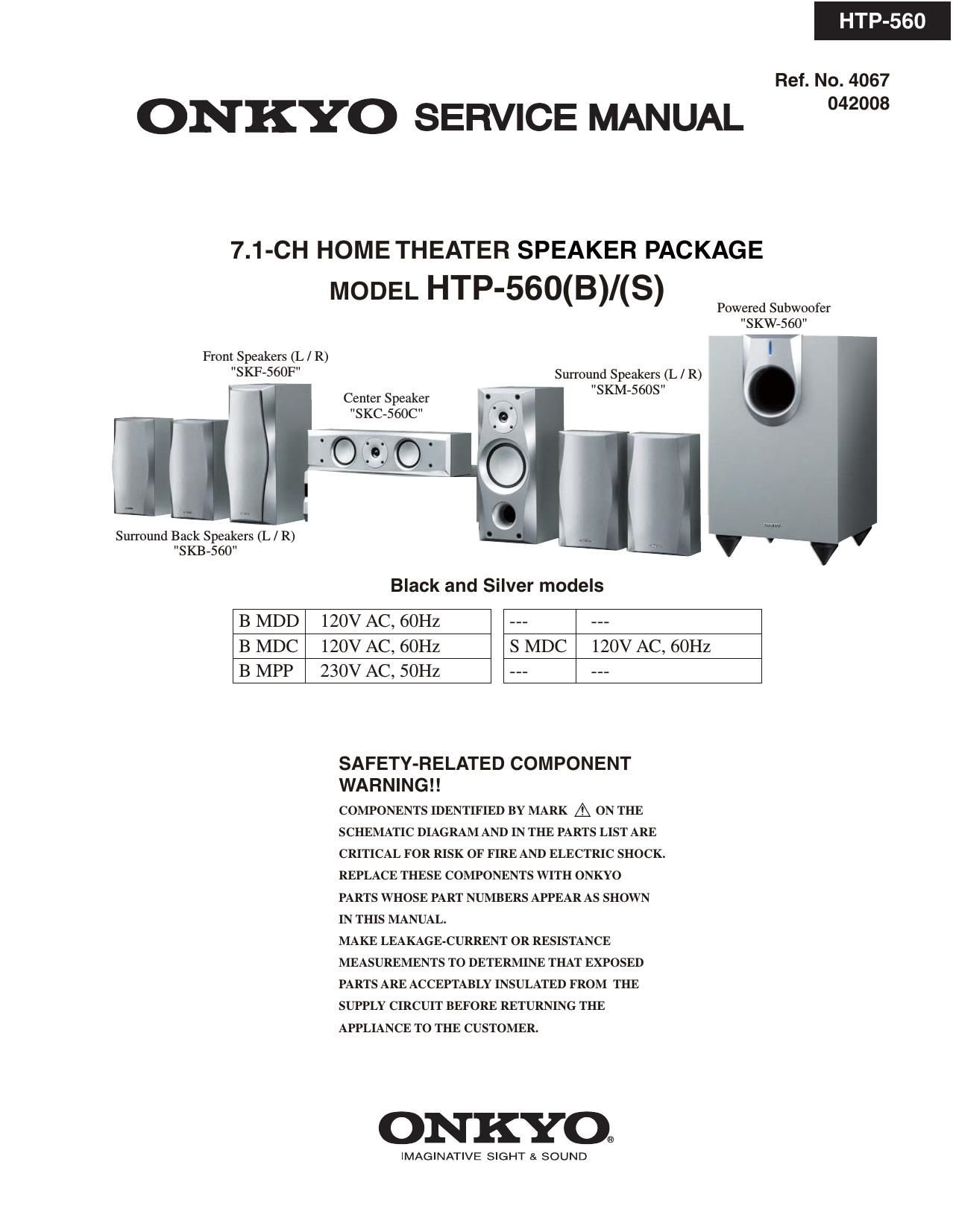

Page 1
HTP-560
Ref. No. 4067
ONKYO SERVICE MANUAL 2"
7.1-CH HOME THEATER SPEAKER PACKAGE
Front Speakers (L / R)
"SKF»560F"
Surround Back Speakers (L / R)
MODEL HTP-560(B)I(S)
Surround Speakers (L / R)
"SKM-SéOS"
Center Speaker
"SKC-560C"
Powered Subwoofer
" S KW-560 "
SKB-560"
Black and Silver models
B MDD 120V AC, 60Hz ___ ___
B MDC 120V AC, 60Hz S MDC 120V AC, 60Hz
B MPP 230V AC, 50Hz ___ ___
SAFETY-RELATED COMPONENT
WAR N l NG ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR As SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
