Onkyo SKW 540 Service Manual

Extracted text from Onkyo SKW 540 Service Manual (Ocr-read)

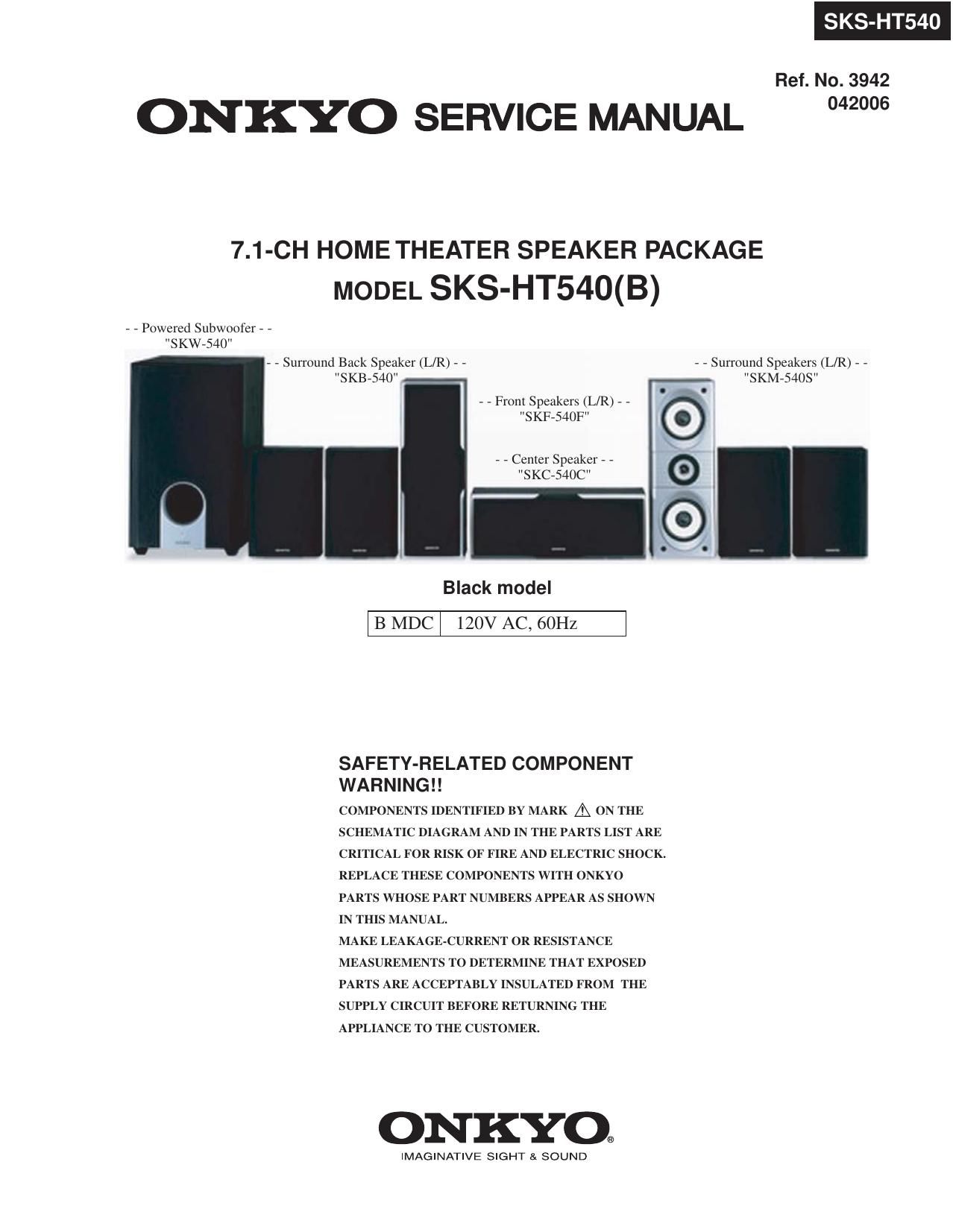

Page 1

HT540

Ref. No. 3942

ONKYO SERVICE MANUAL 2°

7.1-CH HOME THEATER SPEAKER PACKAGE
MODEL SKS-HT540(B)

7 A Puwered Subwoofer 7 -
"SKW7540"

nd Back Speaker (L/R) . -

"SKB7540"

. 7 From Speakers (L/R) 7 7
"SKFA540F"

7 7 Center Speaker 7 7
"SKC7540C"

Black model

- 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

. 7 Surround Speakers (L/R) 7 7
"SKM-54OS"
