Onkyo SKW 204 Service Manual
This is the 11 pages manual for Onkyo SKW 204 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo SKW 204 Service Manual (Ocr-read)
Page 1

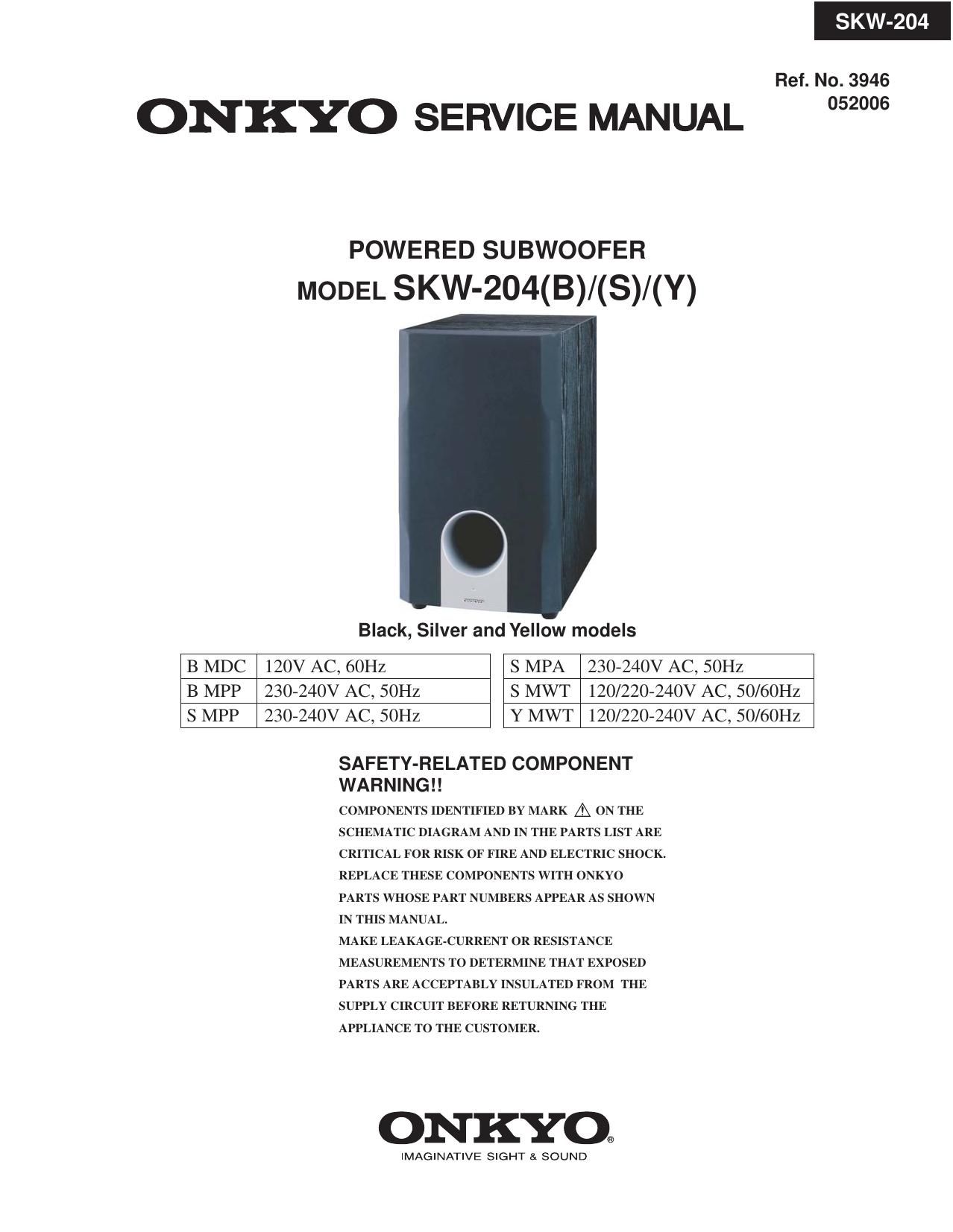

SKW-204
Ref. No. 3946
ONKYO SERVICE MANUAL 2°
POWERED SUBWOOFER
MODEL SKW-204(B)/(S)/(Y)
Black, Silver and Yellow models
B MDC 120V AC, 60Hz S MPA 230-240V AC, 50Hz
B MPP 230-240V AC, SOHZ S MWT 120/220-240V AC, 50/60Hz
S MPP 230-240V AC, SOHZ Y MWT 120/220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
