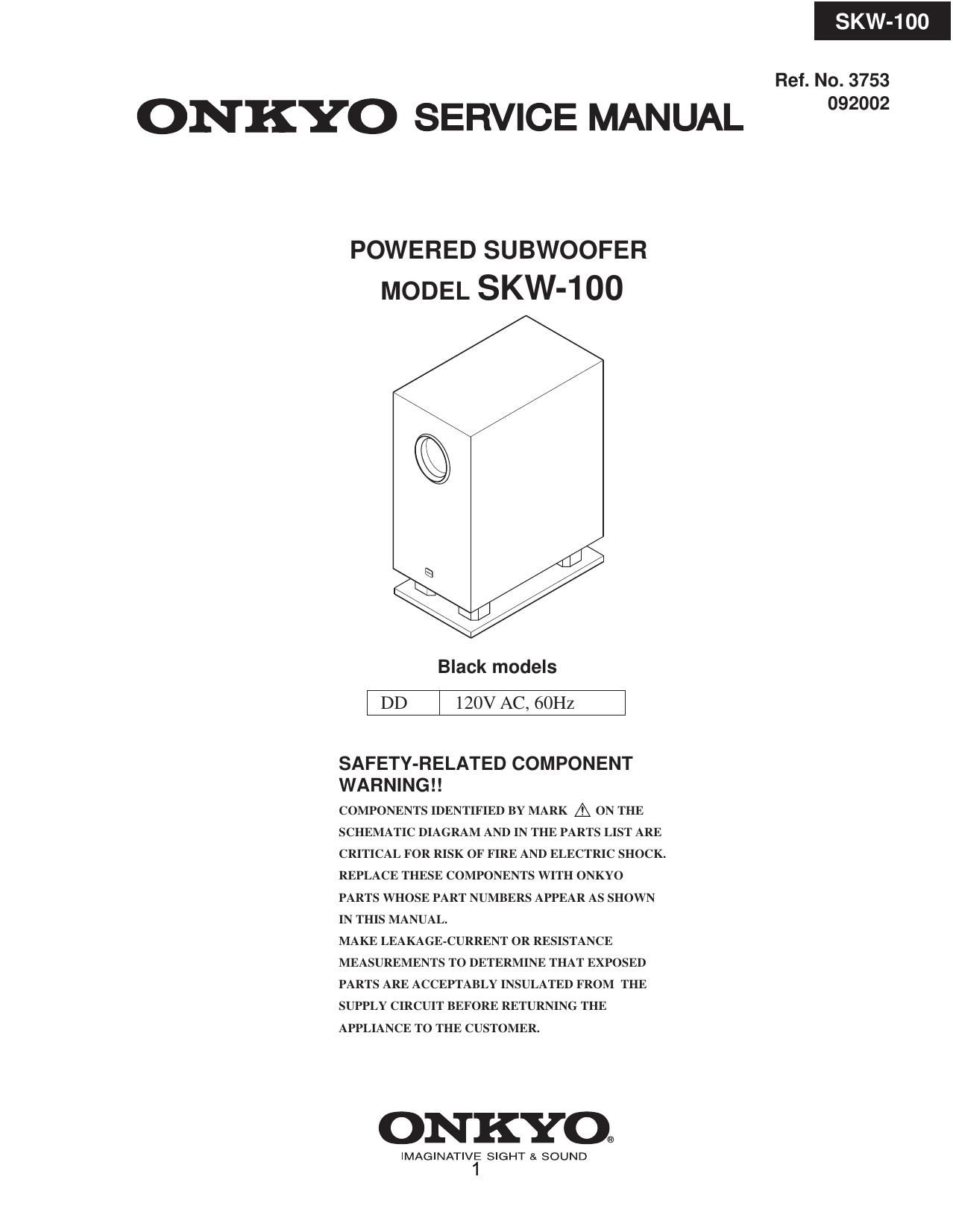

Page 1
SKW-100
Ref. No. 3753
ONKYO SERVICE MANUAL 92°
POWERED SUBWOOFER
MODEL SKW-100
Black models
III 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO
|MAGINAT|V1E SIGHT & SOUND
Page 2
SKW-100
SPECIFICATION
Type Bass-reflex with built-in power amplifier
Frequency response 30 Hz-150 Hz
Output power 150 W Dynamic
Input sensitivity 220 mV
Input impedance 15 k9
Woofer 8 inch cone type
Power supply AC120V, 60Hz
Power consumption 75 W
Dimensions (WxHxD) 9-1/4" x 20-5/16" x 16-3/16 / 235 x 516 x 411 mm
Weight 29.1 lbs. / 13.2 kg
Specifications and appearance may subject to change for improvement without prior notice.
SERVICE PROCEDURES
1. Replacing the fuse
E- This symbol located near the fuses indicates that the
fuse used is fast operating type. For continued protection against
fire hazard, replace with same type fuse. For fuse rating refer to
the marking adjacent to the symbol.
E- Ce symbole indique que le fusible utlise est a rapide.
Pour une protection permanente, n'untiliser que fusibles de
meme type. Ce darnier est la qu le present symbol est
appse.
CIRCUIT NO. PART NO. DESCRIPTION
F902,903 HWF1180406100 T4AL/250V, Fuse
