Onkyo SKSHT 640 Service Manual

This is the 19 pages manual for Onkyo SKSHT 640 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 19
Onkyo SKSHT 640 Service Manual

Extracted text from Onkyo SKSHT 640 Service Manual (Ocr-read)


Page 1

HT540

Ref. No. 3942

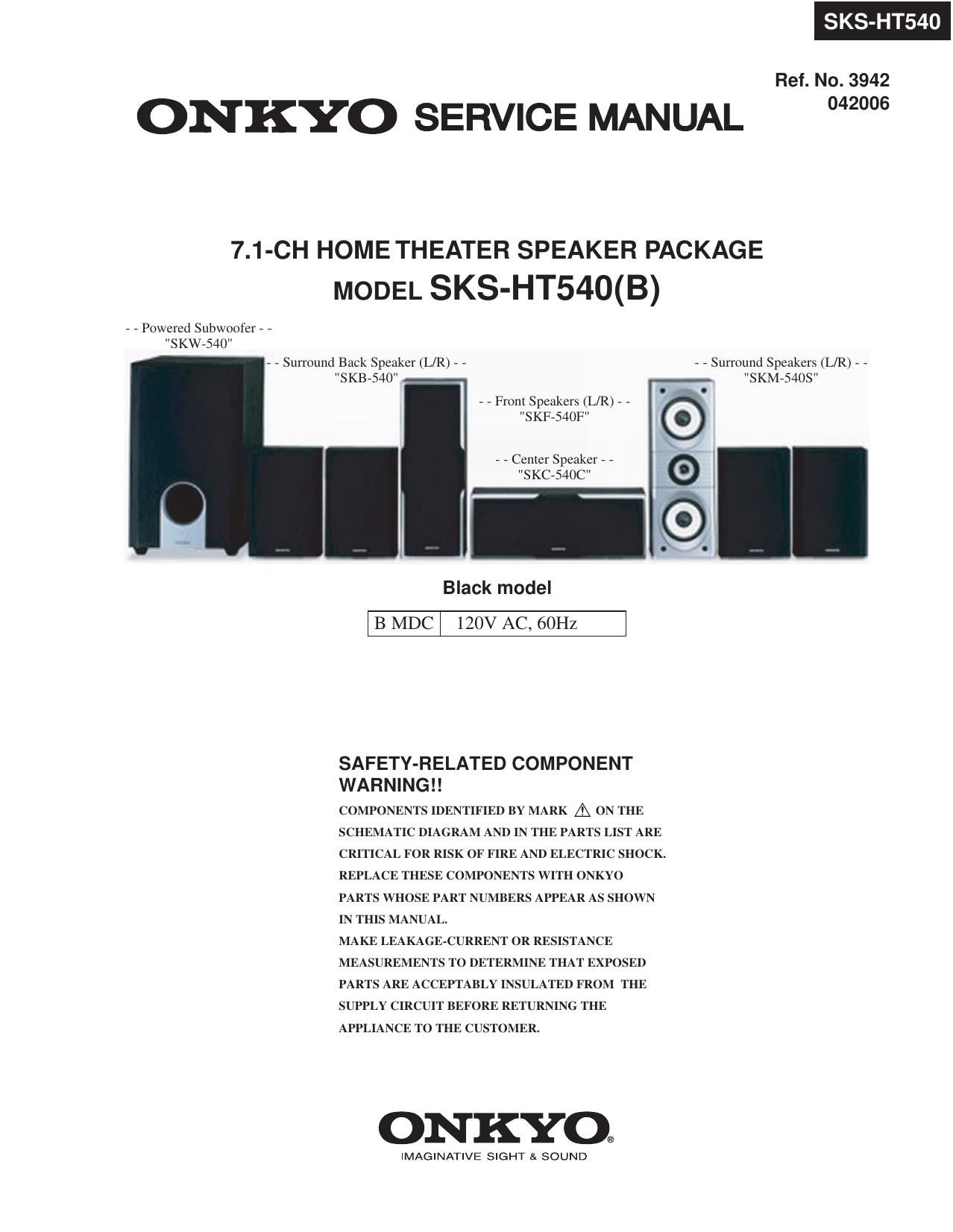

ONKYO SERVICE MANUAL 2°

7.1-CH HOME THEATER SPEAKER PACKAGE
MODEL SKS-HT540(B)

7 A Puwered Subwoofer 7 -
"SKW7540"

nd Back Speaker (L/R) . -

"SKB7540"

. 7 From Speakers (L/R) 7 7
"SKFA540F"

7 7 Center Speaker 7 7
"SKC7540C"

Black model

- 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE

CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.

REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

. 7 Surround Speakers (L/R) 7 7
"SKM-54OS"
