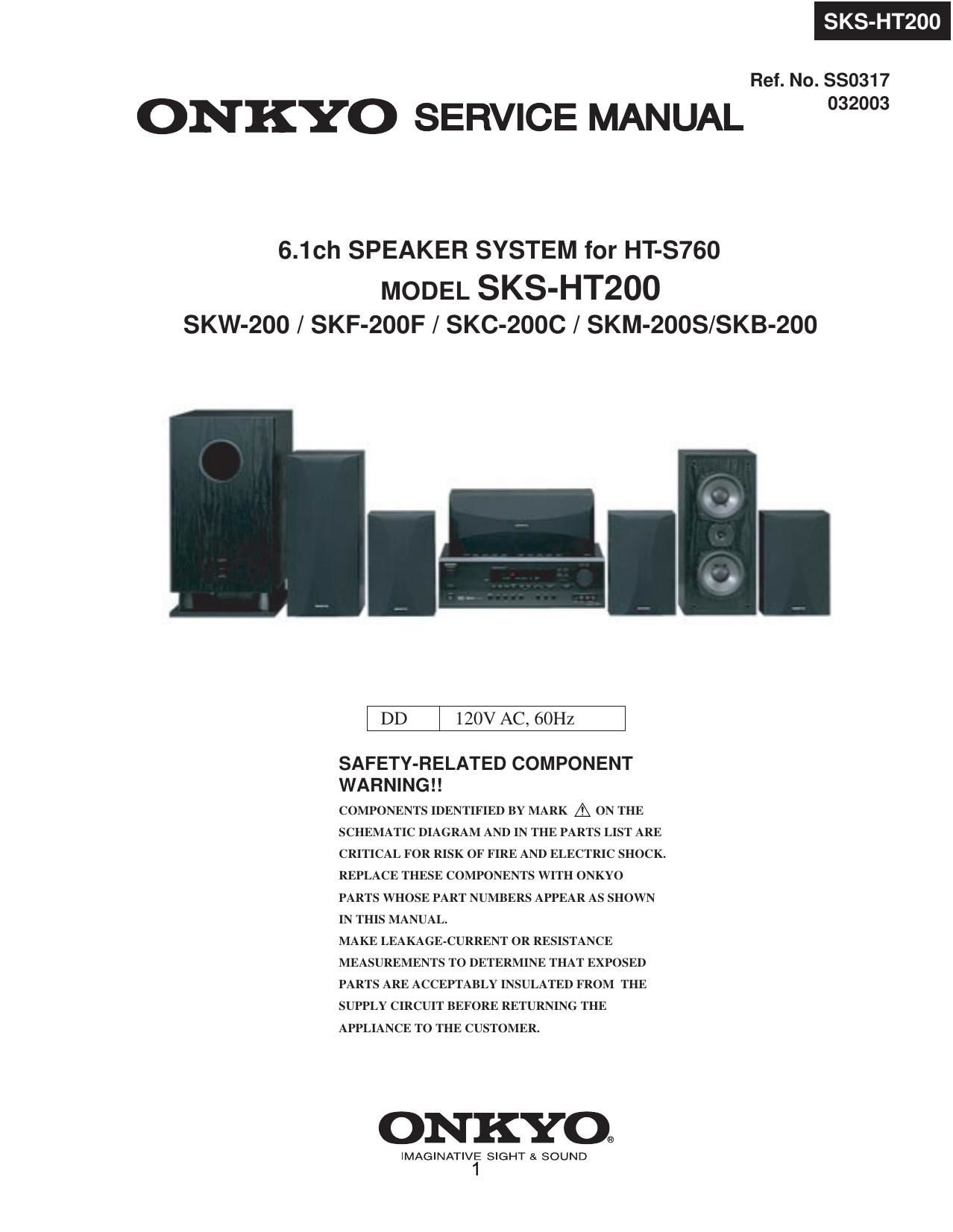

Page 1
SKS-HT200
Ref. No. 530317
ONKYO SERVICE MANUAL 32°
6.1ch SPEAKER SYSTEM for HT-S760
MODEL SKS-HT200
SKW-200 / SKF-200F / SKC-200C / SKM-ZOOS/SKB-ZOO
9'!
l I .I
III 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO
|MAGINAT|V1E SIGHT & SOUND
Page 2
SPECIFICATION
SKW-200
Type Bass-reflex with built-in power amplifier
Frequency response 27 Hz-150 Hz
Output power 150 W Dynamic
Input sensitivity 220 mV
Input impedance 15 k9
Woofer 8-inch cone type
Power supply AC 120 V, 60 Hz
Power consumption 75 W
Dimensions (W>
Specifications and appearance may subject to change for improvement without prior notice.
