Onkyo SKSHT 150 Service Manual
This is the 12 pages manual for Onkyo SKSHT 150 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo SKSHT 150 Service Manual (Ocr-read)
Page 1

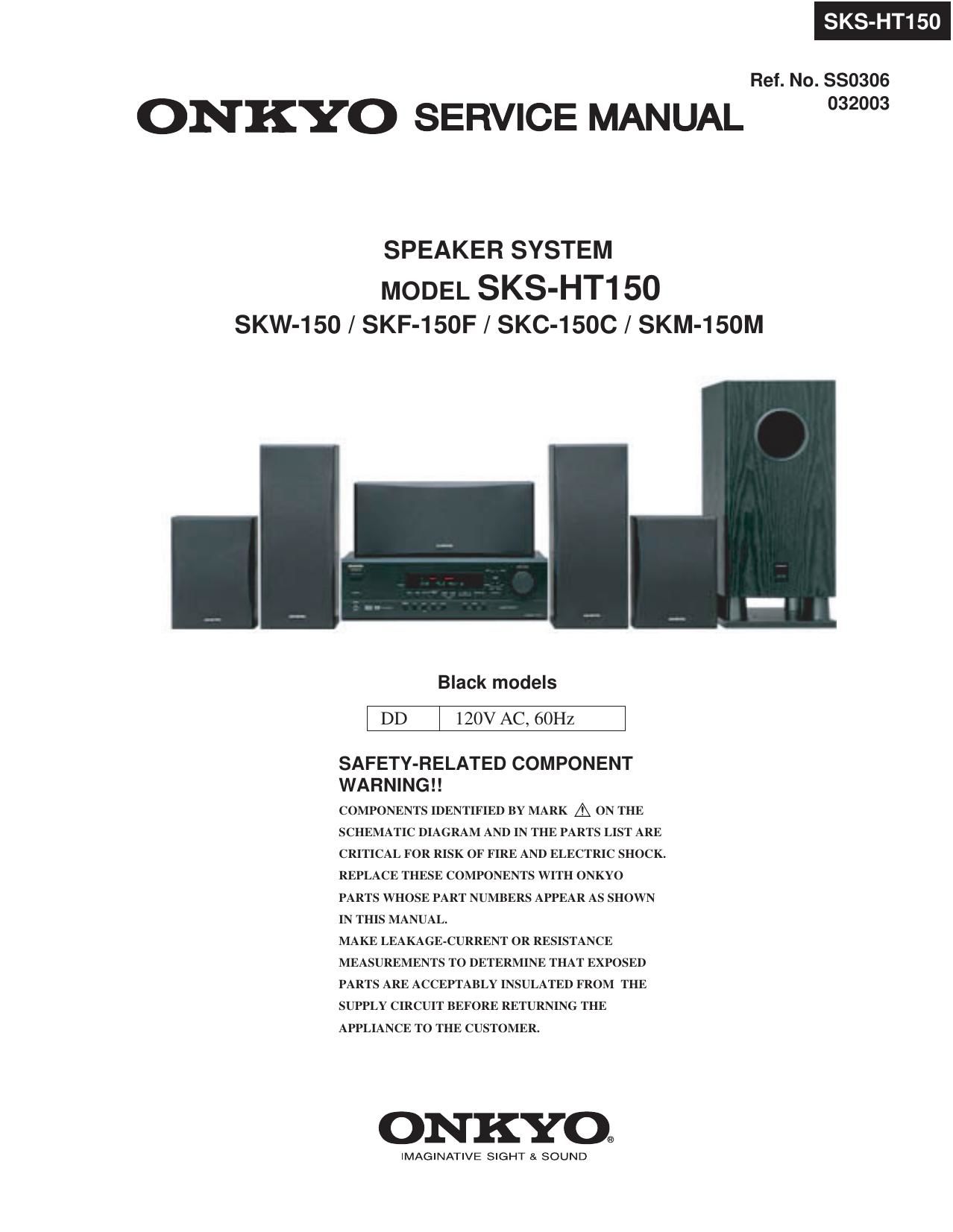

SKS-HT150
Ref. No. 530306
ONKYO SERVICE MANUAL 2°
SPEAKER SYSTEM
MODEL SKS-HT150
SKW-150/SKF-150F/ SKC-150C/SKM-150M
Black models
III 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
