Onkyo SBX 300 B Service Manual

Page 1

SEX-300

Ref. No. 4331

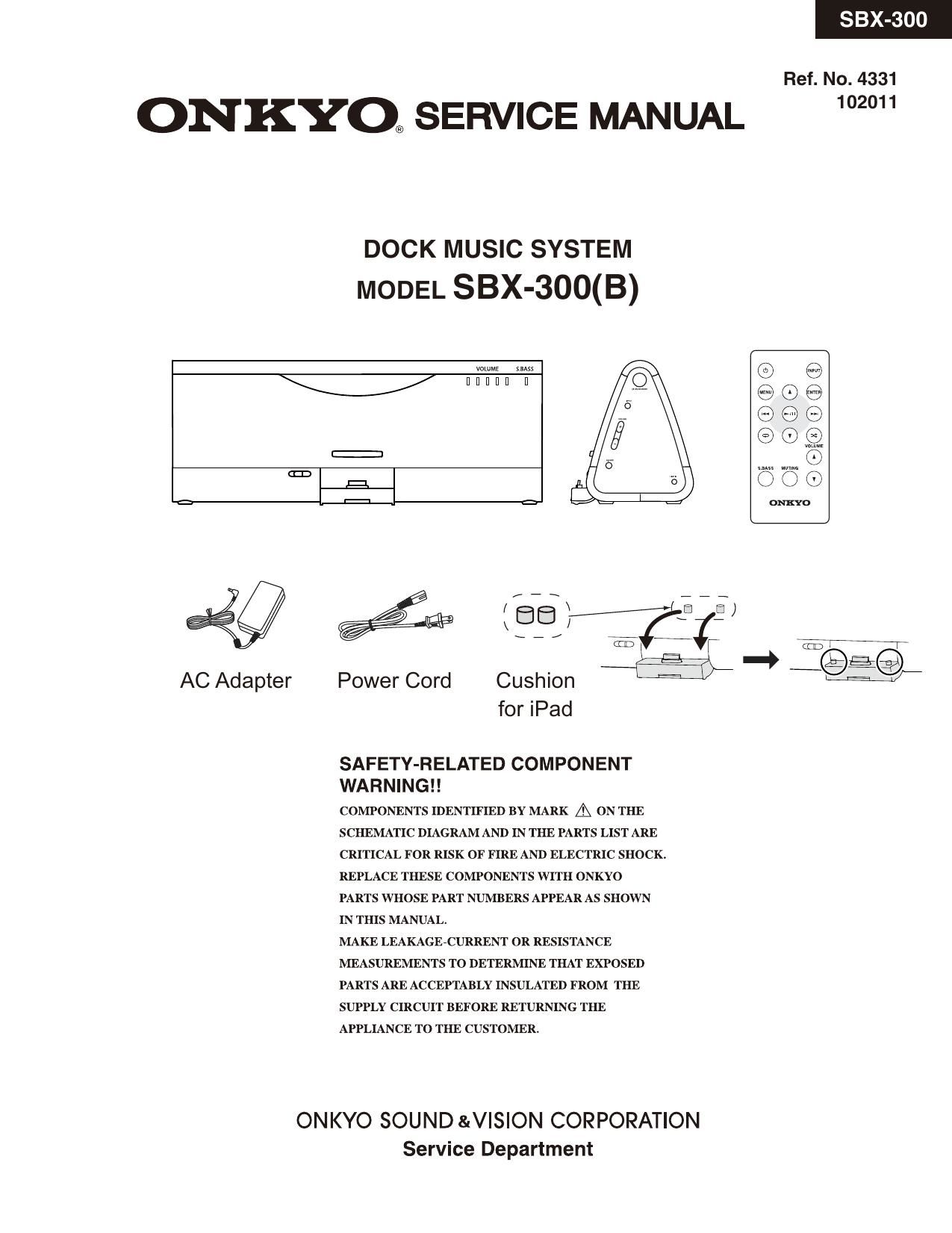

ONKYO® SERVICE MANUAL 2°

DOCK MUSIC SYSTEM
MODEL SEX-300(3)

nfimumfi n E 8 A 8
® (2 (2
a Q
ID V
z.
6% %m (E38 )/(PIE)
_ I E if' " Eifii

AC Adapter Power Cord Cushion P

for iPad

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION
Service Department
