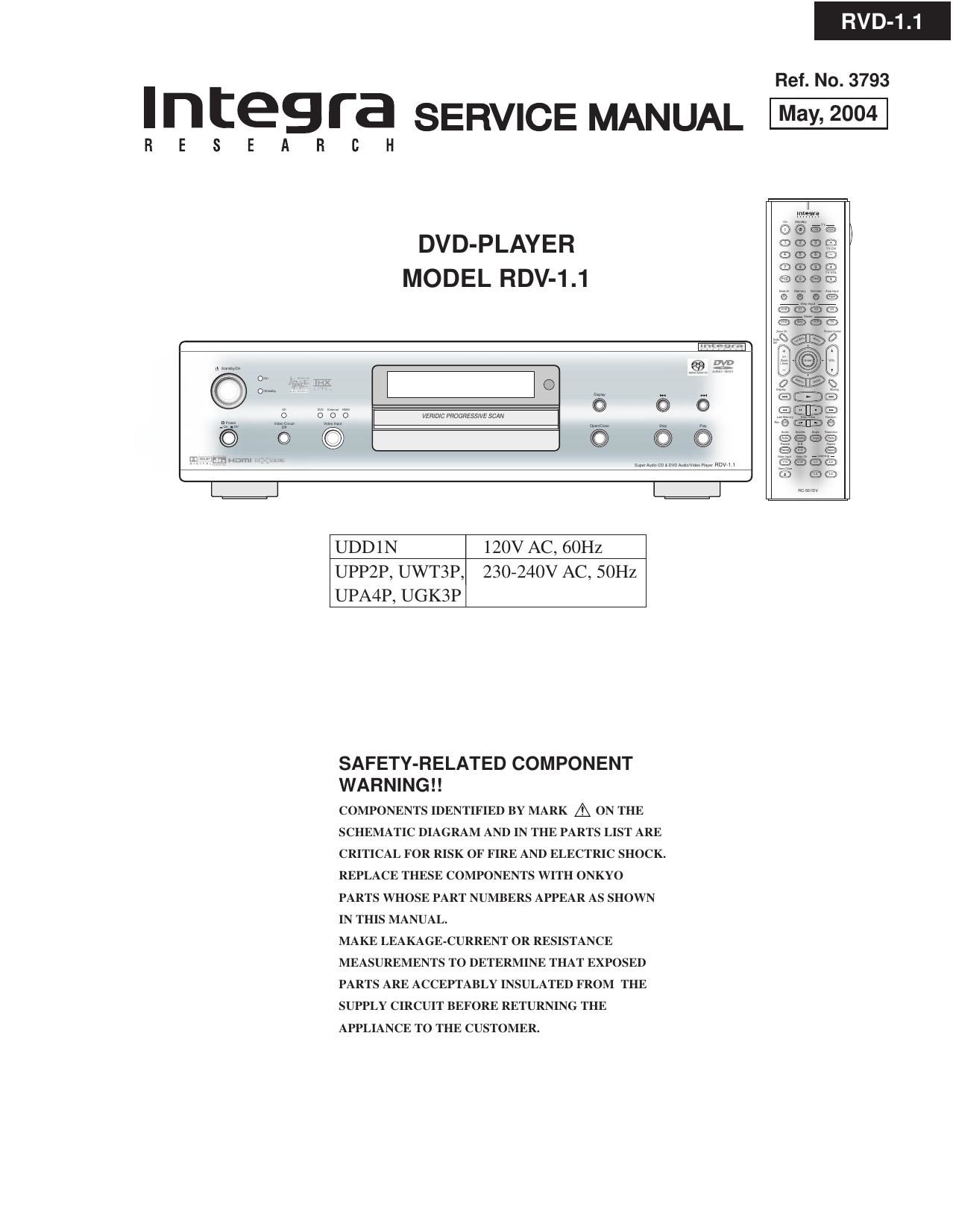

Page 1
Integrca SERVICE MANUAL
DVD-PLAYER
MODEL RDV-1.1
RVD-1.1
Ref. No. 3793
May, 2004
2;. : S o I -
/ o o 6' 5 vmuycpnoenssswssm Q Q Q
6 5 © 6
Elm m I M. mam/u
1 1
UDDlN
120V AC, 60Hz
UPPZP, UWT3P,
UPA4P, UGK3P
230-240V AC, SOHZ
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
