Onkyo R 801 A Service Manual

Extracted text from Onkyo R 801 A Service Manual (Ocr-read)

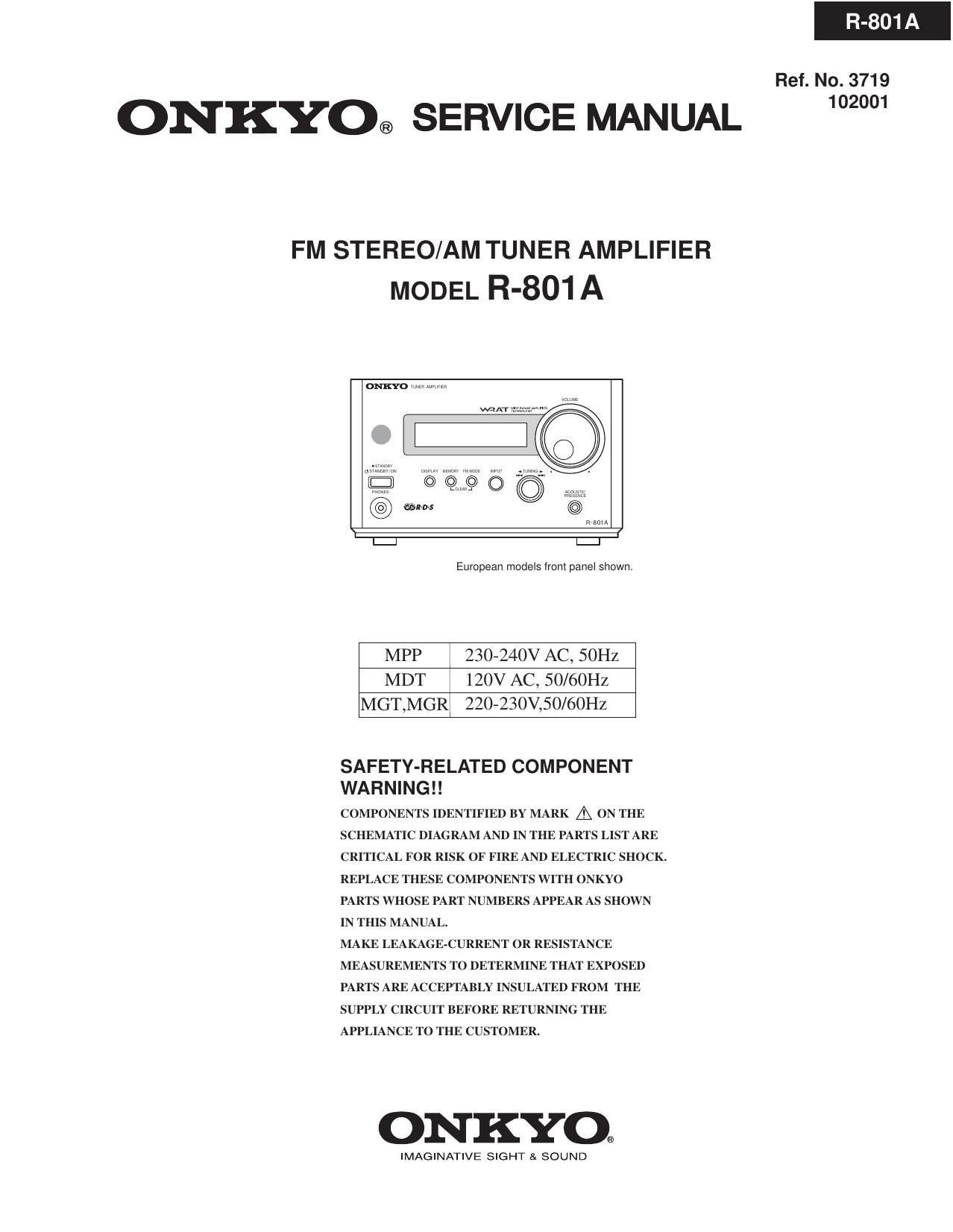

Page 1

R-801 A

Ref. No. 3719

()NKYO® SERVICE MANUAL °2°°

FM STEREO/AM TUNER AMPLIFIER
MODEL R-801 A

mum

European models from panel shown.

MPP 230-240V AC, 50Hz
MDT 120V AC, 50/60HZ
MGT,MGR 22()-23()V,50/6()Hz

SAFETY-RELATED COMPONENT
WARNING ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT 8. SOUND

Page 32

R-801 A

ONKYO CORPORATION
Sales & Product Planning Div. :2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8111 Fax: 072-833-5222

ONKYO EUROPE ELECTRONICS GmbH

lndustriestrasse 20, 82110 Germering, GERMANY

Tel: 089-849-320 Fax: 089-849-3265 E-mail: info@onkyo.de
ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Fload, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039

ONKYO
HOMEPAGE

htlp://www.onkyo.co.ip/
