Onkyo PRSC 886 Service Manual

This is the 260 pages manual for Onkyo PRSC 886 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 260
Onkyo PRSC 886 Service Manual

Extracted text from Onkyo PRSC 886 Service Manual (Ocr-read)


Page 1

Ref. No. 4102

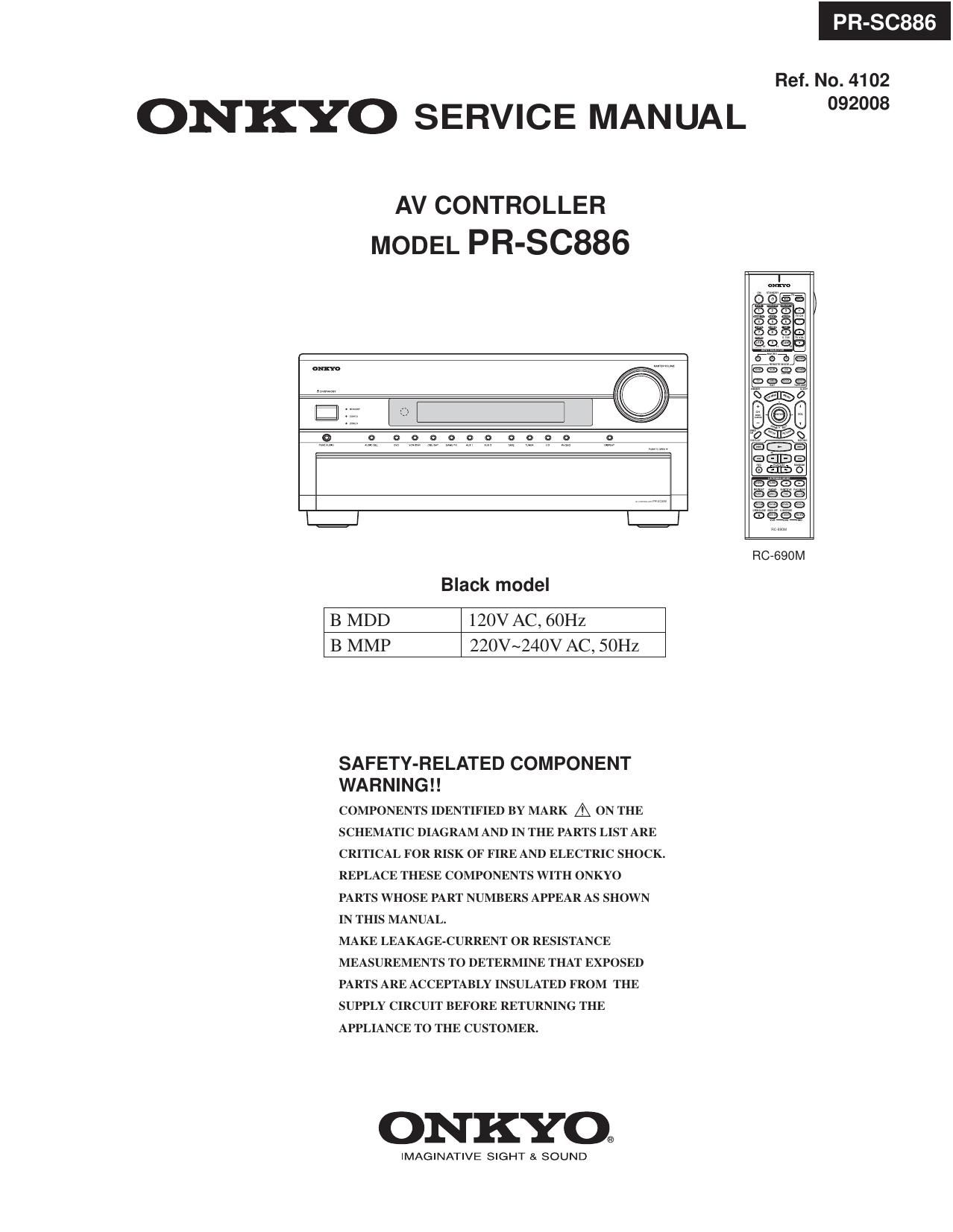

ON KYO SERVICE MANUAL 92°

AV CONTROLLER
MODEL PR-SC886

RC-690M
Black model
B MDD 120V AC, 60Hz
B MMP 220V~240V AC, 5()Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND
