Onkyo PRSC 5507 Owners Manual
This is the 156 pages manual for Onkyo PRSC 5507 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo PRSC 5507 Owners Manual (Ocr-read)

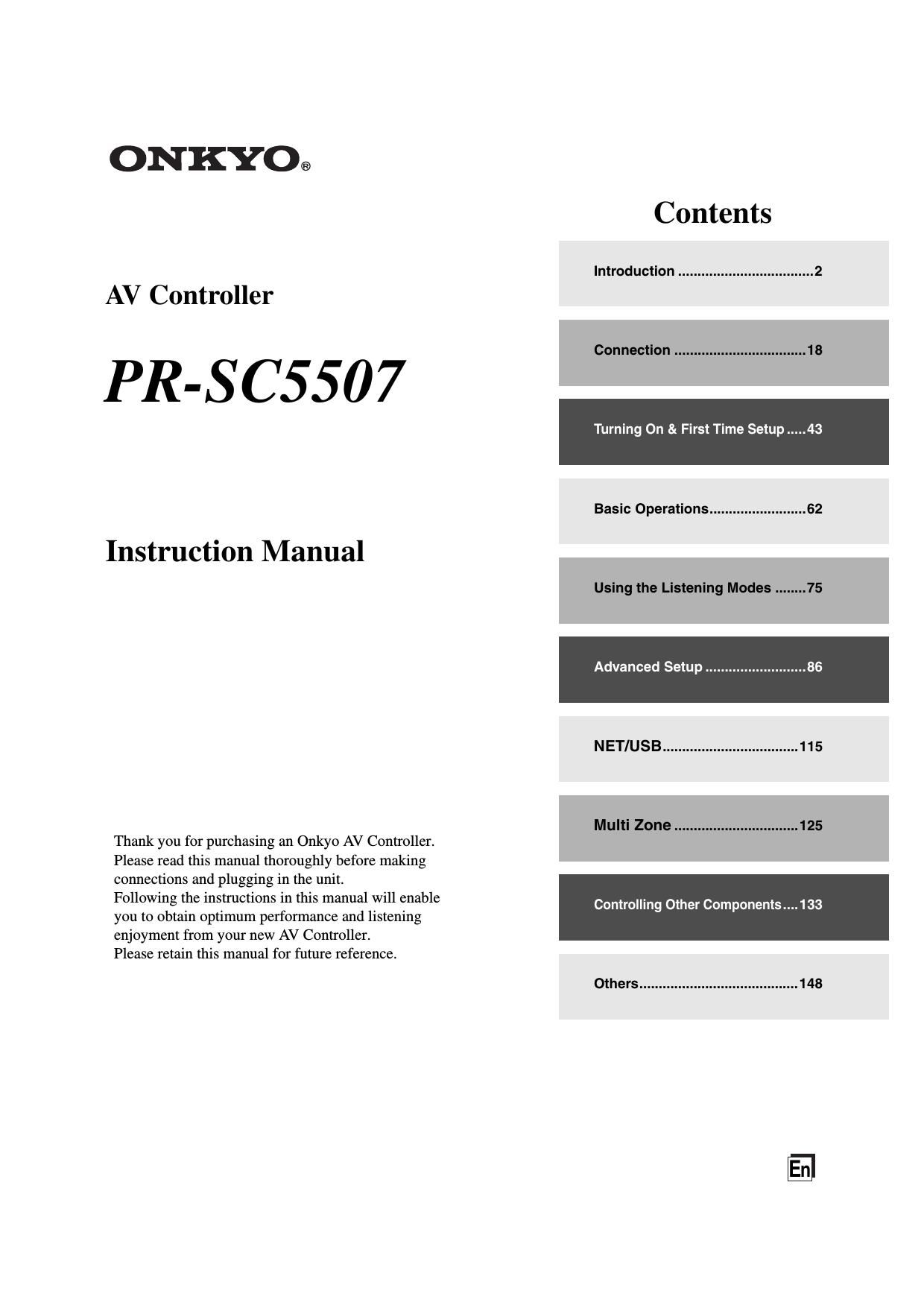

Page 1
2Important Safety Instructions1. Read these instructions.2. Keep these instructions.3. Heed all warnings.4. Follow all instructions.5. Do not use this apparatus near water.6. Clean only with dry cloth.7. Do not block any ventilation openings. Install in accordance with the manufacturers instructions.8. Do not install near any heat sources such as radia-tors, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are pro-vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.10. Protect the power cord from being walked on or pinched particularly at plugs, convenience recepta-cles, and the point where they exit from the appara-tus.11. Only use attachments/accessories specified by the manufacturer.12. Use only with the cart, stand, tripod, bracket, or table specified by the manu-facturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.13. Unplug this apparatus during lightning storms or when unused for long periods of time.14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.15. Damage Requiring ServiceUnplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:A. When the power-supply cord or plug is dam-aged,B. If liquid has been spilled, or objects have fallen into the apparatus,C. If the apparatus has been exposed to rain or water,D. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the oper-ating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified tech-nician to restore the apparatus to its normal operation,E. If the apparatus has been dropped or damaged in any way, andF. When the apparatus exhibits a distinct change in performance this indicates a need for service.16. Object and Liquid EntryNever push objects of any kind into the apparatus through openings as they may touch dangerous volt-age points or short-out parts that could result in a fire or electric shock.The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.Dont put candles or other burning objects on top of this unit.17. BatteriesAlways consider the environmental issues and fol-low local regulations when disposing of batteries.18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade-quate ventilation.Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNINGRISK OF ELECTRIC SHOCKDO NOT OPENRISQUE DE CHOC ELECTRIQUENE PAS OUVRIRAVIS PORTABLE CART WARNINGS3125A
Page 2
3Precautions1. Recording Copyright-Unless its for personal use only, recording copyrighted material is illegal with-out the permission of the copyright holder.2. AC Fuse-The AC fuse inside the unit is not user-serviceable. If you cannot turn on the unit, contact your Onkyo dealer.3. Care-Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild deter-gent and water. Dry the unit immediately afterwards with a clean cloth. Dont use abrasive cloths, thin-ners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel let-tering.4. PowerWARNINGBEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SEC-TION CAREFULLY.AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the units rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.Pressing the [ON/STANDBY] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.5. Preventing Hearing LossCautionExcessive sound pressure from earphones and head-phones can cause hearing loss.6. Batteries and Heat ExposureWa rn i n gBatteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.7. Never Touch this Unit with Wet Hands-Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.8. Handling Notes If you need to transport this unit, use the original packaging to pack it how it was when you origi-nally bought it. Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case. This units top and rear panels may get warm after prolonged use. This is normal. If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.For U.S. modelsFCC Information for UserCAUTION:The user changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment.NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer-ence in a residential installation.This equipment generates, uses and can radiate radio fre-quency energy and, if not installed and used in accor-dance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partic-ular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit dif-ferent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV techni-cian for help.For Canadian ModelsNOTE: THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.For models having a power cord with a polarized plug:CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.Modèle pour les CanadienREMARQUE: CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.Sur les modèles dont la fiche est polarisée:AT T E N T I O N : POUR ÉVITER LES CHOCS ÉLEC-TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRE-SPONDANTE DE LA PRISE ET POUSSER JUSQUAU FOND.
Page 23
24Connecting the AV controller-Continued Before making any AV connections, read the manuals supplied with your other AV components. Dont connect the power cord until youve completed and double-checked all AV connections.Optical Digital JacksThe AV controllers optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when its removed. Push plugs in all the way.Caution: To prevent shutter damage, hold the optical plug straight when inserting and removing.AV Connection Color CodingRCA-type AV connections are usually color-coded: red, white, and yellow. Use red plugs to connect right-chan-nel audio inputs and outputs (typically labeled R). Use white plugs to connect left-channel audio inputs and out-puts (typically labeled L). And use yellow plugs to connect composite video inputs and outputs. Push plugs in all the way to make good connections (loose connec-tions can cause noise or malfunc-tions). To prevent interference, keep audio and video cables away from power cords and speaker cables.AV Cables & JacksAbout AV ConnectionsAnalog audioComposite videoLeft (white)Right (red) Right (red)Left (white)(Yellow)(Yellow)Right!Wrong!Video / AudioCable Jack DescriptionHDMIHDMI connections can carry uncompressed stan-dard- or high-definition digital video and audio and offer the best picture and sound quality.VideoComponent video cableComponent video separates the luminance (Y) and color difference signals (PR, PB), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).S-Video cableS-Video separates the luminance and color signals and provides better picture quality than composite video. Composite video cableComposite video is commonly used on TVs, VCRs, and other video equipment.HDMIYPB/CBPR/CRYPB/CBPR/CRV
Page 35
36Connecting the AV controller-ContinuedWith this hookup, you can use your satellite or cable receiver to listen to your favorite TV programs via the AV controller, useful if your TV has no audio outputs. With connection , you can listen to and record audio from the video source or listen in Zone 2 or Zone 3. To enjoy Dolby Digital and DTS, use connection or . (To record or listen in Zone 2 or Zone 3 as well, use and , or and .)Connecting a Satellite, Cable, Terrestrial Set-top box, or Other Video SourceConnection AV controller Signal flow Video sourceCOMPONENT VIDEO IN 2 (CBL/SAT)⇐Component video outputCBL/SAT IN S⇐S-Video outputCBL/SAT IN V⇐Composite video outputCBL/SAT IN L/R⇐Analog audio L/R outputDIGITAL COAXIAL IN 3 (CBL/SAT)⇐Digital coaxial outputDIGITAL OPTICAL IN 1 (GAME)⇐Digital optical outputHint!Step 1: Video ConnectionChoose a video connection that matches the video source ( , , or ), and then make the connection.You must connect the AV controller to your TV via the same type of connection.ABCStep 2: Audio ConnectionChoose an audio connection that matches the video source ( , , or ), and then make the connection.abcabcabacABCabcCOAXIAL OUT OPTICAL OUT AUDIO OUT L R S VIDEO OUT VIDEO OUT COMPONENT VIDEO OUT Y PB PR a b c CBASatellite, cable, set-top box, etc.When you use connection , you need to assign the digital audio input (see page 51).c
Page 51
52First Time Setup-ContinuedIf you connect a component to the AV controllers analog multichannel input, you must assign that input to an input selector. For example, if you connect your DVD/BD player to the multichannel input, you must assign it to the DVD/BD input selector.If you connect a component to the AV controllers balanced input, you must assign that input to an input selector. For example, if you connect your CD player to the balanced input, you must assign it to the CD input selector.Notes: To listen to the component connected to the multi-channel input or balanced input, press the [AUDIO] button and select the Audio selector (see page 114). This procedure can also be performed on the AV con-troller by using its [SETUP] button, arrow buttons, and [ENTER] button.Analog Audio Input Setup1Press the [RECEIVER] button, followed by the [SETUP] button.The main menu appears onscreen.If the main menu doesnt appear, make sure the appropriate external input is selected on your TV.2Use the Up and Down [ R]/[ X] but-tons to select 1. Input/Output Assign, and then press [ENTER].The Input/Output Assign menu appears.3Use the Up and Down [ R]/[ X] but-tons to select 5. Analog Audio Input, and then press [ENTER].The Analog Audio Input menu appears.1. Input/Output Assign1. Monitor Out2. HDMI Input3. Component Video Input4. Digital Audio Input5. Analog Audio Input6. Gamma CurveMultich Subwoofer Input SensitivityBalance Input Channel- - - - -0dB- - - - -Stereo1–5. Analog Audio Input4Use the Left and Right [ F]/[ S] buttons to select an input selec-tor.You can assign the multichannel input to the following input selectors: DVD/BD, VCR/DVR, CBL/SAT, GAME, AUX1, AUX2, TV/TAPE, CD, or PHONO. If you dont want to assign the multichannel input, set to - - - - -.5Use the Up and Down [ R]/[ X] but-tons to select Balance, and use the Left and Right [ F]/[ S] but-tons to select an input selector:You can assign the balanced input to the following input selectors: DVD/BD, VCR/DVR, CBL/SAT, GAME, AUX1, AUX2, TV/TAPE, CD, or PHONO. If you dont want to assign the balanced input, set to - - - - -.6Use the Up and Down [ R]/[ X] but-tons to select Input Channel, and use the Left and Right [ F]/[ S] buttons to select:Stereo:Select if the source is stereo and youve connected it to the INPUT:BALANCE L/R jacks.Mono(L):Select if the source is mono and youve connected it to the INPUT:BALANCE L jack.7Press the [SETUP] button.The setup menu closes.
Page 109
110Advanced Setup-ContinuedNetworkSee Network Settings on page 121.Firmware UpdateNotes: Perform the firmware update only when an announcement is posted on the Onkyo Web site. It takes about 60 minutes to complete the firmware update. When updating a firmware from a USB mass storage device, the AV controller searches the device which is con-nected earlier during power on. If two devices have been connected at the time of power on, the AV controller will search the device on the front panel.VersionThe current version of the firmware is displayed. The version is made up of the versions of the AV controller and Onkyo dock (if connected).Receiver via NET:You can update the firmware via Internet. Check the network connection before update.via USB:You can update the firmware from a USB mass storage device.You can update the AV controllers firmware. Do not shutdown the power of the AV controller while update.Universal Port via NET:You can update the firmware via Internet. Check the network connection before update.via USB:You can update the firmware from a USB mass storage device.You can update the Onkyo docks firmware. Do not shutdown the power of the AV controller while update.Note:This update shall not be performed when no dock is connected to UNIVERSAL PORT jack.
Page 116
117NET/USB-ContinuedThis section explains how to play music files on a com-puter or media server through the AV controller. See pages 119 to 120 for details on supported music servers and music file formats.For Windows Media Player 11, see Windows Media Player 11 Setup on page 118.Playing Music Files on a Server1Start your computer or media server.2Press the [NET/USB] button to select the Server screen.The NETWORK indicator lights up.Notes: When it flashes, confirm the network connection. To update the screen, press the [RETURN] button.3Use the Up and Down [ R]/[ X] buttons to select a server, and then press [ENTER].A list of items on the server appears.SearchYou can search for music by Artist, Album, or Track.Notes: The search function does not work with media servers which do not sup-port this function. Depending on the sharing settings in the media server, the AV controller may not able to access the content. Refer to the instruction manual of the media server.1 / 10ServerServer1Server2Server3Server4Server5Server6Server7Server8Server9Server101 / 8SearchRecently AddedArtistsAlbumSongsGenreYe a rRatingServer14Use the Up and Down [ R]/[ X] buttons to select an item, and then press [ENTER].A list of music files appears.5orUse the Up and Down [ R]/[ X] buttons to select a music file, and press the [ENTER] or Play [ ] button to start playback.Playback starts and the following screen appears.To return to the previous menu during playback, press the [RETURN] button.To stop playback, press the Stop [ ] button.To select the next song, press the Next [ ] button. To select the beginning of the current song, press the Previous [ ] button. To select the previous song, press the Previous [ ] button twice.To pause playback, press the [ ] but-ton. To fast forward the current song, press the [ ] button. To fast reverse the current song, press the [ ] but-ton.Note:For some sort of media server, Fast For-ward/Fast Reverse/Pause operations do not work.All MusicSong 11 / 10Song 2Song 3My favorite song 1My favorite song 2My favorite song 3My favorite song 4My favorite song 5My favorite song 6My favorite song 7My favorite song 1My favorite song 1Artist nameMy favorite album4 / 10MP3 0kbps 0kHz0:00:00ALL
Page 153
154SpecificationsAmplifier SectionVideo SectionTu n e r S e c t i o nGeneral■Video Inputs■Video Outputs■Audio Inputs■Audio Outputs■Control TerminalSpecifications and features are subject to change without notice.Input Sensitivity and Impedance200 mV/47 kΩ (LINE)2.5 mV/47 kΩ, (PHONO MM)Output Level and Impedance200 mV/470 Ω (REC OUT)Phono Overload 70 mV (MM 1 kHz 0.5 %)Frequency Response 5 Hz - 100 kHz/+1 dB - 3 dB (Direct mode)Tone Control ±10 dB, 50 Hz (BASS)±10 dB, 20 kHz (TREBLE)Signal to Noise Ratio 110 dB (LINE, IHF-A)80 dB (PHONO, IHF-A)Input Sensitivity/Output Level and Impedance1 Vp-p/75 Ω (Component and S-Video Y) 0.7 Vp-p/75 Ω (Component PB/CB, PR/CR)0.28 Vp-p/75 Ω (S-Video C)1 Vp-p/75 Ω (Composite)Component Video Frequency Response5 Hz - 100 MHz - 3 dBFM Tuning Frequency RangeNorth American: 87.5 MHz - 107.9 MHzOthers: 87.5 MHz - 108.0 MHz, RDSAM Tuning Frequency RangeNorth American: 530 kHz - 1710 kHzOthers: 522 kHz - 1611 kHzPreset Channel 40Digital Tuner (North American models only):SIRIUSPower Supply North American: AC 120 V, 60 HzOthers: AC 220 - 240 V, 50/60 HzPower Consumption North American: 1.2 AOthers: 110 WDimensions (W × H × D) 435 × 198.5 × 453.5 mm17-1/8" × 7-13/16" × 17-7/8"Weight 14.0 kg (30.9 lbs.)HDMI IN1 (DVD/BD), IN2 (VCR/DVR), IN3 (CBL/SAT), IN4 (GAME), IN5 (AUX2), IN6, IN7, AUX1 (Front)Component IN1 (DVD/BD), IN2 (CBL/SAT), IN3 (GAME)S-Video DVD/BD, VCR/DVR, CBL/SAT, GAMEComposite DVD/BD, VCR/DVR, CBL/SAT, GAME, AUX1 (Front)PC INPUT Analog RGB1HDMI OUT MAIN, OUT SUBComponent MONITOR OUT, ZONE 2 OUTS-Video MONITOR OUT, VCR/DVR (REC OUT)Composite MONITOR OUT, VCR/DVR (REC OUT), ZONE 2 OUTDigital Inputs Optical: 3 (Rear), 1 (Front)Coaxial: 3 (Rear)Analog Inputs MULTI CH, DVD/BD, VCR/DVR, CBL/SAT, GAME, AUX2, TV/TAPE, CD, PHONO, AUX1 (Front)Balance Inputs 2Multichannel Inputs 7.1Analog Outputs TV/TAPE, VCR/DVR,ZONE 2 PRE OUT, ZONE 3 PRE OUTBalance Pre Outputs FL, FR, C, SL, SR, SBL, SBR, LH/LW, RH/RW, SW1, SW2Multichannel Pre Outputs9Subwoofer Pre Outputs2Phones 1MIC YesRS232 1Ethernet 1IR Input 2IR Output 112 V Trigger Out 3USB 2 (Front and Rear)
