Onkyo PHC 5 C Service Manual
This is the 20 pages manual for Onkyo PHC 5 C Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo PHC 5 C Service Manual (Ocr-read)
Page 1
PHC-sc
PHCSSW
Rel. No.36

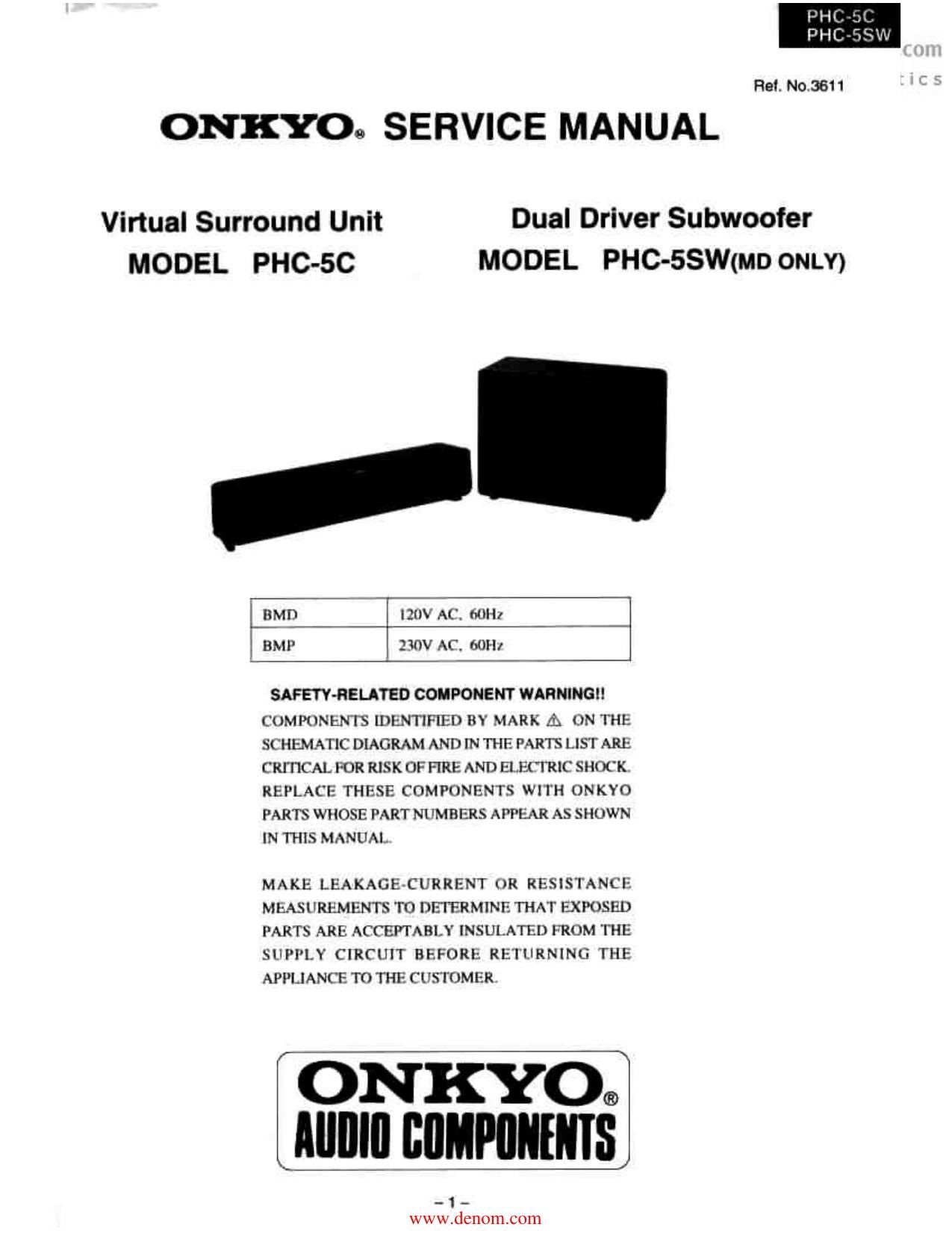

ONKYOQ SERVICE MANUAL
Virtual Surround Unit Dual Driver Subwoofer
MODEL PHC-SC MODEL PHC-SSW(MD ONLY)
EMU IZIIV AC. «on:
1 BMI :mv AC. 60!
SAFETY-RELATED COMPONENT WARNING
COMPONENTS IDENTIFIED BY MARK A ON THI:
SCHLMATIC DIAGRAM AND IN THE PARTS LIST ARE
('RI'I'ICAL FOR RISK OF FIRE AND ELECTRIC SHOCK
REPLACE THESE COMPONENTS WITH 0N KYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGECURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER
ON KYO®
mmnnnmurms
_ 1 _
www.den0m.c0m
Page 2
PHC-5C
PHC-SSW
SERVICE PROCEDURES
2
. Replacing the [use
-I:D- This symbol located near the fuse indicates that the
fuse used is fast operating type. Foe continued protection against
fire hazard, replace with same type fuset For fuse rating refer to
the marking adjacent to the symbol.
-I:I]- Ce symbole indique le fusible utlise est a rapide.
Pour une protection permanente, n'utiliser que des fusibles de
meme type. Ce damier est indique la qu le present symbole est
appose.
Safety-check out (Only U.S,A. model)
After correcting the original service problem, perform the
following safety check before releasing the set to the customer.
Connect the insulating-resistance tester between the plug of power
supply cord and the screw on the back panelr
Specifications : 3.3M ohm :10% at 500V.
SPECIFICATIONS
PHC-S SW (SUBWOOFER)
Power output 50 Watts min.RMS. into 6 ohms at
50 Hz with no more than 5% total
harmonic distortion.
Dual drive woofer 6.5"x 2 (166m x 2)
Bass reflex System
Power supply rating AC 120V, 60Hz
Dimensions 1811/16"W x 13 1/2"1-1 x 81/ "D
(457w x 34311 x 2090 mm)
Weight 24.0 lbs (10.9 kg)
PHOSC
CIRCUIT No. PART No.
F901 252159
F901 252070
PHC-SSW
CIRCUIT No. PART No.
F904 252159
NOTE:
PRC-5(CENTER UNIT)
Power output
Input sensitivity and impedance
LINE (TV,VlDEO,AUX)
OMF cone speaker size
Power supply rating
Dimensions
Weight
DESCRIPTION
ZA-UL/T-237
lA-SE-EAK
DESCRIPTION
2A-UL/T-237
: European model only
: Australian model only
Continuos Average Power Output
30 W x 2 at 6 ohms min. RMSI both
channel driven from 100 Hz to 20 kHz
no more than 5% THD.
38W x 2 at 6 ohms (EIA)
ZOOmV , 50k ohms
4"): 2 (100m x 2)
AC 120V, GOHZ
25" WxS 3/16 H x 8 1/ " D
(634W x13lH x 206D mm)
14.6 lbs (6.6 kg)
Specifications and external appearance are subject to change
without notice because of product improvements.
__ 2 _
www.den0m.c0m
