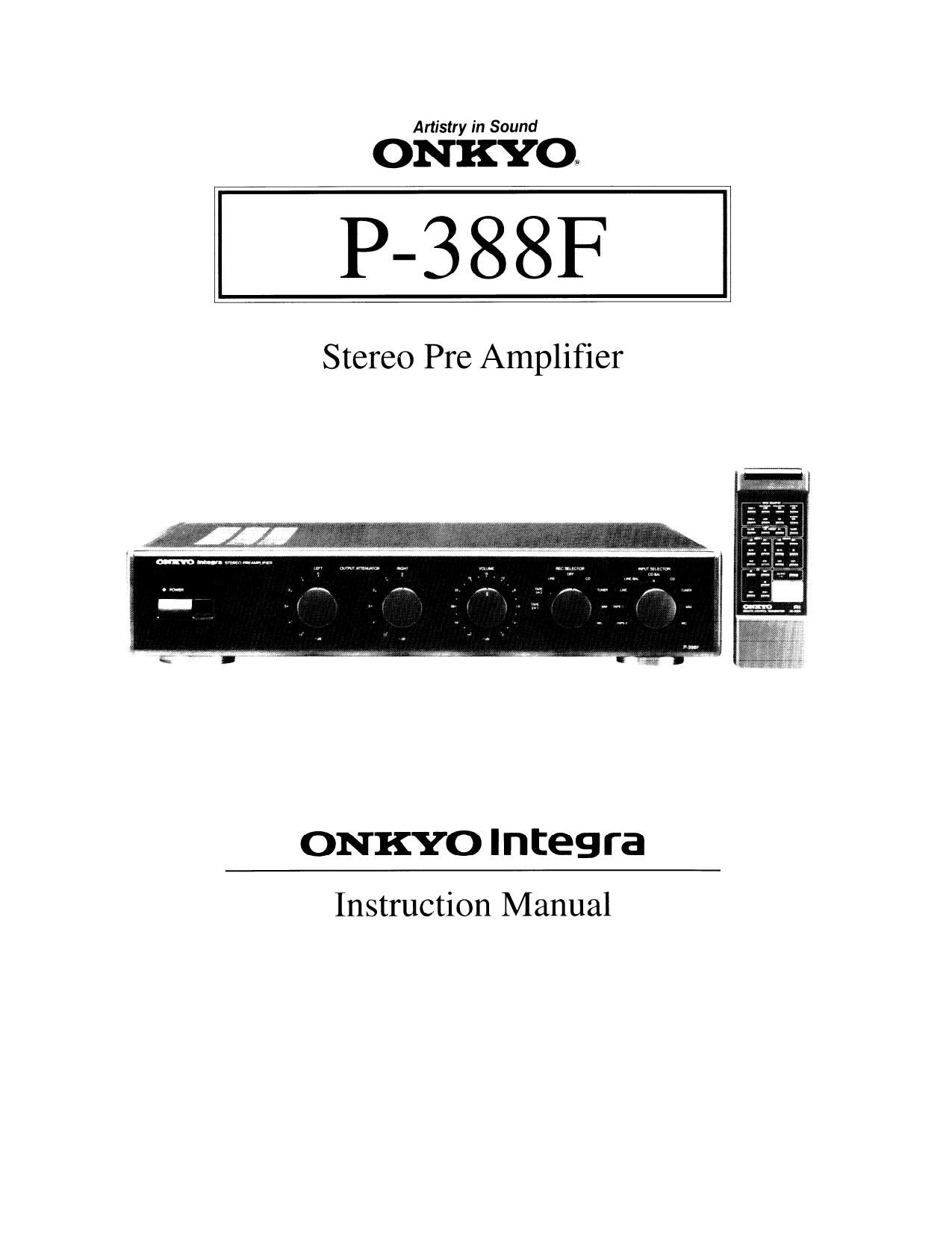

Page 1
Artistry in Sound
P-388F
Stereo Pre Amplifier
ONKYO lntegra
Instruction Manual
Page 2
0 Congratulations on your purchase of the ONKYO P-388F stereo pre amplifier,
0 Please read this manual thoroughly before making connections and turning power on,
0 Follow these instructions to obtain optimum performance and maximum listening enjoyment
from your new P-388F. Please retain this manual for future reference,
Contents
FEATURES
IMPORTANT SAFEGUARDS
PRECAUTIONS ........................................................................................................................ 3
FRONT AND REAR PANEL FACILITIES .
SYSTEM CONNECTIONS
OPERATIONS ................... ...s
USING THE REMOTE CONTROL TRANSMITTER RC-2358 .............................................. 10
TROUBLESHOOTING GUIDE ................................................................................................ 11
SPECIFICATIONS .................................................................................................................. 11
Features
Totally Balanced Amplltler Configuration
As is often the case In components deSIQned tor profeSSional use, the F-388F features a totally balanced construction, with two separate lines
to carry the non-Inverted and Inverted signal. The big advantage of this design is the elimination of noise induced during the transmission
process. plus the reduction of distortion that may arise from the amplifier itself.
Independent Ultra Low Impedance Power Supplies for the Four Principal Circuit Blocks
The left and right channel flat amplitiars, MM phono equalizer and MC phono equalizer circuit blocks are each powered by separate power
supplies, each of which has ultralow Impedance regulators to eliminate interference that could degrade signal purity.
Discrete MM and MC Phono Equalizers
The P-388F features two separate phono equalizer amps, giwng an ample performance margin lor each. Also, the number of switching points
along the Signal route are markedly reduced. CombIned, these enhancements allow the equalization characteristics of each source to be
optimized.
Simple Construction with isolated Audio Signal, Digital Control Circuit and Power Supply Blocks
The chassis is divrded into three separate compartments for the audio signal, digital control Circuit and power supply blocks. This example of
ONKYOs simple is best" design philosophy helps to prevent mutual interference and enhances Signal purity.
High Quality Input Selector
ONKYOS exclusive computer controlled mechanical selectors switch the Input signal. They are free of nonlinear distortion that conventional
relays and electronic switches are prone to, while providing the utmost in operating convenience. An ONKYO RI compatible ramote control
IS included.
Ultralow Magnetic Leakage AEI Power Transformers for Flat Amplifiers and Fhono Equalizer Amplifiers
I Mum-Position REC Selector
l XLR Type Input and Output Terminals
Motor Driven, Detented Master Volume Control Knob
Independent Left and Right Channel Output Attenuators
Machine-Crafted (not molded) Gold-Plated Pin Jacks
Circuit Boards with 70pm Thick Copper toil (twice the normal thickness)
First-Class Audio Specification Electronic Parts Throughout
CAUTION:
TO REDUCETHE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK), NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."
A-
&
RISK OF ELECTRIC SHOCK
DO NOT OPEN
. The lightningilash with arrowhead symbol, within an
equilateral triangle, is intended loalertlhe user lothe
presence of uninsulated dangerous voltage" Within
the products enclosure that may be ol sutIiCIent
magnitude to constitute a risk oi electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alen the user to the presence oi
Important operating and maintenance (serVIcingl
instructions In the literature accompanying the appli-
ance.
& .
WARNING"
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIs APPLIANCE TO RAIN OR MOISTURE .,
0 For models haVIng power cords With a polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK. MATCH WIDE
BLADE OF PLUG TO WIDE SLOT, FULLY INSERT,
' Sur les modeles dont Ia tiche est polarisee
ATTENTION: POUR EVITER LEs CHOCS ELECTRIQUES,
INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU
AU FOND.
ONKYO lntegr a
