Onkyo P 3060 R Service Manual
This is the 9 pages manual for Onkyo P 3060 R Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Page: 1 / 9
Extracted text from Onkyo P 3060 R Service Manual (Ocr-read)
Page 1

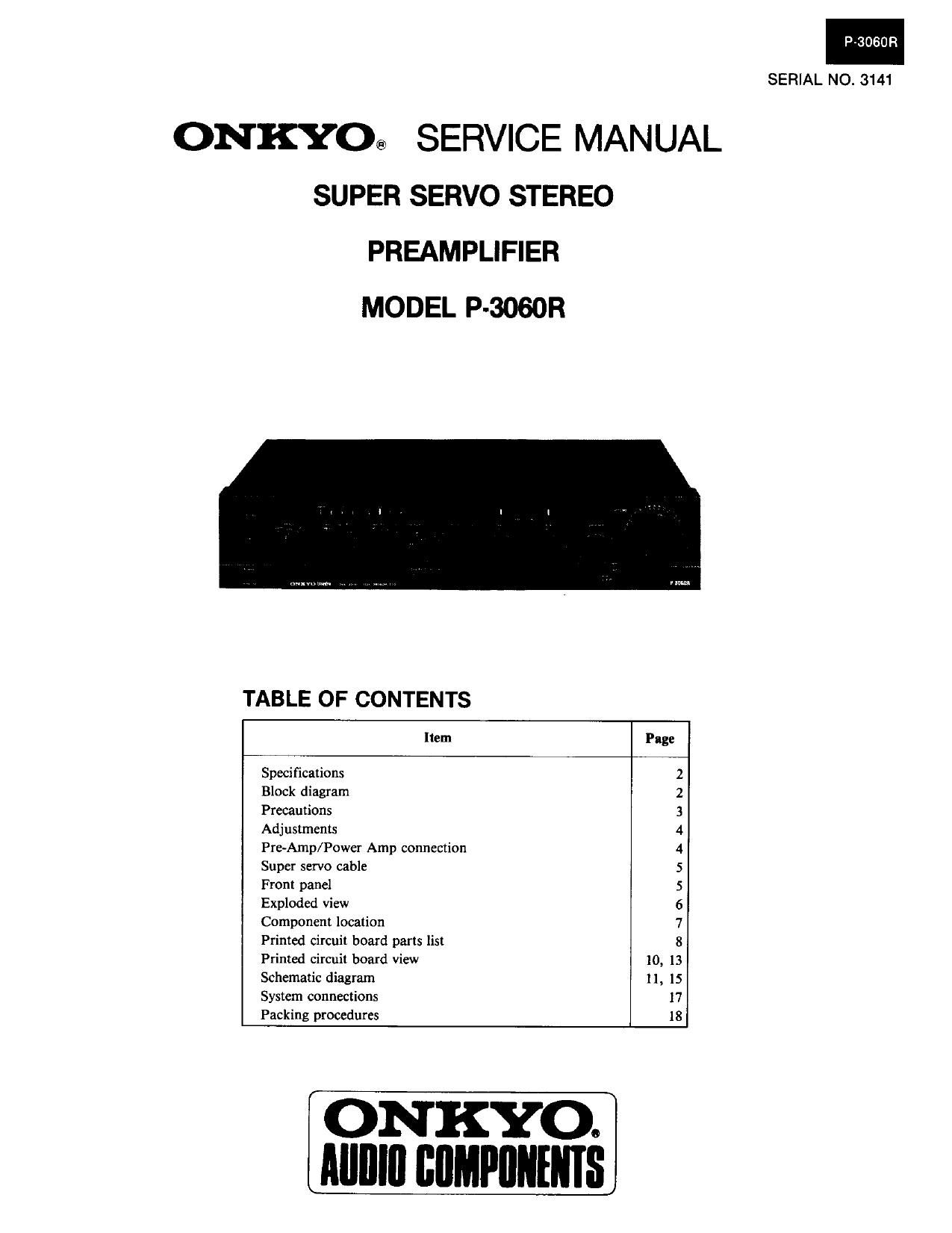

ONKYO® SERVICE MANUAL
SUPER SERVO STEREO
PREAMPLIFIER
MODEL P-3060R
TABLE OF CONTENTS
Item Page
Specifications 2
Block diagram 2
Precautions 3
Adjustments 4
Pre-Arnp/ Power Amp connection 4
Super servo cable 5
Front panel 5
Exploded view 6
Component location 7
Printed circuit board pans list 8
Printed cirwit board View ID, 13
Schematic diagram ll, 15
System connections 17
Packing procedures 18
ON KYO.
Alllllll BflMPflNflfls
P-3060H
SERIAL NO. 3141
