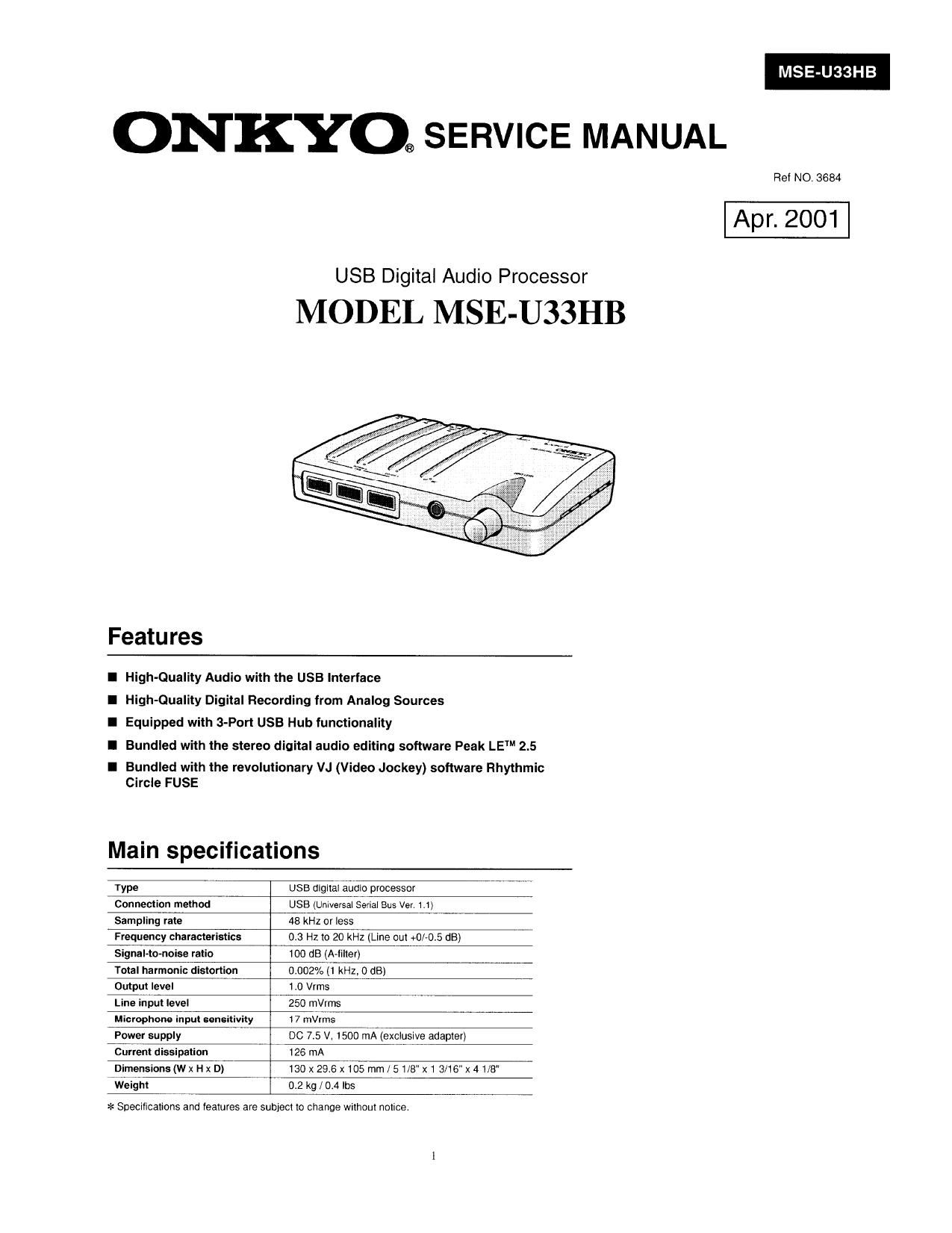

Page 1
ONKYO® SERVICE MANUAL
Rei NO. 3654
Apr. 2001
USB Digital Audio Processor
MODEL MSE-U33HB
Features
High-Quality Audio with the USB Interface
High-Quality Digital Recording from Analog Sources
Equipped with 3-Port USB Hub functionality
Bundled with the stereo digital audio editing software Peak LE| 2.5
Bundled with the revolutionary VJ (Video Jockey) software Rhythmic
Circle FUSE
Main specifications
Type USB digital audio processor
Connection method USB (Universal Senai Bus Ver. 1.1)
Sampling rate 48 kHz or less
Frequency characteristics 0.3 Hz to 20 kHz (Line out +0/-0.5 dB)
Signal-to-noise ratio 100 dB (A-iilter)
Total harmonic distortion 0,002% (1 kHz, 0 dB)
Output level 1.0 Vrms
Line input level 250 mVrms
Microphone input sensitivity I7 mVrms
Power supply DC 75 V, 1500 mA (exclusive adapter)
Current dissipation 126 mA
DImenslons (W X H X D) '30 x 29.6 X 105 mm / 5 1/8" X 1 3/16" x 41/8"
Weight 0.2 kg / 0.4 lbs
* Specifications and features are subject to change without notice
