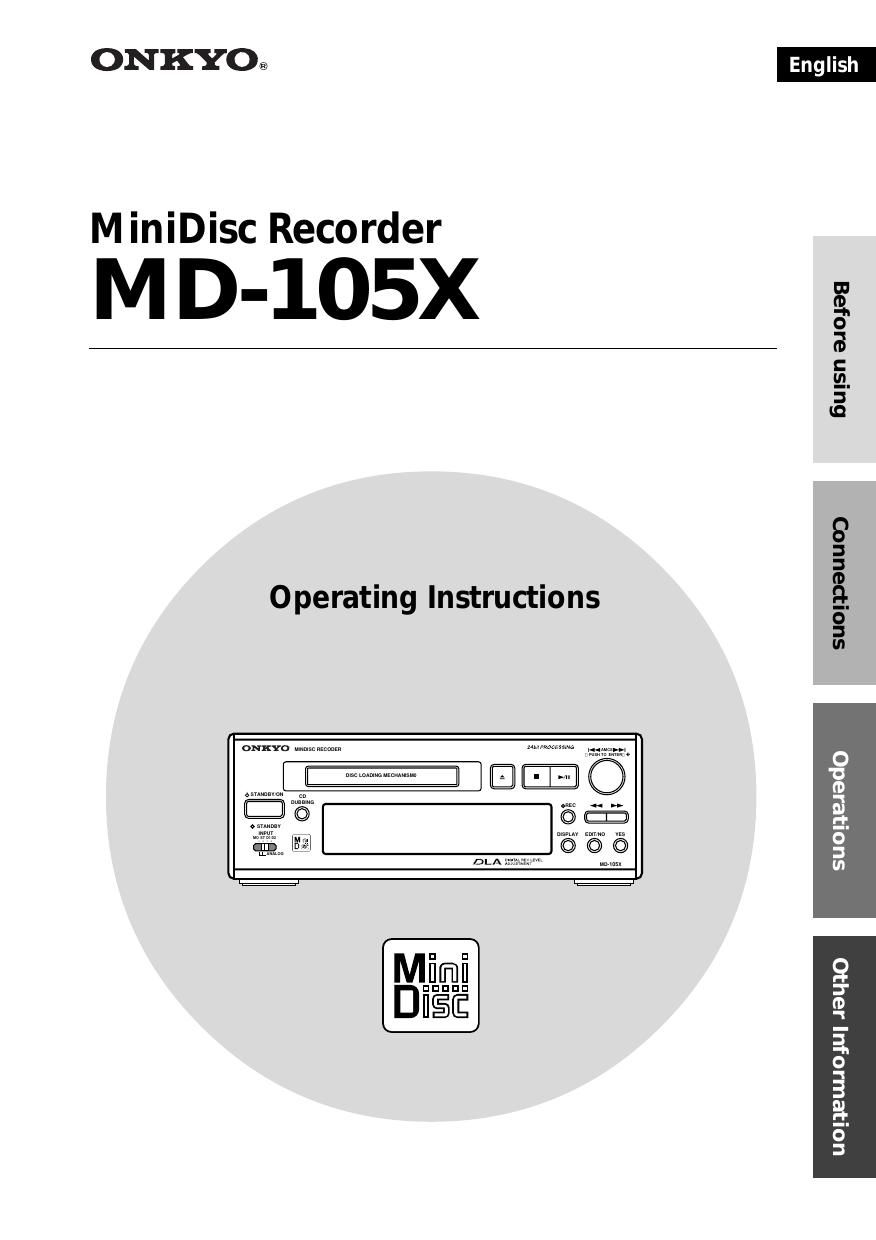

Page 1
2 Thank you for purchasing ... Before using Main Features Thank you for purchasing the ONKYO MD-105X MD Recorder. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain the optimum performance and listening enjoyment from your new MD-105X. Please retain this manual for future reference. ¥ 24-Bit A/D and D/A Converters ¥ Digital Rec Level Adjustment ¥ Rec Volume Control for Analog and Digital Inputs ¥ Album Dubbing and Fade Out Control ¥ Unique "Dub It" Feature ¥ Monaural Recording ¥ One-Touch Dubbing ¥ Signal Synchro Recording Memory Preservation This unit does not require memory preservation batteries. A built-in memory power back-up sys- tem preserves the contents of the memory dur- ing power failures and even when the unit is unplugged. The unit must be plugged-in in or- der to charge the back-up system. The memory preservation period after the unit has been unplugged varies depending on cli- mate and placement of the unit. On the aver- age, memory contents are protected over a pe- riod of a few weeks after the last time the unit was unplugged. This period is shorter when the unit is exposed to a highly humid climate. Declaration of Conformity We, ONKYO EUROPE ELECTRONICS GmbH INDUSTRIESTRASSE 20 82110 GERMERING, GERMANY GERMERING, GERMANY ONKYO EUROPE ELECTRONICS GmbH K.OTSU declare in own responsibility, that the ONKYO product describedin this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3 (or EN60555-2, -3) U.S. and foreign patents licensed from Dolby Laboratories Licensing Corporation. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated Òdangerous voltageÓ within the productÕs enclosure that may be of sufficient mag- nitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNINGRISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR AVIS
Page 2
3 Before Using ConnectionsOther Information Operations 1.Read Instructions Ð All the safety and operating instructions should be read before the appliance is operated. 2.Retain Instructions Ð The safety and operating instructions should be retained for future reference. 3.Heed Warnings Ð All warnings on the appliance and in the operating instructions should be adhered to. 4.Follow Instructions Ð All operating and use instructions should be followed. 5.Water and Moisture Ð The appliance should not be used near water Ð for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like. 6.Carts and Stands Ð The appliance should be used only with a cart or stand that is recommended by the manufacturer. 6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn. 7.Wall or Ceiling Mounting Ð The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 8.Ventilation Ð The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or if placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings, there should be free space of at least 5 cm (2 in.) and an opening behind the appliance. 9.Heat Ð The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.10.Power Sources ÐThe appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. 11.Polarization Ð If the appliance is provided with a polarized plug having one blade wider than the other, please read the following information: The polarization of the plug is a safety feature. The polarized plug will only fit the outlet one way. If the plug does not fit fully into the outlet, try reversing it. If there is still trouble, the user should seek the services of a qualified electrician. Under no circumstances should the user attempt to defeat the polarization of the plug. 12.Power-Cord Protection Ð Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, especially near plugs, convenience receptacles, and the point where they exit from the appliance. 13.Cleaning Ð The appliance should be cleaned only as recommended by the manufacturer. 14.Nonuse Periods Ð The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time. 15.Object and Liquid Entry Ð Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. 16.Damage Requiring Service Ð The appliance should be serviced by qualified service personnel when: A. The power-supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance; or E. The appliance has been dropped, or the enclosure damaged. 17.Servicing Ð The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel. PORTABLE CART WARNING S3125A Important Safeguards
