Onkyo MBS 1 Service Manual

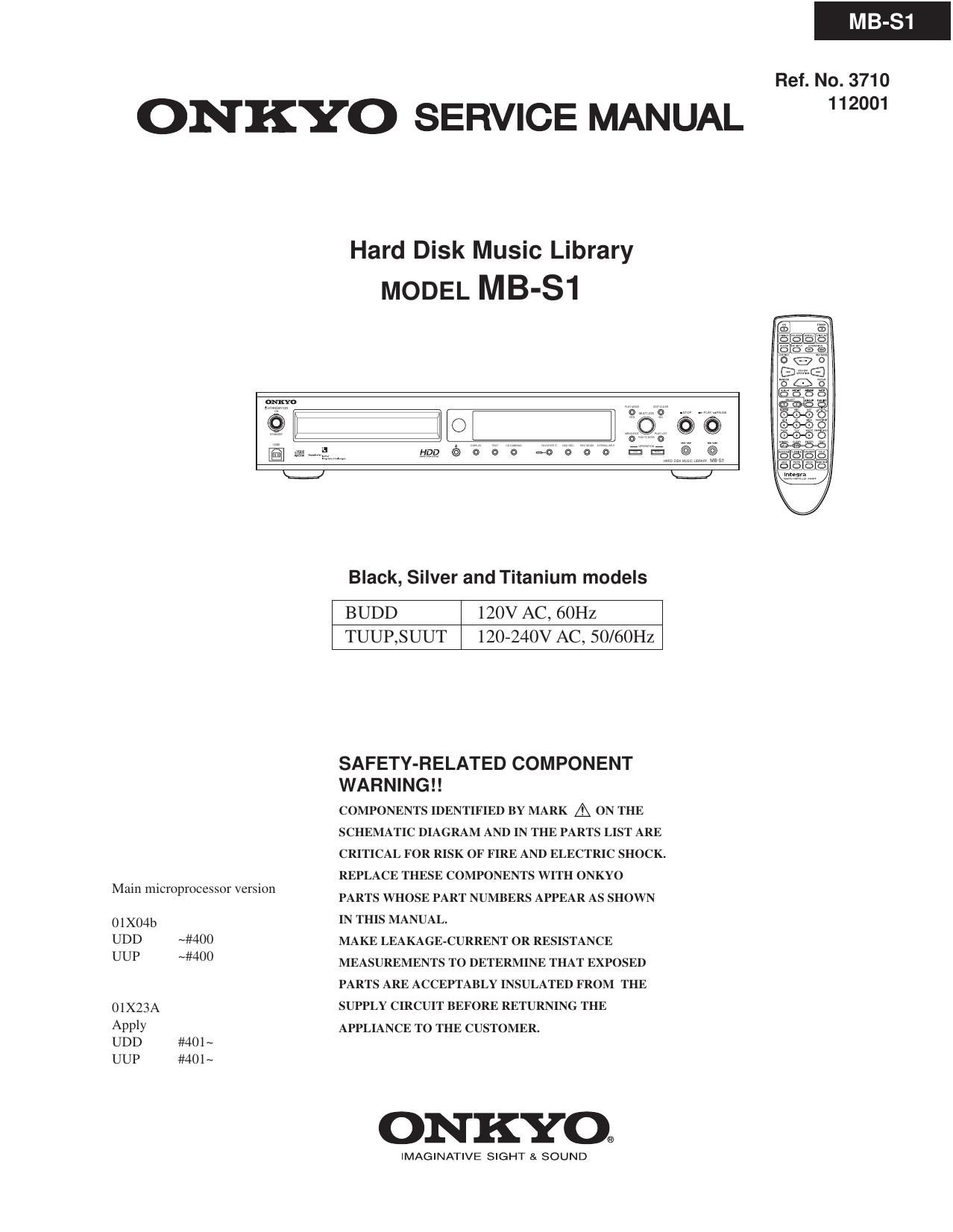

Page 1

Ref. No. 3710

ONKYO SERVICE MANUAL 2°

Hard Disk Music Library
MODEL MB-S1

Black, Silver and Titanium models

BUDD 120V AC, 60Hz
TUUP,SUUT 120-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO

Main microprocessor version
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

01X04b IN THIS MANUAL.
UDD ~#400 MAKE LEAKAGE-CURRENT ()R RESISTANCE
UUP 49400

MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE

01x23 A SUPPLY CIRCUIT BEFORE RETURNING THE
Apply APPLIANCE TO THE CUSTOMER.

UDD #401--

UUP #401~

ONKYO®

IMAGINATIVE SIGHT & SOUND

Page 2

Specifications

CD-ROM Drive Unit

Hard Disk Drive Unit

D/A Converter
AID Converter
Connections

Frequency Response
Playback Harmonic distortion
Playback Dynamic range
Playback Signal to noise ratio
Recording Harmonic distortion
Recording Dynamic range
Recording Signal to Noise ratio
Channel Separation
Wow and Flutter
Output Level
Power Supply Rating &

Power Consumption
Dimension (W.H.D,)
Weight

ATA Packet Interface (specified in SPF-8020). (E-IDE)
Industry Standard 35" Half Height Form Factor

AT Attachment 5 (ATA-5)

Industry Standard 5125" Half Height Form Factor.
406B

Single bit (Crystal CS4341, 24bit/96kHz)

Single bit (Crystal CSSSL32A, 24bit/96kI-Iz)

2 Analog Output (stereo)

1 Analog Input (stereo)

2 Digital Input (optical)/(coaxial)

1 Digital Output (optical) (with Audio CD Playback only)
1 USB (Type B)

1 RS-232C (Dsub-9pin)

5H2 - 20 kHz

0.007% (at lkHz, 0dB)

90 dB

90 dB

LPCM: 01007% (at 1kHz, OdB), MP3: 0.018% (at 1kl-Iz, 0dB)
90dB

90dB

90dB (playback)

Below threshold of measurability

2.0 volts rimis.

AC120V, 60Hz, 27W

435 x 81x 359 (17-1/8" X 33/16" x 14-1/8")
5.0kg, 11.0 lbs

Specifications and features are subject to change without notice.
