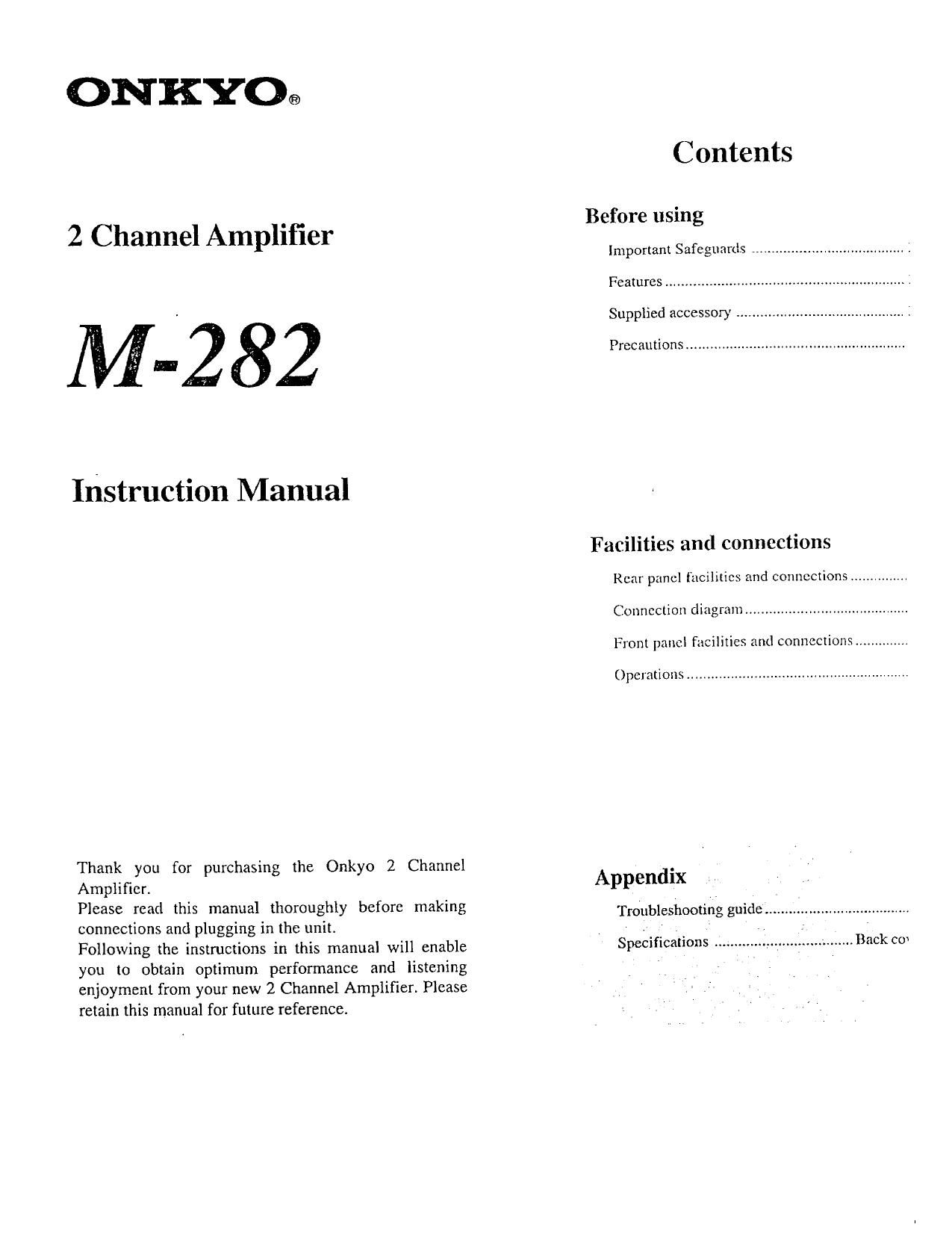

ONKYO®

2 Channel Amplifier

M9282

Instruction Manual

Thank you for purchasing the Onkyo 2 Channel
Amplifier.

Please read this manual thoroughly before making
connections and plugging in the unit.

Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new 2 Channel Amplifier. Please
retain this manual for future reference.

Contents

Before using

important Safeguards .....
Features ............................................................. ,
Supplied accessory ........................................... 1

Precautions ........................................................

Facilities and connections
Rum panel facilities and contractions
Commotion diagram .........................................
Front panel facilities and connections ..............

Operations

Appendix

Troubleshooting guide

Specifications ............. , ................ Back cot

Page 2

Features

Precautions

WIDE RANGE AMPLIFIER TECHNOLOGY (WRAT)
\VRAT virtually eliminates the adverse effects of counter-
electromotive force by:

l) applying an uncommonly low amount of NFB (negative feed,
back),

2) using carefully selected, high-tolerance, wide range parts in all
critical sections, and

3) incorporating innovative circuit topology based upon decades

of highend amplifier design experience ._ the final result is flat
response beyond 100 kHz.

AUTO POWER ON/OFI" FUNCTION

You can turn on and offthc M-282 via a signal input to the AUDIO
IN jacks or 12V TRIGGER IN jack,

AUDIO IN/OU'I LINK FUNCTION

The signal inputs from the AUDIO IN jacks are output from the
AUDIO OUTjacks. When used as a 2 channel amplifier in a multi
room configuration. you can connect several M-282s to enjoy the
same source in several rooms.

Supplied accessory

Check that the following accessory is supplied with the M-282.

Power cord x 1

I. Warranty Claim
You can find the serial number on the rear panel of this unit, In
case of warranty claim, please report this number.

2. Recording Copyright
Recording of copyrighted material for other than personal use is
illegal without permission of the copyright holder.

3. AC Fuse

The {use is located inside the chassis and is not user-serviceable, lfthe
power does not come on, contact you: ()nkyo authorized service sta-
tion.

4. Care

From time to time you should wipe the front and rear panels and
the cahtnet with a soft cloth. For heavier dirt, dampen a soft cloth
in a weak solution of mild detergent and water. wring it out dry,
and wipe off the dirt, Following this, dry immediately with a clean
cloth. Do not use rough material, thinner, alcohol or other chemi-
cal solvents or cloths since these could damage the finish or re»
move the panel lettering.

5. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME,
READ THE FOLLOWINC SECTION CAREFULLY.

The voltage of the available power supply differs according to
country or region. Be sure that the power supply voltage of the
area where this unit will be used meets the required voltage (c.g.,
AC 120 V, 60 Hz) written on the rear panel.

For Canadian models

For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDIi BLADE OI: ILUG 10 WIDE SLOT. FULLY INSERT.

Modelc pour les Canadien

Stir los rnotleles dont la fiche est polarisée:

ATTENTION: POUR EVITER LES CHOCS ELECTRIQUES
INTRODUIRE LA LAME LA PLUS LARGE or: LA FICH
DANS LA BORNE CORRESPONDANTE DE LA PRISE E'.
IOUSSI-IR JUSQUAU FOND.
