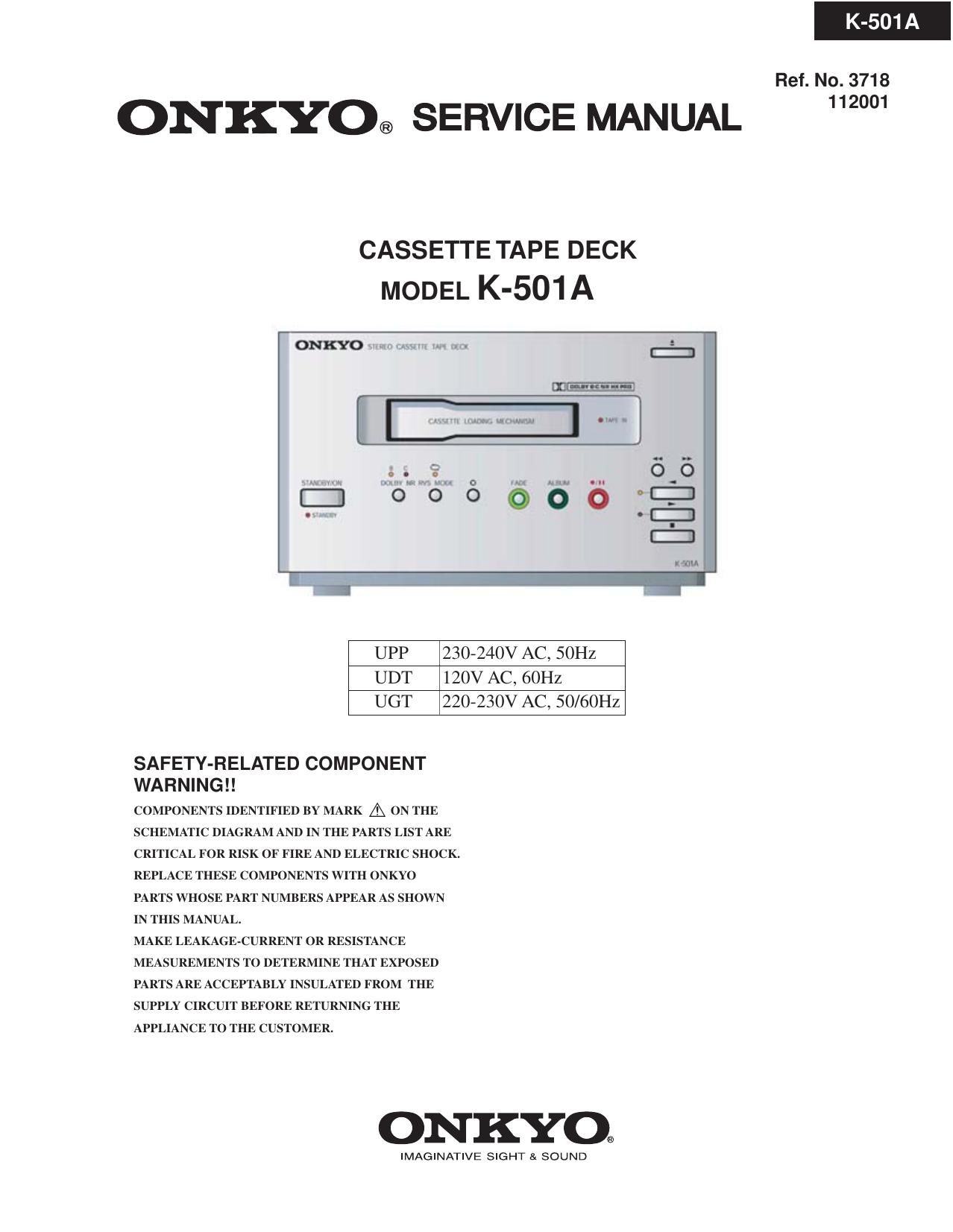

Page 1
Ref. No. 3718
ONKYO® SERVICE MANUAL 2°
CASSETI'E TAPE DECK
MODEL K-501 A
ONKYO J I71MAA\
UPP 230-240V AC, 50Hz
N
SAFETY-RELATED COMPONENT
COMPONENTS IDENTIFIED BY MARK A ON THE
MAKE LEAKAGE-CURRENT OR RESISTANCE
ONKYO®
IMAGINATIVE SIGHT & SOUND
UDT 120V AC, 60Hz
UGT 220-230V AC, 50/60H
WARNING !!
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
