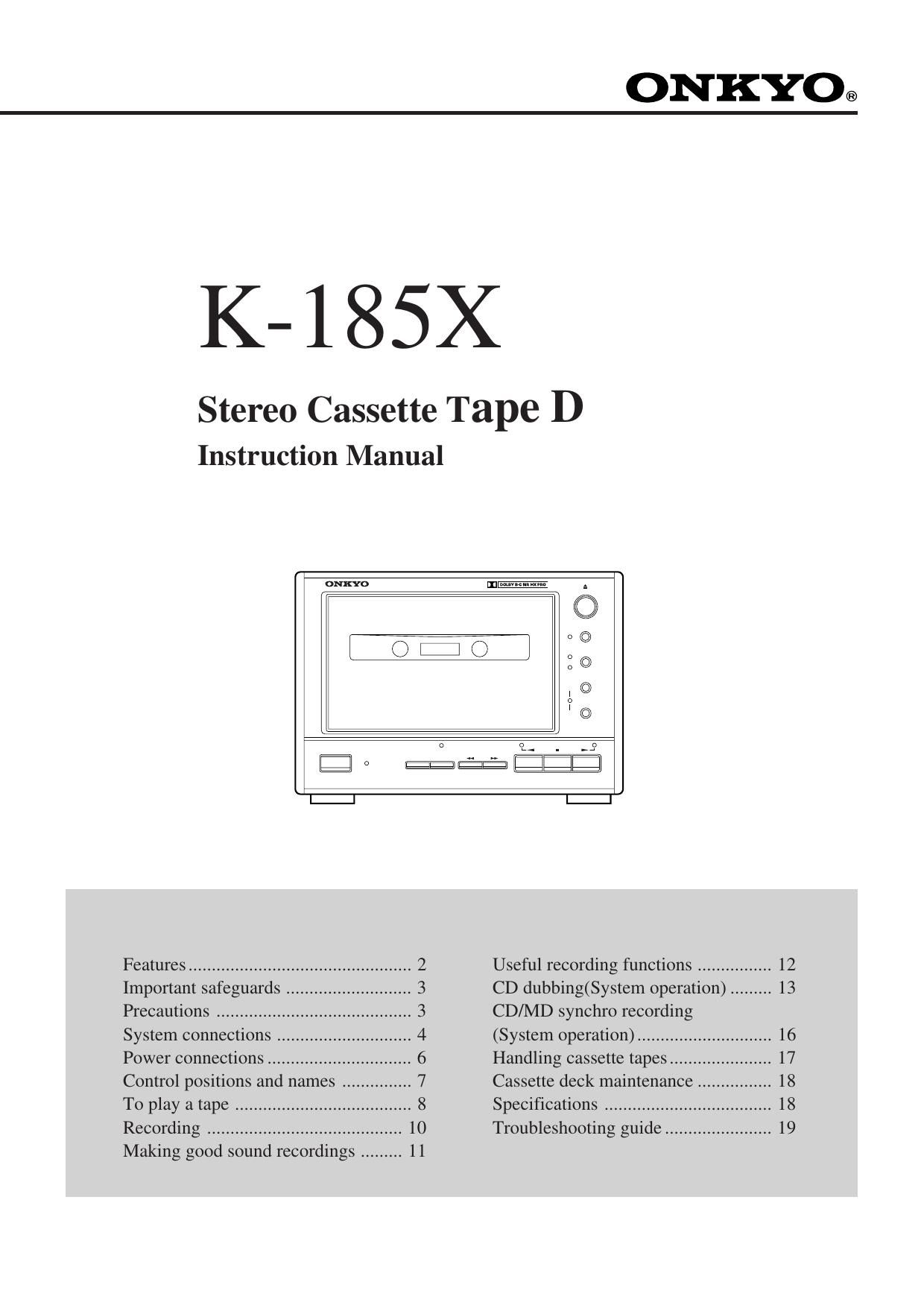

Onkyo K 185 X Owners Manual
This is the 20 pages manual for Onkyo K 185 X Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo K 185 X Owners Manual (Ocr-read)
Page 1
2Thank you for your purchase of the ONKYO K-185X Cassette Tape Deck. Please read this manual thoroughly before making connections and plugging in the AC power cord. Following the instructions in this manual will enable you to obtain optimum performance and maximum listening enjoyment from your new K-185X. Please retain this manual for future reference.FeatureseAdvanced Two-Mode CD Dubbing with Peak Search When connected to Onkyo's CR-185X/CHR-185X CD Receiver, one touch of either the Album or Fade buttons not only starts CD-to-tape dubbing, it searches out the highest peaks on a CD and sets the ideal recording level. During Album dubbing, sophisticated circuitry checks the length of the last song against the remaining tape. If the entire song won't fit, recording will start from the song's beginning on side B. With Fade dubbing, the last song will fade out on side A and start again on side B. eDolby HX Pro Headroom Extension Dolby HX Pro extends the dynamic headroom to capture the wider musical dynamics of CDs and other digital sources. It provides noticeably cleaner reproduction of those crucial higher frequencies by improving the tapes's ability to capture high-level signals without saturation. Another plus is the tapes you record with Dolby HX Pro can be played back on decks without Dolby HX Pro, for improved sound perfor- mance. eDolby B/C Noise Reduction You'll have no trouble making life-like, super-quiet record- ings. Dolby B removes high-frequency hiss, while Dolby C works over a wider range for cleaner, more faithful dubs. eAutomatic Recording-Level Control eOne-Touch CD Synchronized Recording eAuto Reverse eRugged Transport System eFull-Logic Controls eOne-Touch On and Play ez (Remote Interactive) System Compatible¥ The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated Òdangerous voltageÓ within the productÕs enclosure that may be of sufficient magni- tude to constitute a risk of electric shock to persons. ¥ The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.WARNINGÒTO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.ÓCAUTIONÒTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.ÓDolby noise reduction and HX Pro headroom extension manufactured under license from Dolby Laboratories Licens- ing Corporation. HX Pro originated by Bang and Olufsen. ÒDolby,Ó the double-D symbol and ÒHX PROÓ are trademarks of Dolby Laboratories Licensing Corporation.FOR CANADIAN MODEL: (POUR LE MODELE CANADIEN) ¥ For models having a power cord with a polarized plugCAUTION:TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. ¥ Sur les modles dont la fiche est polarisŽe.ATTENTION:POUR ƒVITER LES CHOCS ƒLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQÕAU FOND.ATTENTION FOR BRITISH MODEL Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.IMPORTANTThe wires in the mains lead are coloured in accordance with the following code: Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:The wire which is coloured BLUE must be connected to the terminal in the plug which is marked with the letter N or coloured BLACK.The wire which is coloured BROWN must be connected to the terminal in the plug which is marked with the letter L or coloured RED.IMPORTANTA 5 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME, THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS IN- SERTED INTO ANY 13 AMP SOCKET. If in any doubt, please consult a qualified electrician.z cable (1) Audio connection cable (2) Supplied accessoryDeclaration of ConformityWe, ONKYO EUROPE ELECTRONICS GmbH INDUSTRIESTRASSE 20 82110 GERMERING, GERMANY declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN55013, EN55020, EN61000-3-2, -3-3 and EN60065 GERMERING, GERMANY ONKYO EUROPE ELECTRONICS GmbHK.OTSUWARNINGRISK OF ELECTRIC SHOCK DO NOT OPENRISQUE DE CHOC ELECTRIQUE NE PAS OUVRIRAVIS
Page 2
31. Warranty Claim You can find the serial number on the rear panel of the unit. In case of warranty claim, please report this number. 2. Recording Copyright Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder. 3. Deck Location ¥ Do not use or leave in direct sunlight or in other places subject to high temperature and humidity. The unit should also not be left in potentially hot places such as near heating appliances. Excessive heat and moisture can lead to internal damage and serious malfunctions (this also applies to cassette tapes). The recommended ambient temperature range is 5ûC to 35ûC. ¥ Avoid damp and dusty places and locations prone to vibra- tions. ¥ Be extremely careful with the recording/playback heads. Clean and demagnetize them regularly, but under no circum- stances should magnets or other metals be used anywhere near the heads. ¥ This unit is extremely sensitive to magnetic fields, so do not use near large speakers or other devices which generate magnetic fields. ¥ Hum may even be induced by magnetic flux leakage from the power transformer in certain amplifiers. Therefore, this unit should also be kept clear of the amplifier. ¥ Do not remove the cabinet case. If any of the internal parts are handled, there is a considerable danger of electric shock. 4. Cassettes to Avoid: ¥ Cassettes with poorly formed cases that rattle during rewind and fast forward. ¥ Low cost cassettes with no guide roller or pressure pad spring should never be used for stereo. ¥ C-120 cassettes Ñ because the tape and the coating are extremely thin, distortion levels are high. Also, even a slight stretching of the tape will make it susceptible to being caught up in the pinch roller and capstan. ¥ Endless tapes, if used for a long period of time, can overheat. 5. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CARE- FULLY. ¥ The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC230V 50Hz or AC120V 60Hz) written on the rear panel. ¥ Voltage Selector (Rear Panel) Worldwide models are equipped with a voltage selector to conform with local power supplies. Be sure to set this switch to match the power supply in your area before plugging in the unit. Models without a voltage selector can only be used in areas where the power supply voltage is the same as that of the unit.PrecautionsImportant safeguardsPORTABLE CART WARNINGS3125A1. Read Instructions Ñ All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions Ñ The safety and operating instructions should be retained for future reference. 3. Heed Warnings Ñ All warnings on the appliance and in the operating instructions should be adhered to. 4. Follow Instructions Ñ All operating and use instructions should be followed. 5. Water and Moisture Ñ The appliance should not be used near water Ñ for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like. 6. Carts and Stands Ñ The appliance should be used only with a cart or stand that is recommended by the manufacturer. 6A.An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surface may cause the appliance and cart combination to overturn. 7. Wall or Ceiling Mounting Ñ The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer. 8. Ventilation Ð The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or if placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings, there should be free space of at least 20 cm (8 in.) and open up behind the appliance. 9. Heat Ñ The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. 10. Power Sources Ñ The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance. 11. Polarization Ñ If the appliance is provided with a polarized plug having one blade wider than the other, please read the following information: The polarization of the plug is a safety feature. The polarized plug will only fit the outlet one way. If the plug does not fit fully into the outlet, try reversing it. If there is still trouble, the user should seek the services of a qualified electrician. Under no circumstances should the user attempt to defeat the polarization of the plug. 12. Power-Cord Protection Ñ Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the cords at plugs, convenience receptacles, and the point where they exit from the appliance. 13. Cleaning Ñ The appliance should be cleaned only as recommended by the manufacturer. 14. Nonuse Periods Ñ The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time. 15. Object and Liquid Entry Ñ Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings. 16. Damage Requiring Service Ñ The appliance should be serviced by qualified service personnel when: A. The power-supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a marked change in performance; or E. The appliance has been dropped, or the enclosure damaged. 17. Servicing Ñ The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.
