Onkyo HTRC 630 B Service Manual

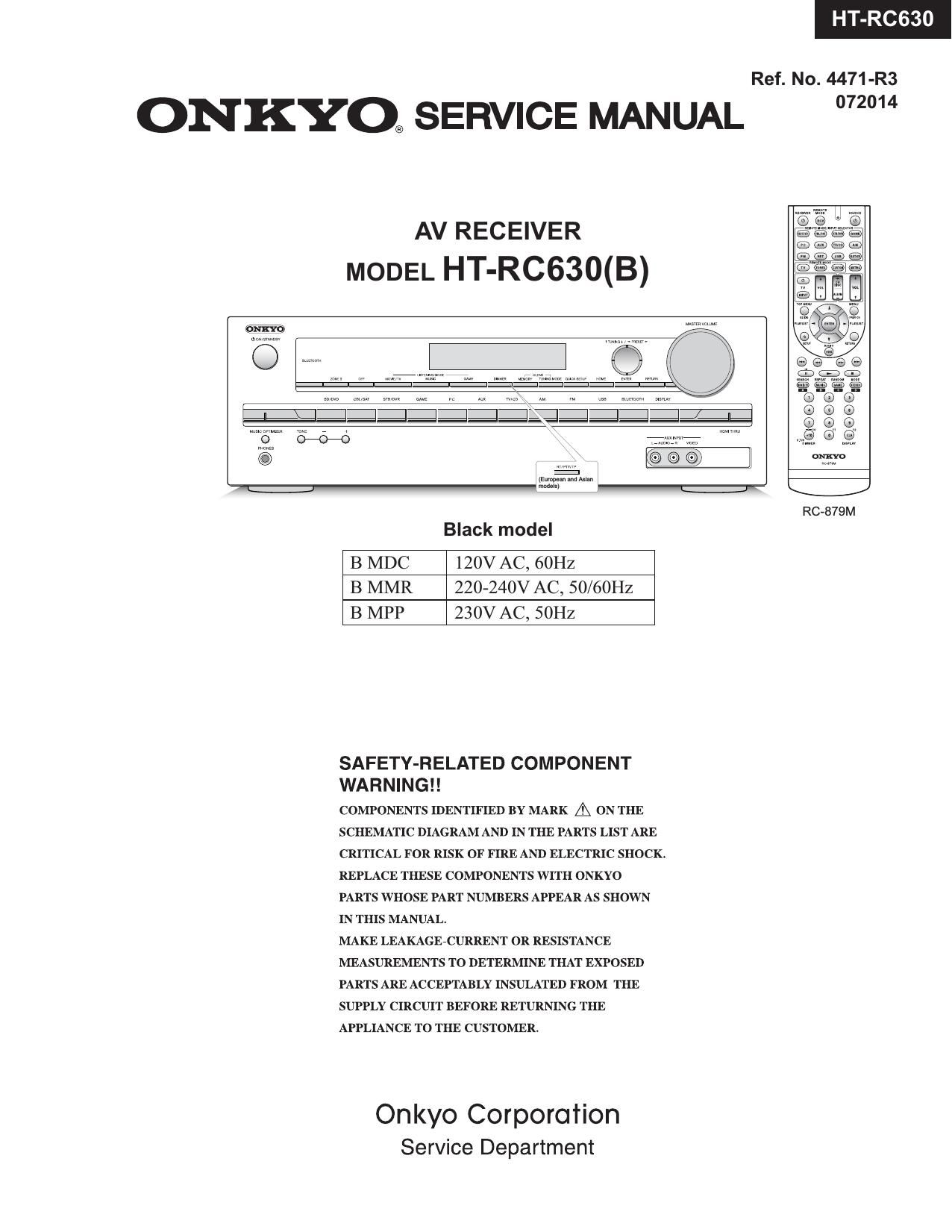

Page 1

HT-RC630

Ref. No. 4471-R3

ONKYO® SERVICE MANUAL 2°

AV RECEIVER
MODEL HT-RC630(B)

Black model

B MDC 120V AC, 60Hz
B MMR 220-240V AC, 50/60Hz
B MPP 230V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Onkyo Corporation
Service Department

Page 2

DEBUG MODE-1

AUDIO DEBUG MODE-1/5

TX-SR333/ HT-R393/ HT-RC630

The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble,

To set in Debug mode

1. Press twice the ON/ STANDBY key while pressing the DISPLAY key.

e.g.

M1.03/14307ALN*

The version number of Microprocessor is displayed
only for 3 seconds

2 Press + (TONE) button while the version number of microprocessor is displayed.

e.g.

N1 02/14210ALA _ The version number of DSP is displayed

3. Press DISPLAY button while the version number of DSP is displayed.

e.g.

0A0002. :00

Step-1

4. Proceed to the next step by pressing the DISPLAY key.

ANA:o:NON:C:
4v

1:ANA 048k048k
4v

2/00: 2.0:3/4
4v

2:0:PCM :PCM
4v

00:X:F:OFF

4v

SPO0F*00F00409
4v

48 482568TB
4v

L :0000 0000

v;

S W :0000 0000

4v

Step-2

Step-3

Step-4

Step-5

Step-6

Step-7

Step-B

Exit

only for 3 seconds

AUDIO dubug mode
The status of DSP and DIR etc
will be displayed.

Page 16

T R333/ HT-R393/ HT-RC630

OPERATION CHECK-3

CONFIRMATION OF VOLTAGE-DETECTION PROTECTORS.

Don't connect load nor short speaker terminals.

1. Do the following operation.
1-1. set the volume level to 25.
1-2. [TV/CD] + [ON/STANDBY] a [BD/DVD]
1-3. now; +]
to the following test mode.
TEST 1-01
2. AVR automatically tests in the following test sequence. And if it is all OK, Wi-Fi test will begin.
Test sequence
(FL+) ~> (FR-) a (0+) a (SL-) 4, (SR+)4> (SW+) SW+ : HT-R393 only
3. If FL tube displays Wi-Fi check mode then voltage-detection protectors test will be completed.

CONFIRMATION OF UPDATE ROUTE.
1. Do the following operation.
1-1. set the volume level to 25.
1-2. [TV/CD] + [ON/STANDBY] a [BD/DVD]

1-3. new; +1
to the following test mode.
TEST 1-01

2.0nce the above mentioned test mode is entered, voltage-detection protectors function is checked automatically first, then update
route check will begin.
If the result of update route check is no problem then Wi-Fi check will begin. If the result is NG then NG message will be shown on
the FL tube.

3. If FL tube displays Wi-Fi check mode then voltage-detection protectors test and update route check are passed.

CONFIRMATION OF Wi-Fi CONNECTION

1. Setting Wi-Fi routers.
2. Do the following operation.

2-1. set the volume level to 25.

2-2. [TV/CD] + [ON/STANDBY] 4» [BD/DVD]

2-3. [TONE +1

to the following test mode.

TEST 1-01

3. Once the above mentioned test mode is entered, voltage-detection protectors function is checked automatically first, then update
route check will begin and then Wi-Fi check will begin.
In Wi-Fi check mode, it connects an access point automatically. Wi-Fi LED flashes during connection.
4. If connection is completed and IP address is successfully acquired, Wi-Fi LED turning lights off and the value of FiSSI to an access
point is displayed in dBm.
If the connection is failed, NG is displayed.

e. . _ , u
g 01-2 51570, M Max value of RSSI is -45dB.(Display of FL is -45d.)
SSID No FiSSl(dbm) Time Counter

If the connection is failed, exit the idling timer mode by pressing the TV/CD button and please try again from step 1.
In case value of RSSI level isn't showed on the FL tube at all past 4 minutes in this timer mode, judge as NG.

COMFIRMATION OF USB
1. Connect USB memory or USB storage to AVFt front USB port.

2. Change selector to USB. After FL tube showed USB device name, press Enter key twice, then confirm signals form front
L/Ft or Headphone.
Change volume as necessary.

Page 72

31/38 PAGE

3R3048 CHIP TYPE CARBON RESISTOR RN72K1J-221JE 1 435032214R1
3R3049 CHIP TYPE CARBON RESISTOR RN72K1J-560JE 1 435035604R1
3R3050 CHIP TYPE CARBON RESISTOR RN72K1J-560JE 1 435035604R1
3R3051 CHIP TYPE CARBON RESISTOR RN72K1J-560JE 1 435035604R1
3R3054 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3056 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
3R3060 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3061 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3062 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3063 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3064 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3065 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3066 CHIP TYPE CARBON RESISTOR RN72K1J-102JE 1 435031024R1
3R3101 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3103 CHIP TYPE CARBON RESISTOR RN72K1J-000JE 1 435030004R1
1R3108 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3110 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3111 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3113 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3115 CHIP TYPE CARBON RESISTOR RN72K1J-332JE 1 435033324R1
3R3117 CHIP TYPE CARBON RESISTOR RN72K1J-332JE 1 435033324R1
3R3119 CHIP TYPE CARBON RESISTOR RN72K1J-332JE 1 435033324R1
3R312 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3122 CHIP TYPE CARBON RESISTOR RN72K1J-102JE 1 435031024R1
1R3123 CHIP TYPE CERAMIC CAPACITOR CK725F1E-104Z1 1 332161040R1
3R3124 CHIP TYPE CARBON RESISTOR RN72K1J-331JE 1 435033314R1
3R3125 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3126 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3127 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3129 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R313 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3130 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3131 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
1R3134 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3135 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3136 CHIP TYPE CARBON RESISTOR RN72K1J-000JE 1 435030004R1
3R3137 CHIP TYPE CARBON RESISTOR RN72K1J-000JE 1 435030004R1
3R3139 CHIP TYPE CARBON RESISTOR RN72K1J-101JE 1 435031014R1
3R314 CHIP TYPE CARBON RESISTOR RN72K1J-151JE 1 435031514R1
3R3141 CHIP TYPE CARBON RESISTOR RN72K1J-000JE 1 435030004R1
3R3143 CHIP TYPE CARBON RESISTOR RN72K1J-392JE 1 435033924R1
3R3144 CHIP TYPE CARBON RESISTOR RN72K1J-101JE 1 435031014R1
1R3145 CHIP TYPE CARBON RESISTOR RN72K1J-392JE 1 435033924R1
3R3146 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
1R3148 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
3R3149 CHIP TYPE CARBON RESISTOR RN72K1J-102JE 1 435031024R1
3R315 CHIP TYPE CARBON RESISTOR RN72K1J-151JE 1 435031514R1
3R3150 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
3R3154 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
3R3155 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
3R3156 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
1R3157 CHIP TYPE CARBON RESISTOR RN72K1J-000JE 1 435030004R1
3R316 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
3R3162 CHIP TYPE CARBON RESISTOR RN72K1J-390JE 1 435033904R1
3R3163 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
3R317 CHIP TYPE CARBON RESISTOR RN72K1J-331JE 1 435033314R1
3R3188 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3200 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3204 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3205 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
1R3207 CHIP TYPE CARBON RESISTOR RN72K1J-103JE 1 435031034R1
3R3208 CHIP TYPE CARBON RESISTOR RN72K1J-151JE 1 435031514R1
