Onkyo HTRC 360 Service Manual
This is the 136 pages manual for Onkyo HTRC 360 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTRC 360 Service Manual (Ocr-read)
Page 1

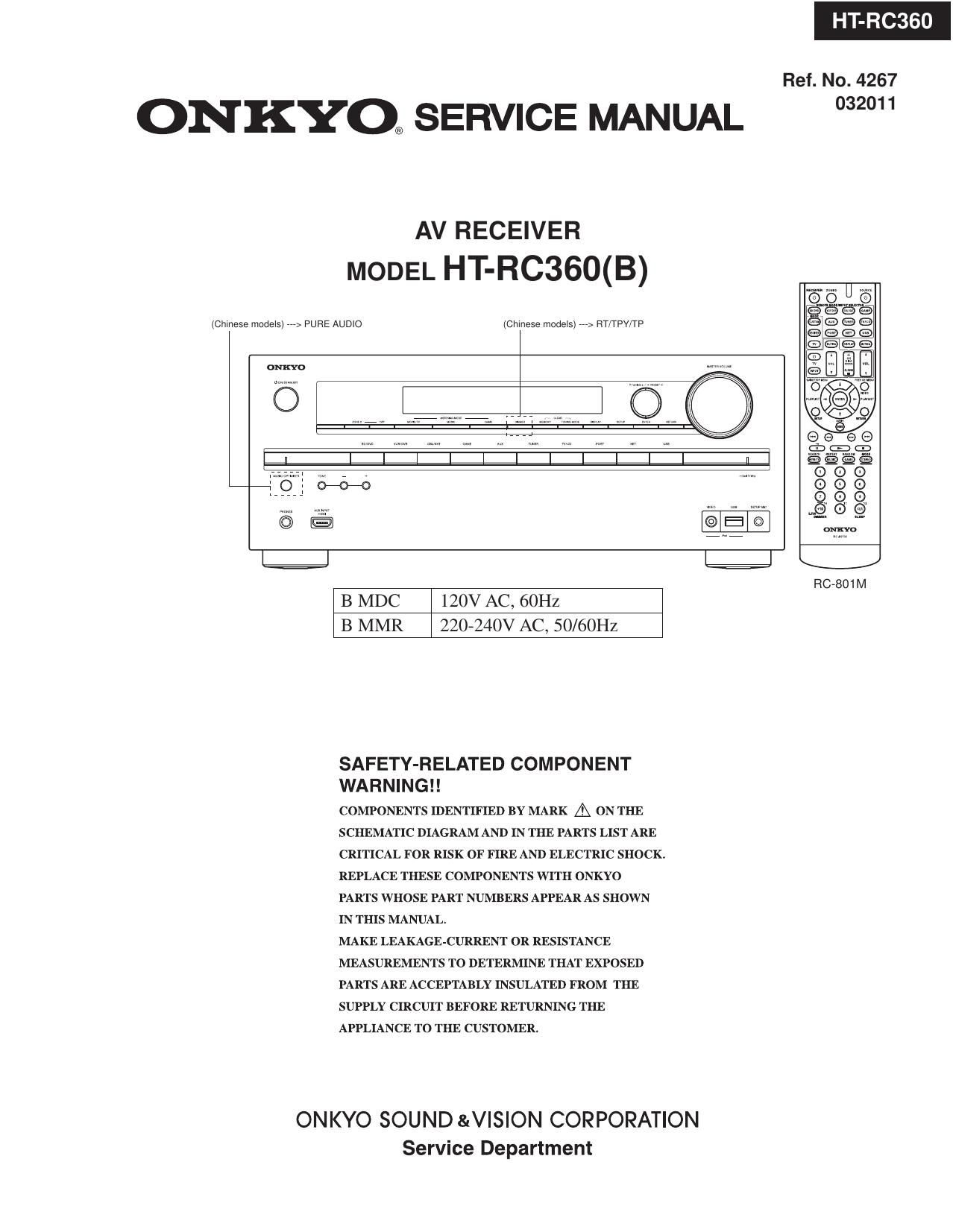

ONKYO® SERVICE MANUAL
(Chmese modesh ,,,> PURE AUDIO (Chmese modes) m) HT/TPVFI'P
AV RECEIVER
MODEL HT-RC360(B)
HT-RC360
Ref. No. 4267
032011
ouxvo
B MDC 120V AC, 60Hz
B MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
