Onkyo HTRC 160 Service Manual
This is the 112 pages manual for Onkyo HTRC 160 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTRC 160 Service Manual (Ocr-read)
Page 1

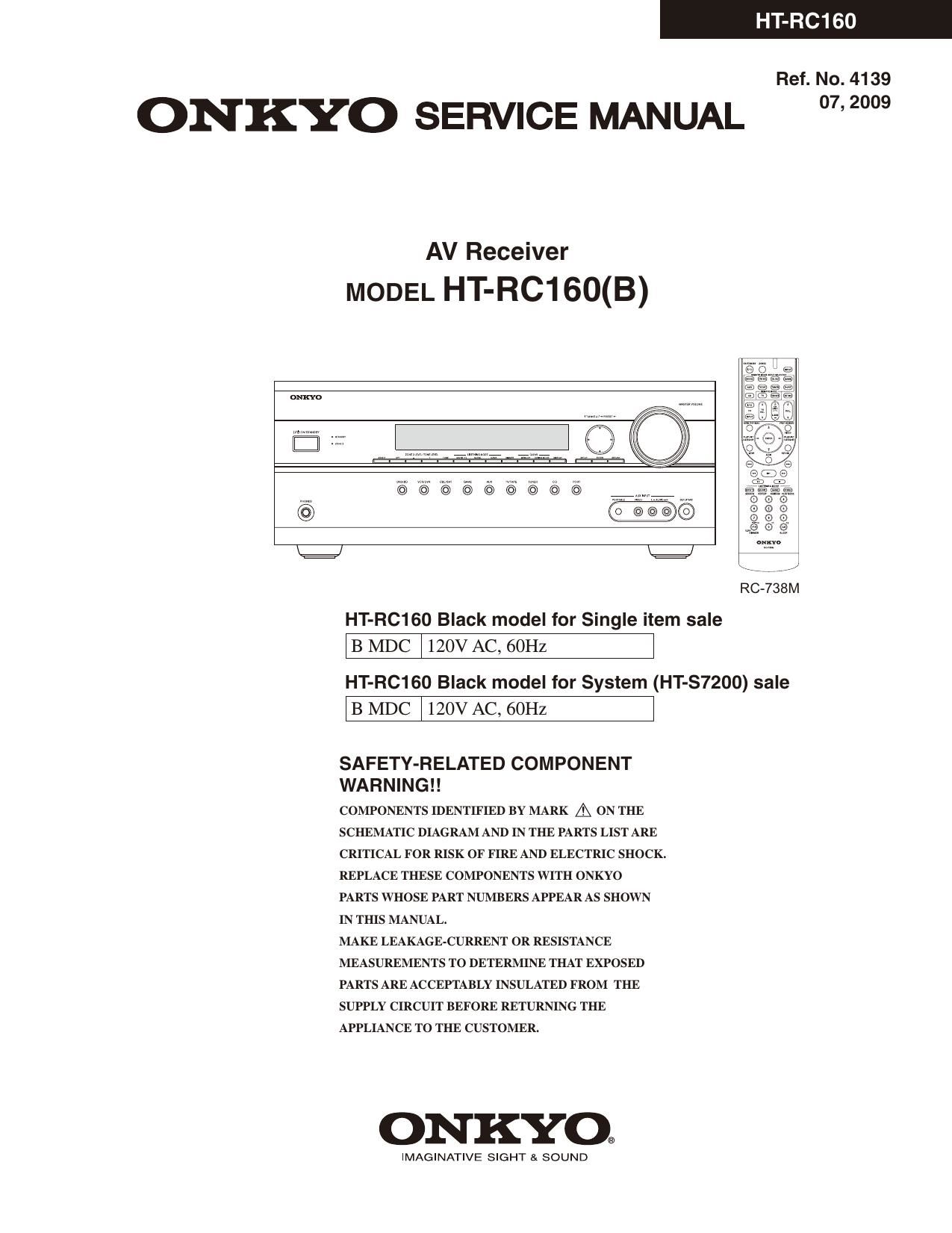

HT-RC160
Ref. No. 4139
ONKYO SERVICE MANUAL
AV Receiver
MODEL HT-FlC160(B)
V ©©©©©©©©© T
\E/
RC-738M
HT-RC160 Black model for Single item sale
l B MDC l 120V AC, 60Hz l
HT-RC160 Black model for System (HT-S7200) sale
l B MDC l 120V AC, 60Hz l
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYOQ
IMAGINATIVE SIGHT & SOUND
07, 2009
