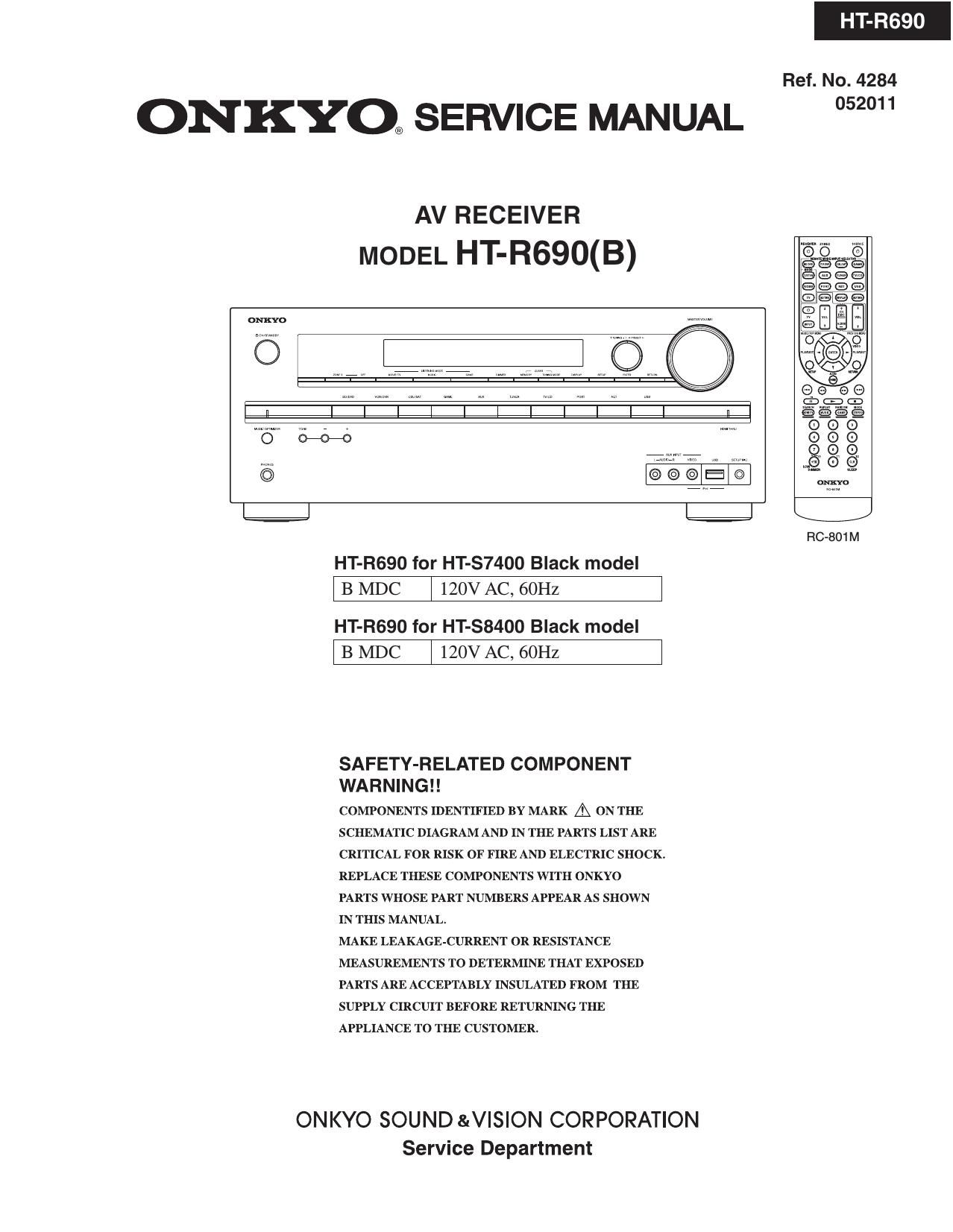

HT-R690
Ref. No. 4284
ONKYOE SERVICE MANUAL 2°
AV RECEIVER
MODEL HT-R690(B)
O :EE ©
RC-801 M
HT-R690 for HT-S7400 Black model
| B MDC | 120V AC, 60Hz \
HT-R690 for HT-88400 Black model
| B MDC | 120V AC, 60Hz \
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
Page 3
HT-R690
EXPLODED VIEWS-2
0698'1H
