Onkyo HTR 590 Service Manual

This is the 106 pages manual for Onkyo HTR 590 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 106

Extracted text from Onkyo HTR 590 Service Manual (Ocr-read)

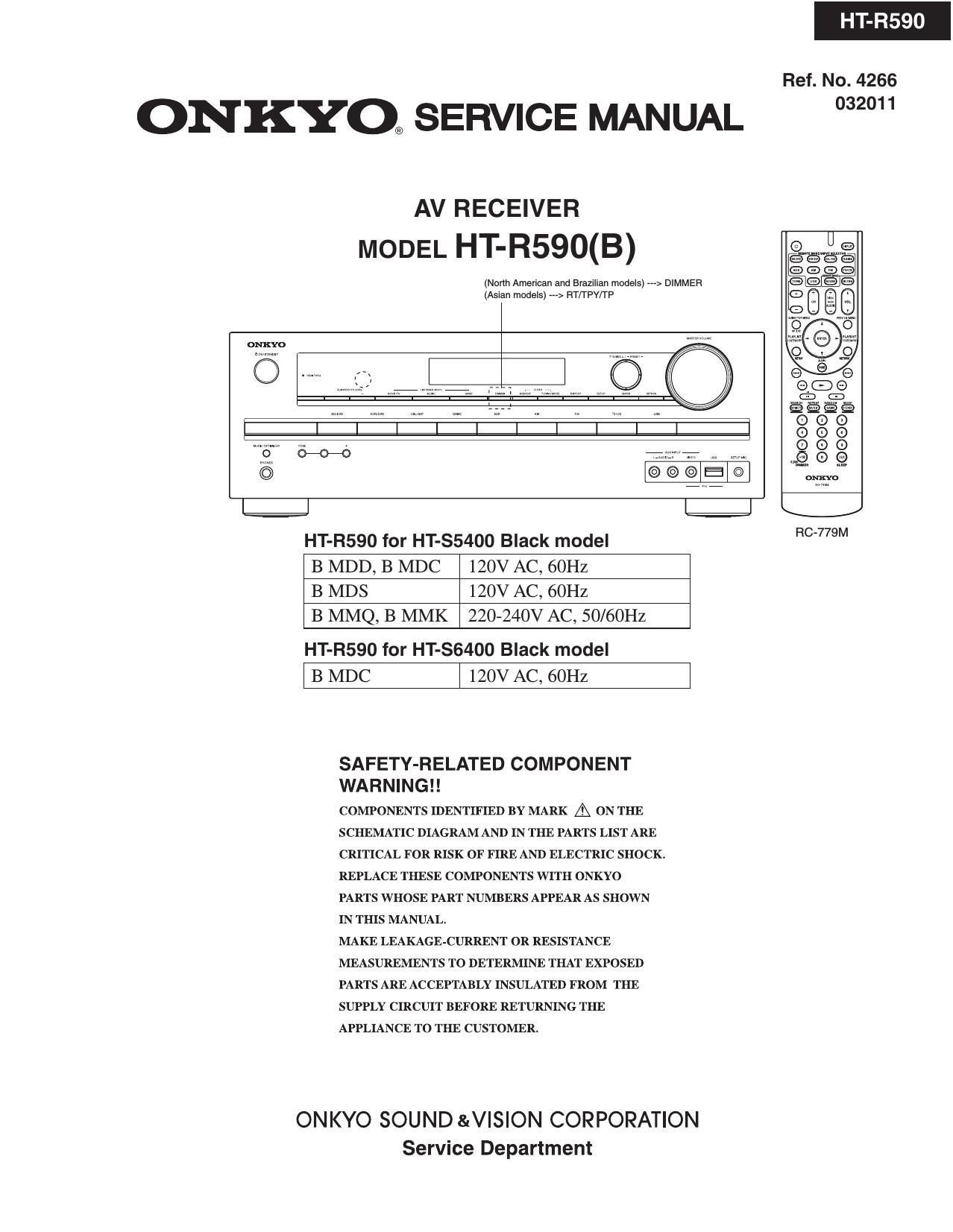

Page 1

ONKYO® SERVICE MANUAL

AV RECEIVER
MODEL HT-R590(B)

(Norm American and Brazilian modeIs) ---> DIMMER
(Asian models) ---> RTrrpy/Tp

HT-R590

Ref. No. 4266
03201 1

I I I W I W | | | " l | |

HT-R590 for HT-55400 Black model

B MDD, B MDC 120V AC, 60Hz

B MDS 120V AC, 60Hz

B MMQ, B MMK 220-240V AC, 50/60Hz

HT-R590 for HT-S6400 Black model
I B MDC | 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTADLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION
Service Department

PIC-779M

Page 95

U003

R240 C-CARBON R RN72K1]»3311E 435033314R1
R241 C-CARBON R RN72K1]»331}E 435033314R1
R242 C-CARBON R RN72K11-4701E 435034704R1
R243 C-CARBON R RN72K1]»331}E 435033314R1
R244 C-CARBON R RN72K1]»2211E 435032214R1
R245 C-CARBON R RN72K11-4701E 435034704R1
R246 C-CARBON R RN72K11-4701E 435034704R1
R247 C-CARBON R RN72K1]»103JE 435031034R1
R248 C-CARBON R RN72K1]»3311E 435033314R1
R249 C-CARBON R RN72K1]»331}E 435033314R1
R252 C-CARBON R RN72K1]»0001E 435030004R1
R253 C-CARBON R RN72K1]»221}E 435032214R1
R254 C-CARBON R RN72K1]»103JE 435031034R1
R255 C-CARBON R RN72K1]»221}E 435032214R1
R256 C-CARBON R RN72K11-4701E 435034704R1
R257 C-CARBON R RN72K11-4701E 435034704R1
R262 C-CARBON R RN72K1]»103JE 435031034R1
R263 C-CARBON R RN72K1]»103JE 435031034R1
R264 C-CARBON R RN72K1]»103JE 435031034R1
R265 C-CARBON R RN72K1]»221}E 435032214R1
R271 C-CARBON R RN72K1]»0001E 435030004R1
R272 C-CARBON R RN72K1]»000}E 435030004R1
R273 C-CARBON R RN72K1]»0001E 435030004R1
R276 C-CARBON R RN72K11-473JE 435034734R1
R277 C-CARBON R RN72K1]»2221E 435032224R1
R281 C-CARBON R RN72K1]»103JE 435031034R1
R282 C-CARBON R RN72K1]»103JE 435031034R1
R284 C-CARBON R RN72K1]»103JE 435031034R1
R301 C-CARBON R RN72K11-4701E 435034704R1
R304 C-CARBON R RN72K1]»221}E 435032214R1
R305 C-CARBON R RN72K1]»2211E 435032214R1
R306 C-CARBON R RN72K1]»330}E 435033304R1
R307 C-CARBON R RN72K1]»3311E 435033314R1
R308 C-CARBON R RN72K1]»331}E 435033314R1
R312 C-CARBON R RN72K11-4701E 435034704R1
R313 C-CARBON R RN72K11-4701E 435034704R1
R3134 C-CARBON R RN72K11-4701E 435034704R1
R314 C-CARBON R RN72K1]»151}E 435031514R1
R315 C-CARBON R RN72K11-4701E 435034704R1

47/57 PAGE
