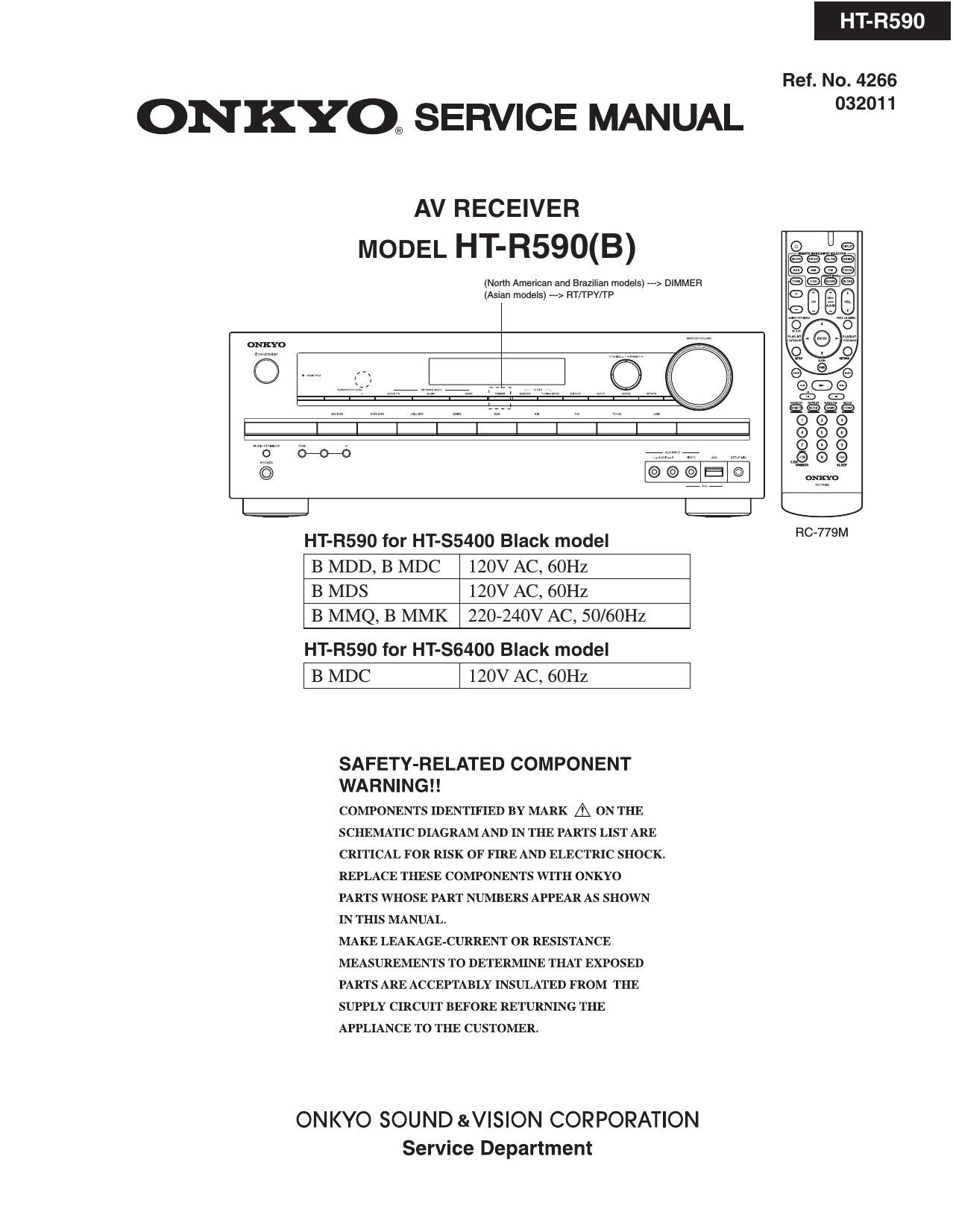

ONKYO® SERVICE MANUAL

AV RECEIVER
MODEL HT-R590(B)

(Norm American and Brazilian modeIs) ---> DIMMER
(Asian models) ---> RTrrpy/Tp

HT-R590

Ref. No. 4266
03201 1

I I I W I W | | | " l | |

HT-R590 for HT-55400 Black model

B MDD, B MDC 120V AC, 60Hz

B MDS 120V AC, 60Hz

B MMQ, B MMK 220-240V AC, 50/60Hz

HT-R590 for HT-S6400 Black model
I B MDC | 120V AC, 60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTADLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION
Service Department

PIC-779M
