Onkyo HTR 548 Service Manual
This is the 101 pages manual for Onkyo HTR 548 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTR 548 Service Manual (Ocr-read)
Page 1

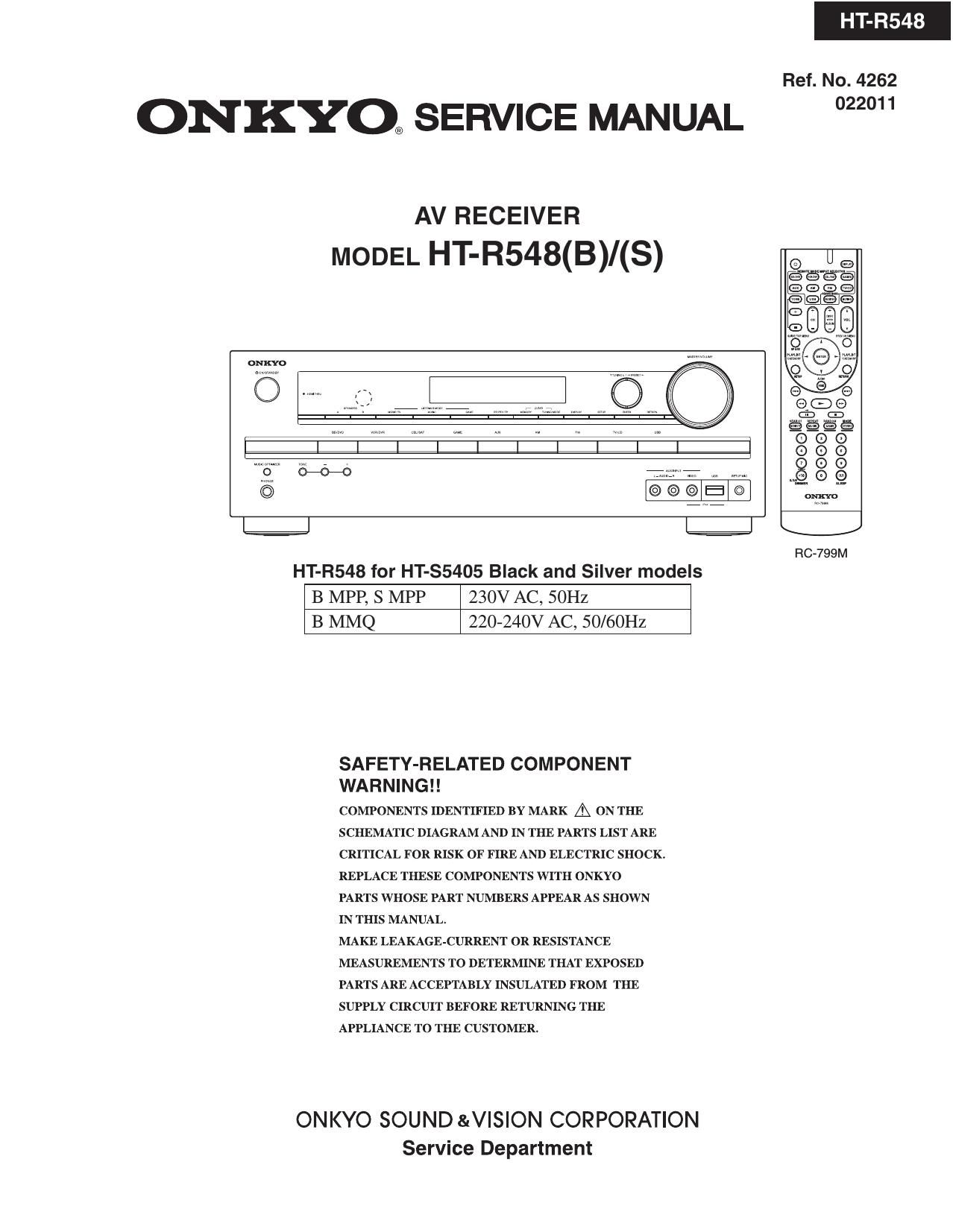

ONKYO® SERVICE MANUAL
AV RECEIVER
MODEL HT-R548(B)/(S)
HT-R548
Ref. No. 4262
02201 1
HT-R548 for HT-SS405 Black and Silver models
B MPP, S MPP 230V AC, 50Hz
B MMQ 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTADLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
RC-799M
