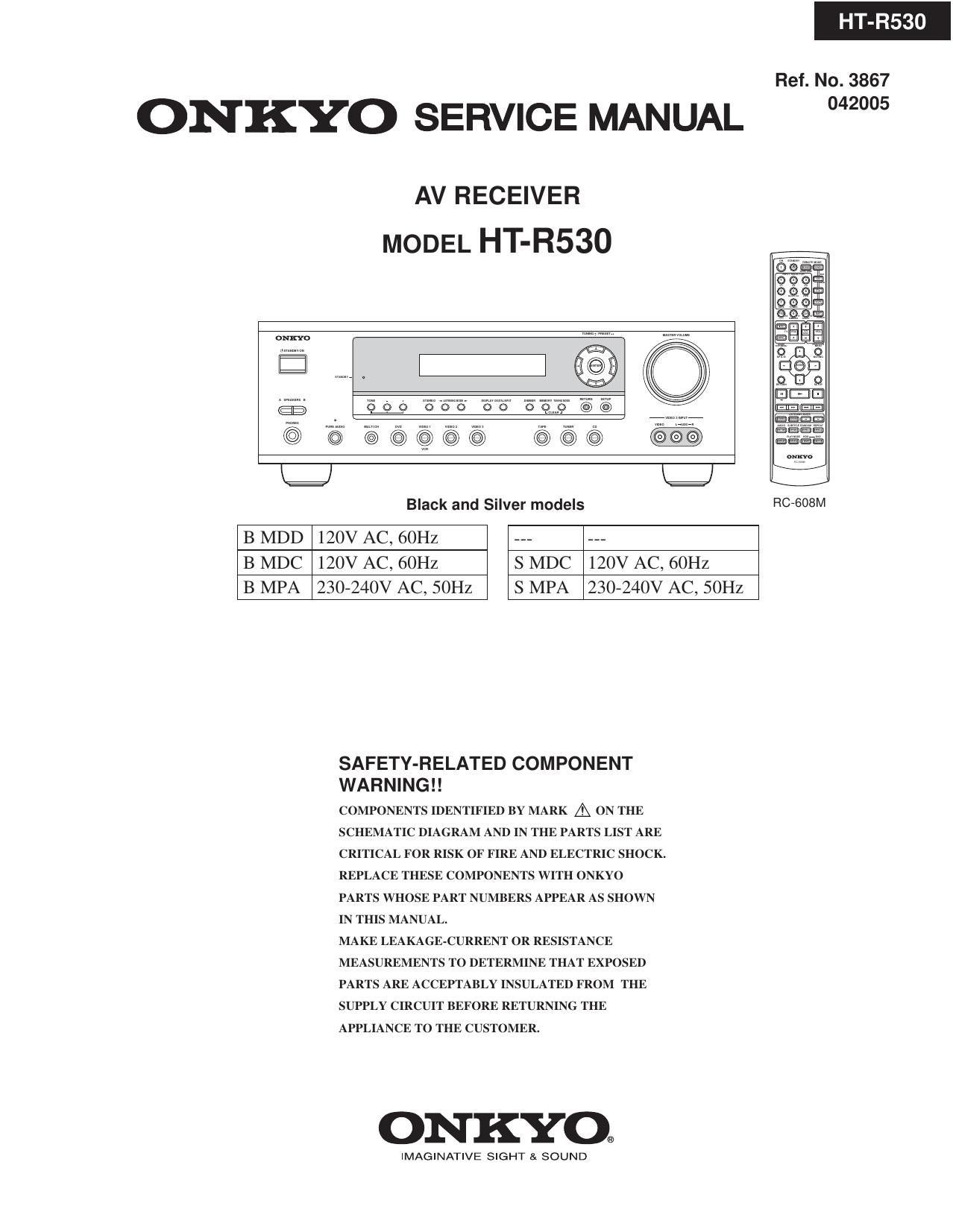

ONKYO SERVICE MANUAL

AV RECEIVER

MODEL HT-R530

\E}

Black and Silver models

IE.)

B MDD

120V AC, 60Hz

B MDC

120V AC, 60Hz

S MDC

120V AC, 6()Hz

B MPA

230-240V AC, 50Hz

S MPA

230-240V AC, SOHZ

SAFETY-RELATED COMPONENT

WARNINGII

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN

IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND

HT-R530

Ref. No. 3867
042005

RC-608M
