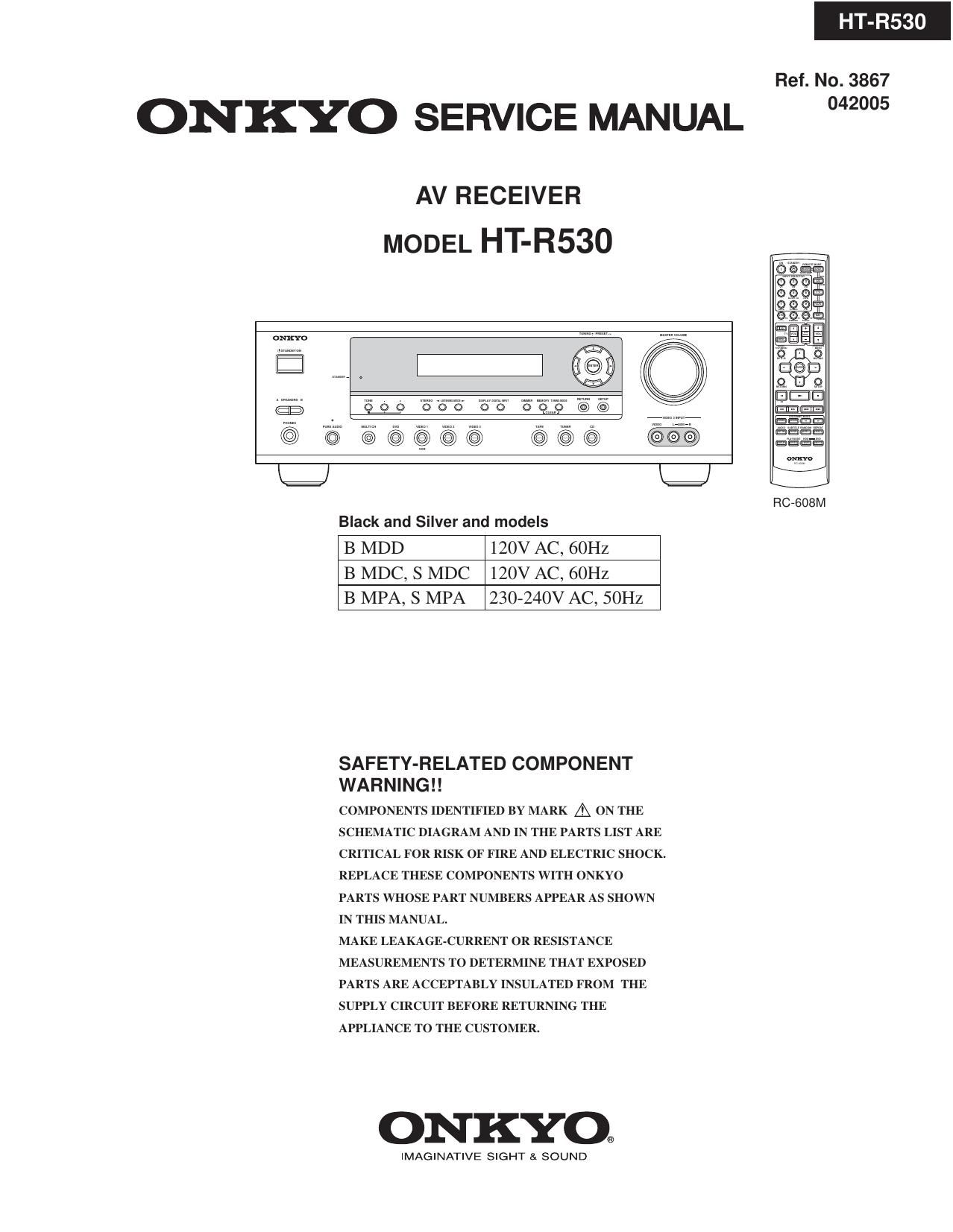

HT-R530

Ref. No. 3867

ONKYO SERVICE MANUAL °42°°5

AV RECEIVER
MODEL HT-R530

omnro

Q9 goo obc 00 060

@ "@
\Ej

Black and Silver and models

B MDD 120V AC, 60Hz

B MDC, S MDC 120V AC, 60Hz

B MPA, S MPA 230-240V AC, 5()Hz

RC-608M

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND
