Onkyo HTR 490 Service Manual
This is the 33 pages manual for Onkyo HTR 490 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTR 490 Service Manual (Ocr-read)

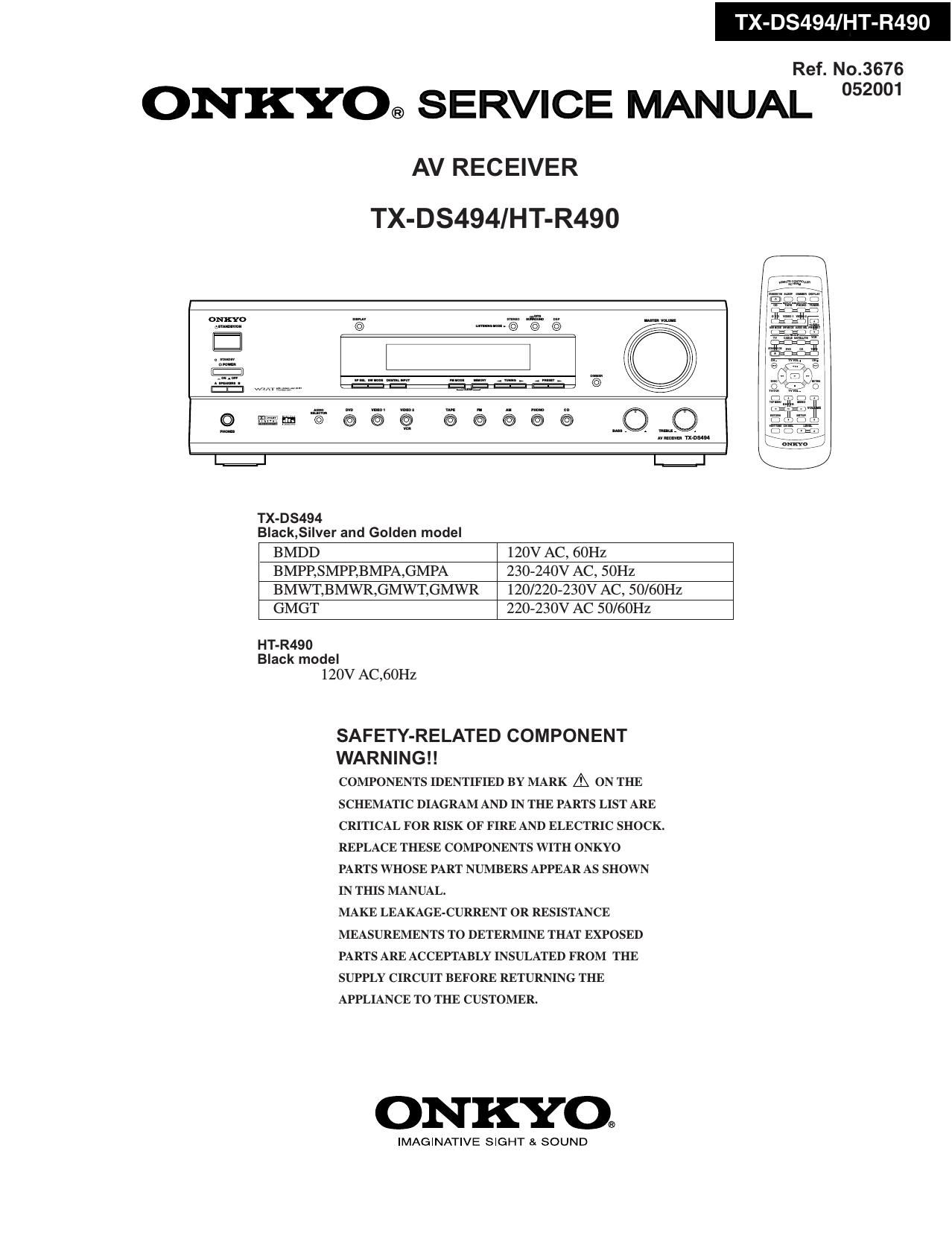

Page 1
TX-DS494/HT-R490
Ref. No.3676
ONKYO® SERVICE MANUAL
AV RECEIVER
TX-DS494/ H T- R490
ECO)
©6666 wQWQ
"new mum
TX-DS494
Black,Silver and Golden model
BMDD
120V AC, 60Hz
BMPP.SMPP,BMPA,GMPA 230-240V AC, 50Hz
BMWT,BMWR,GMWT,GMWR 120/220-230V AC, 50/60Hz
GMGT
220-230V AC 50/601-12
HT-R490
Black model
120V AC,60HZ
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
