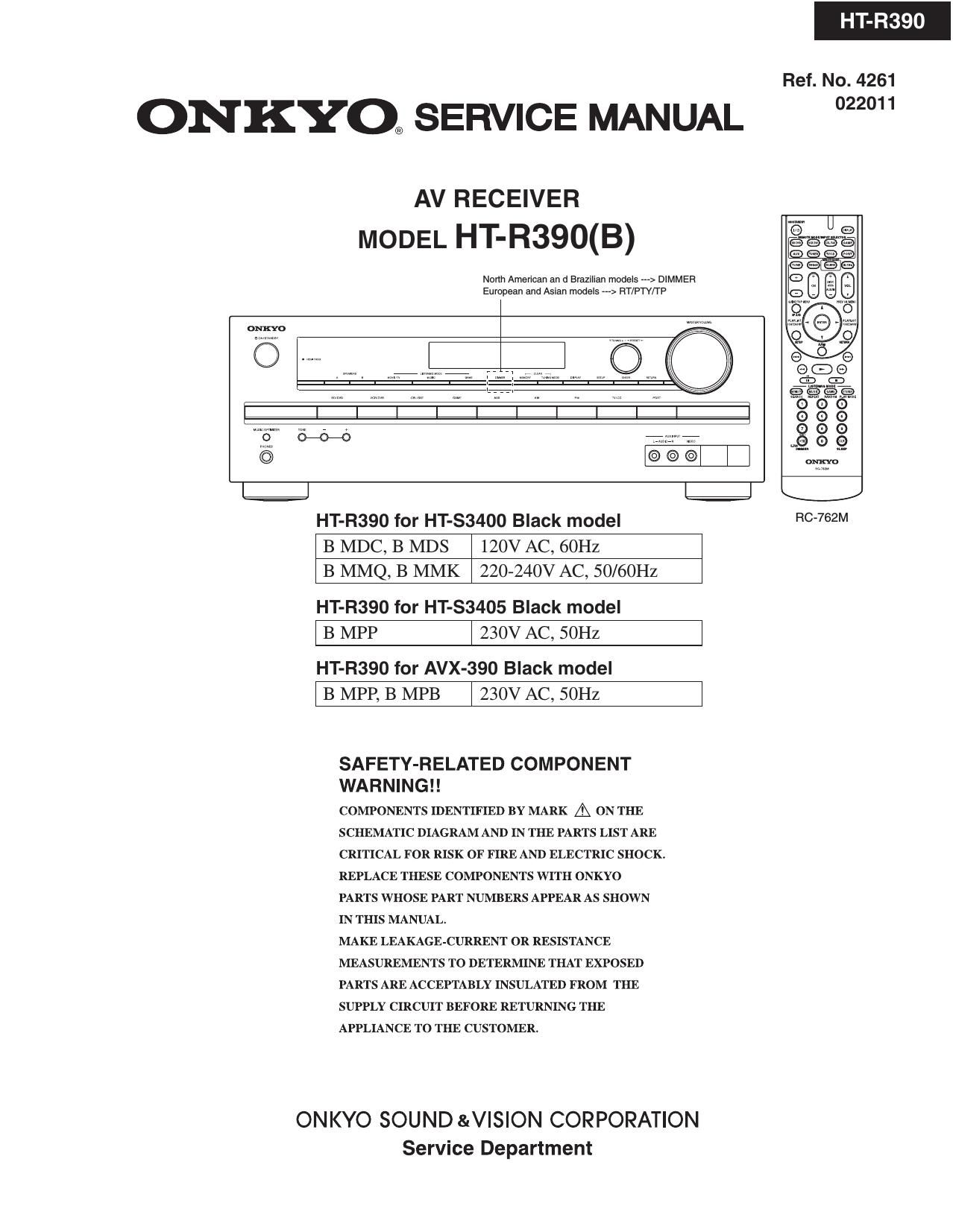

Page 1
ONKYO® SERVICE MANUAL
AV RECEIVER
MODEL HT-R390(B)
North American an d Brazilian models -»-> DIMMEFi
Euiopean and Asian models ---> FiT/PTY/TP
HT-R390
Ref. No. 4261
022011
HT-R390 for HT-S3400 Black model
B MDC, B MDS 120V AC, 60Hz
B MMQ, B MMK 220-240V AC, 50/60Hz
HT-R390 for HT-83405 Black model
i B MPP i 230V AC, 50Hz i
HT-R390 for Avx-39o Black model
i B MPP, B MPB i 230V AC, 50Hz i
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTADLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
