Onkyo HTR 340 Service Manual
This is the 89 pages manual for Onkyo HTR 340 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTR 340 Service Manual (Ocr-read)

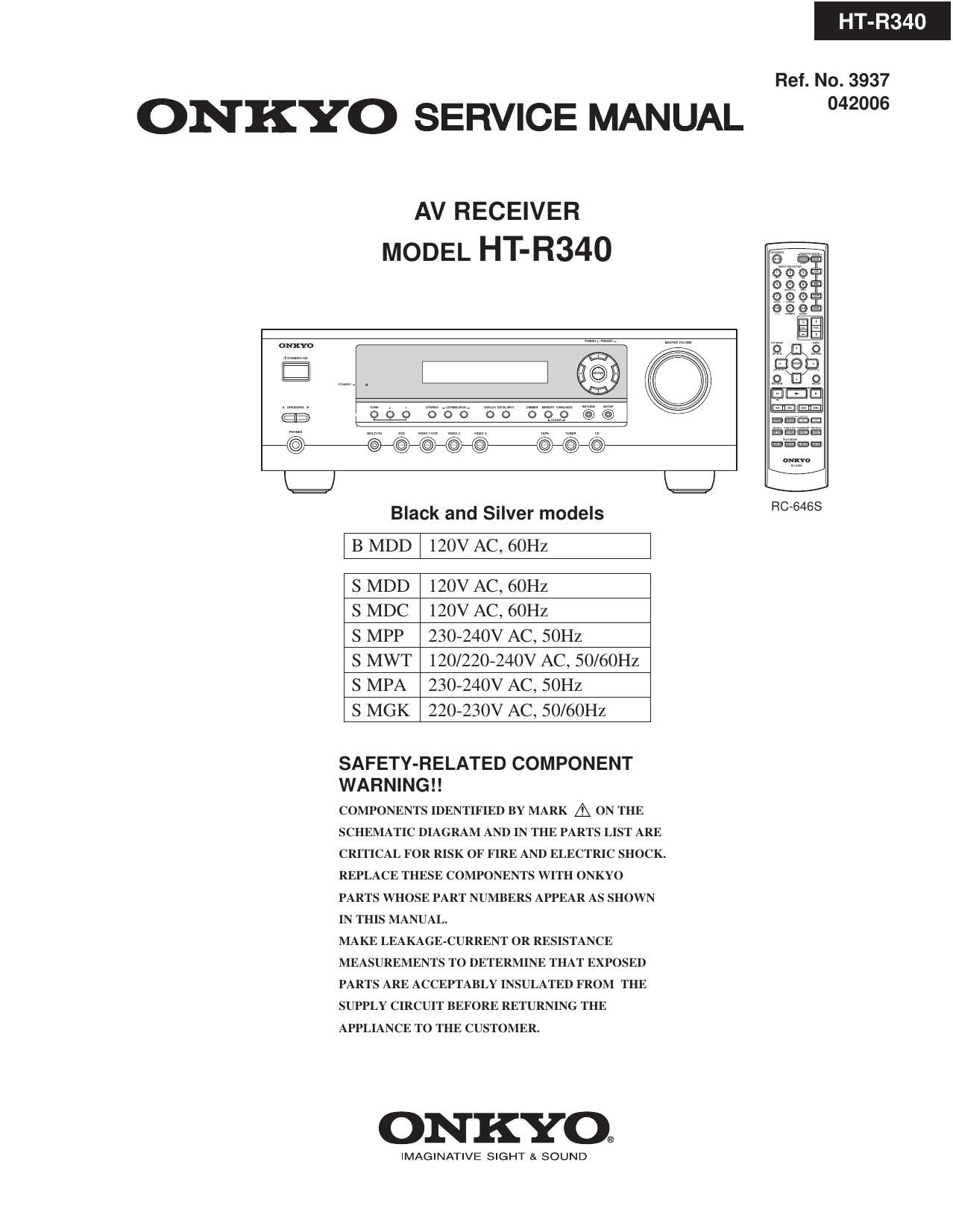

Page 1
HT-R340
Ref. No. 3937
ONKYO SERVICE MANUAL 2°
AV RECEIVER
MODEL HT-R340
a-e @JWWQED-QJW @-
\E/ \E/
Black and Silver models
| B MDD | 120V AC, 6()Hz
RC-64GS
S MDD 120V AC, 6()Hz
S MDC 120V AC, 60Hz
S MPP 230-240V AC, SOHZ
S MWT 120/220-240V AC, 50/60Hz
S MPA 230-240V AC, SOHZ
S MGK 220-230V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
