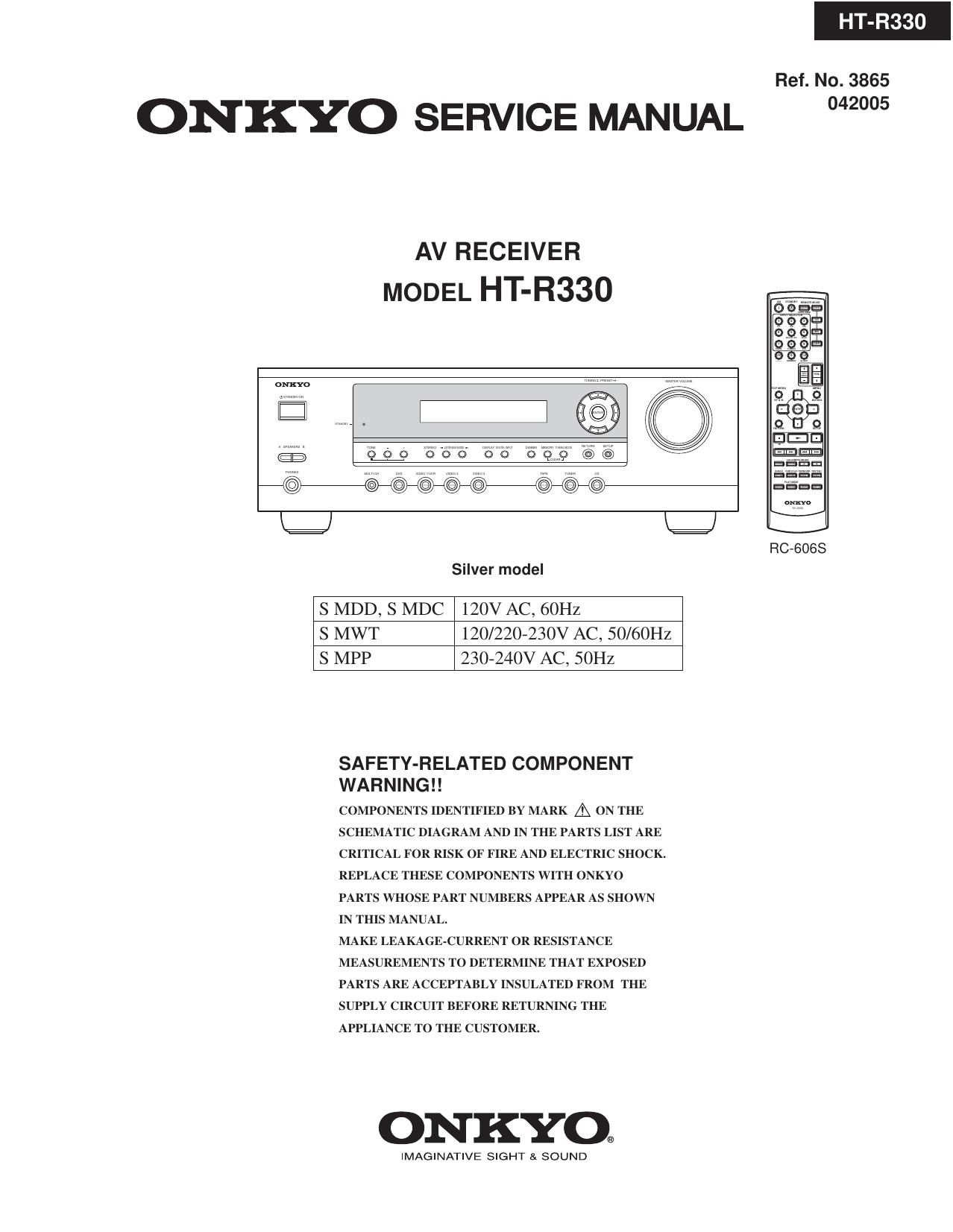

Page 1
HT-R330
Ref. No. 3865
ONKYO SERVICE MANUAL °42°°5
AV RECEIVER
MODEL HT-R330
oNxvo
[fl :
$00 were: as am @@
R@-mc Lg ©~©¥@-@{@{>-©
\E) \E/
Silver model
FTC-606$
S MDD, S MDC 120V AC, 60Hz
S MWT 120/220-230V AC, 50/60Hz
S MPP 230-240V AC, SOHZ
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
