Onkyo HTP 990 Service Manual 2
This is the 17 pages manual for Onkyo HTP 990 Service Manual 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTP 990 Service Manual 2 (Ocr-read)
Page 1

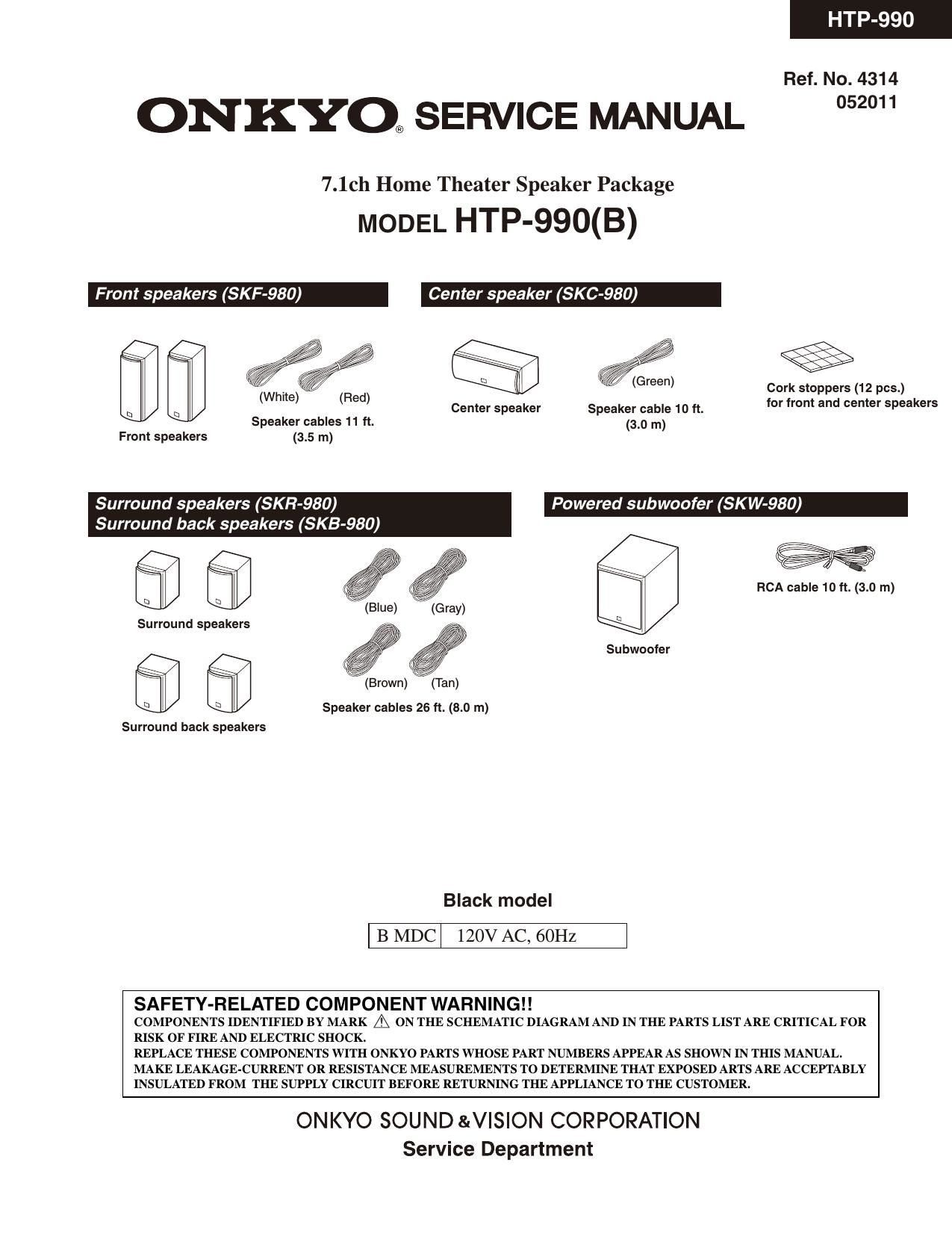

HTP-990
Ref. No. 4314
ONKYO® SERVICE MANUAL 2°"
7.1ch Home Theater Speaker Package
MODEL HTP-990(B)
Front speakers (SKF-980) Center speaker (SK 0-980)
W7 57/
(White) (Red)
Center speaker Speaker cable 10 ft.
Speaker cables 11 ft. (31) In)
Front speakers (3.5 m)
Surround speakers (SKR-980) Powered subwoofer (SK W-980)
Surround back speakers (SKB-980)
\
I I RCA cable 10 n. (3.0 m)
Surround speakers
Subwooter
. .
i W (Brown) (Tan)
Speaker cables 26 ft. (8.0 m)
Surround back speakers
®
Cork stoppers (12 pcs.)
for front and center speakers
Black model
B MDC 120V AC, 60Hz
SAFETY-RELATED COMPONENT WARNINGH
COMPONENTS IDENTIFIED BY MARK A ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR
RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED ARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
