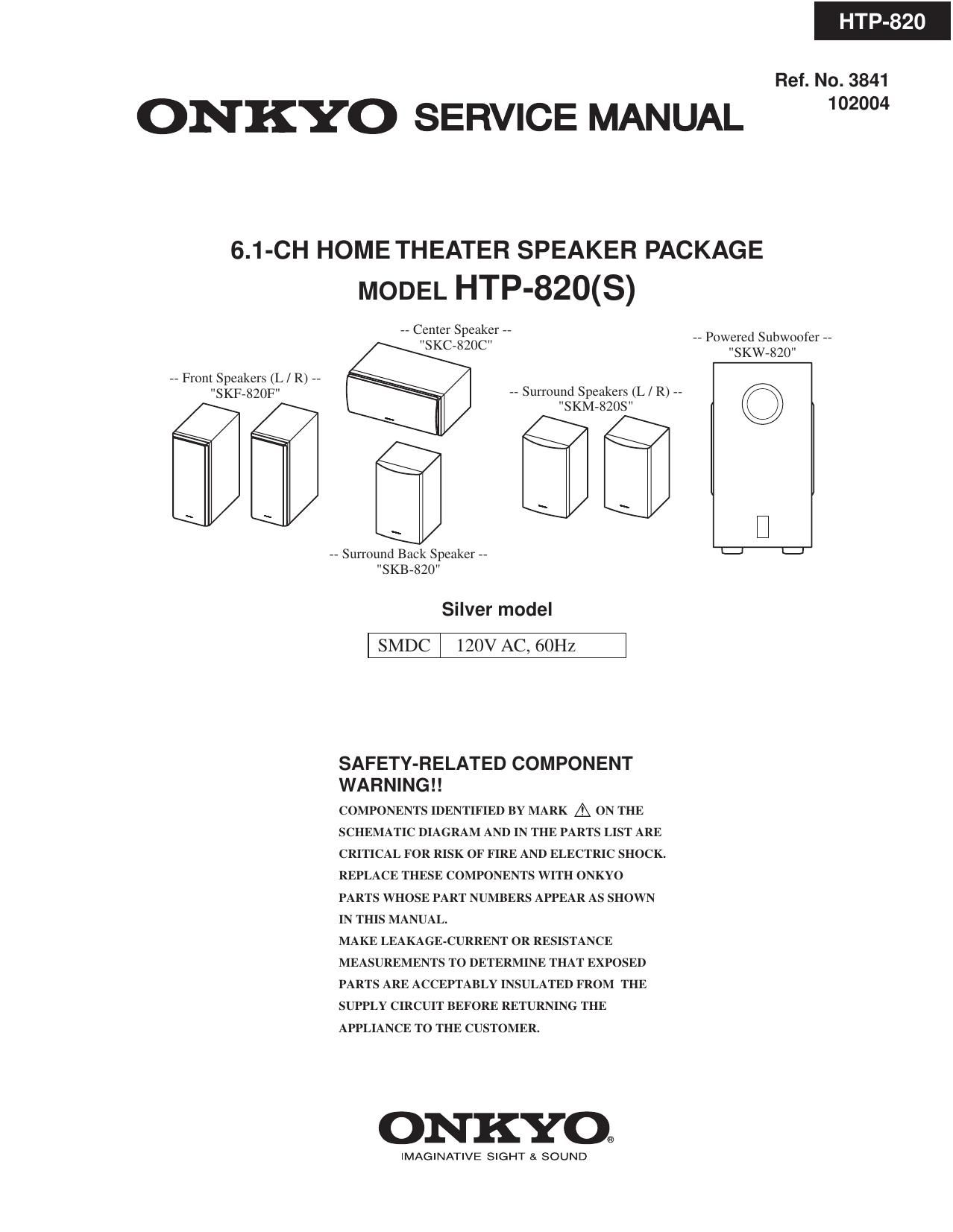

Page 1
HTP-820
Ref. No. 3841
ONKYO SERVICE MANUAL 2°
6.1-CH HOME THEATER SPEAKER PACKAGE
W From Speakers (L / R) _,
"SKEEZOF"
MODEL HTP-820(S)
7- Center Speaker _,
"SKC7820C"
W Surround Speakers (L / R) W
"SKMESZOS"
@W
>7 Surround Buck Speaker u
"SKBASZO"
Silver model
120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
d Puwered Subwoofer W
"SKWESZO"
©
Page 2
HTP-820
SPECIFICATIONS
I Powered Subwoofer (SKW-820) I Center Speaker (SKC-820C)
Type :
Input sensitivity/impedance :
Maximum output power :
Frequency response :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit :
Power supply :
Power consumption :
Other :
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit :
Terminal :
Other :
Bass-reflex
300 mV/ 100 kohm
220 W (Dynamic Power)
23 Hz - 150 Hz
159 cubic feet (44.9 L)
11-5/16" x 21-1/8" x 16-3/16"
(287 x 536 x 411 mm)
43.3 lbs. (19.7 kg)
8 inch (20 cm) Cone Woofer
x 2
AC 120 V, 60 Hz
170 W
Auto Standby function
I Front Speaker (SKF-820F)
2 Way Bass-reflex
8 ohm
130 W
86 dB/W/m
50 Hz - 45 kHz
5 kHz
038 cubic feet (10.8 L)
7-7/16" x 16-1/2" x 9-5/16"
(189 x 419 x 236 mm)
13.7 lbs. (6.2 kg)
5-1/4 inch (13 cm) A-OMF
Cone Woofer x 2
1 inch (2.5 cm) Soft Dome
tweeter
Color-coded binding post
Magnetic shielding
Type :
Impedance :
Maximum input power :
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D):
Weight :
Drivers unit:
Terminal :
Other :
Type :
Impedance :
Maximum input power:
Output sound pressure level :
Frequency response :
Crossover frequency :
Cabinet capacity :
Dimensions (W x H x D) :
Weight :
Drivers unit:
Terminal :
2 Way Bass-reflex
8 ohm
130 W
85 dB/W/m
60 H2 - 45 kHz
5 kHz
0.27 cubic feet (7.7 L)
15-1/4" x 6-3/16" x 7-15/16"
(387 x157 x 202 mm)
9.51bs. (4.3 kg)
4 inch (10 cm) A-OMF
Cone Woofer x 2
1 inch (2.5 cm) Soft Dome
tweeter
Color-coded binding post
Magnetic shielding
I Surround Speaker (SKM-8203/SKB-820)
2 Way Bass-reflex
8 ohm
130 W
82 dB/W/m
60 Hz - 50 kHz
5 kHz
009 cubic feet (2.7 L)
6-7/8" x 10-7/16" x 4-15/16"
(175 x 265 x 125 mm)
3.7 lbs. (1.7 kg)
4 inch (10 cm) Cone Woofer
1 inch (2.5 cm) Balanced Dome
tweeter
Color-coded binding post
Specifications and appearance are subject to change
without prior notice.
