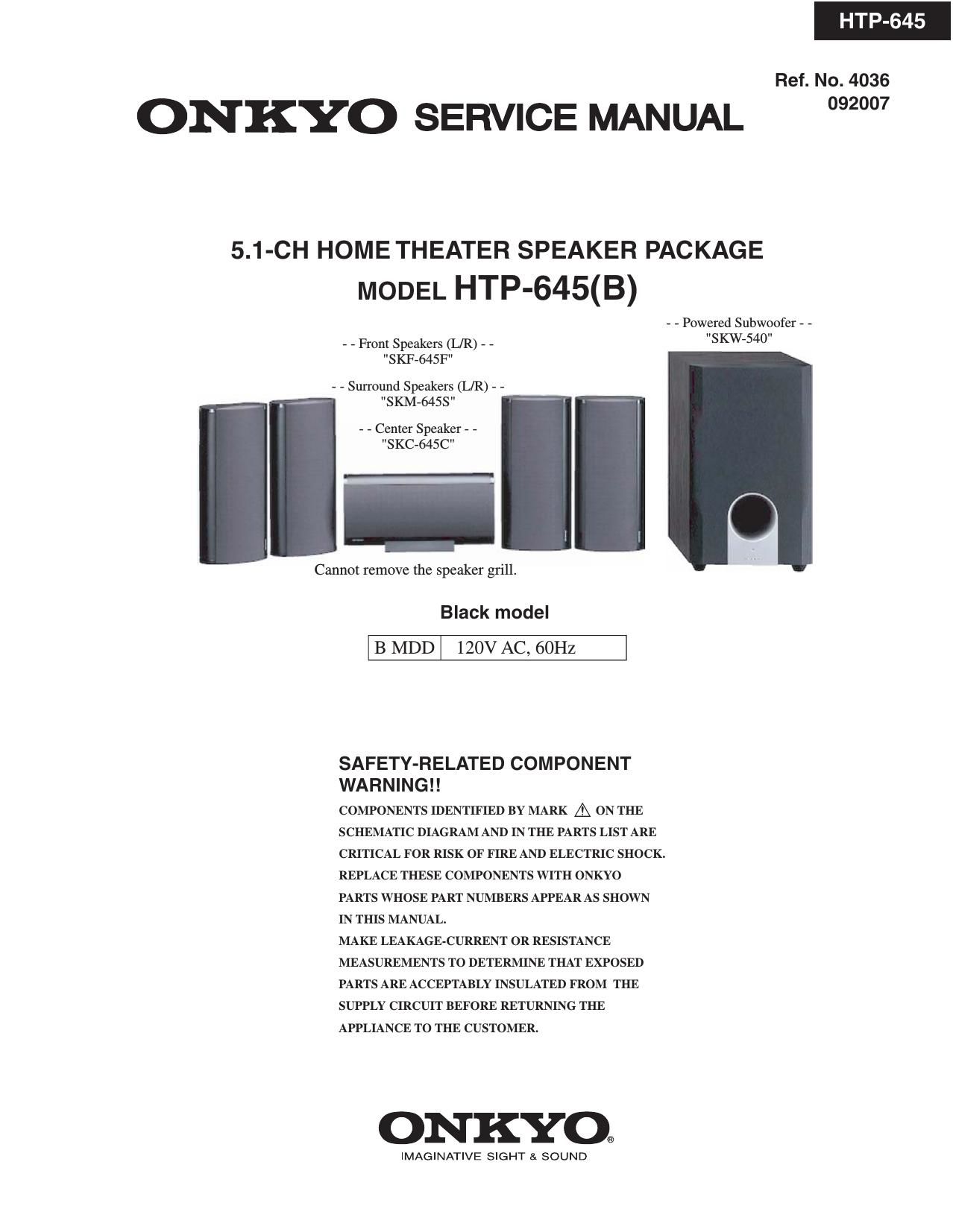

Onkyo HTP 645 Service Manual

This is the 4 pages manual for Onkyo HTP 645 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 4
Onkyo HTP 645 Service Manual

Extracted text from Onkyo HTP 645 Service Manual (Ocr-read)

Page 1

HTP-645 HTP-645 EXPLODED VIEW SKF-645F / SKC-645C / SKM-645S SP10 SP14 SP12 SP16SP18 "SKF-645F ""SKC-645C" TERMINAL : White / Black TERMINAL : Green / Black SKW-540 ---> Refer to service manual of "SKS-HT540" (Ref. No. 3942-R1) Cannot remove the speaker grill. "SKF-645F " TERMINAL : Red / Black "SKM-645S " TERMINAL : Blue / Black "SKM-645S " TERMINAL : Gray / Black

Page 2

1/1 PAGE HTP-645 EXPLODED VIEW PARTS LIS T REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS EXPLODED SKF-645F (B) / : FRONT SPEAKERS EXPLODED SP10 COMPLETE UNIT "SKF-645F (B) " 1 000-SKF645FLB EXPLODED SP12 COMPLETE UNIT "SKF-645F (B) " 1 000-SKF645FRB EXPLODED SKC-645C (B) : CENTER SPEAKER EXPLODED SP14 COMPLETE UNIT "SKC-645C (B)" 1 000-SKC645CB EXPLODED SKM-645S (B) / : SURROUND SPEAKERS EXPLODED SP16 COMPLETE UNIT "SKM-645S (B) " 1 000-SKM645SLB EXPLODED SP18 COMPLETE UNIT "SKM-645S (B) " 1 000-SKM645SRB EXPLODED EXPLODED SKW-540 ---> Refer to service manual of "SKS-HT540" (Ref. No. 3942-R1).
