Onkyo HTP 580 Service Manual
This is the 19 pages manual for Onkyo HTP 580 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTP 580 Service Manual (Ocr-read)

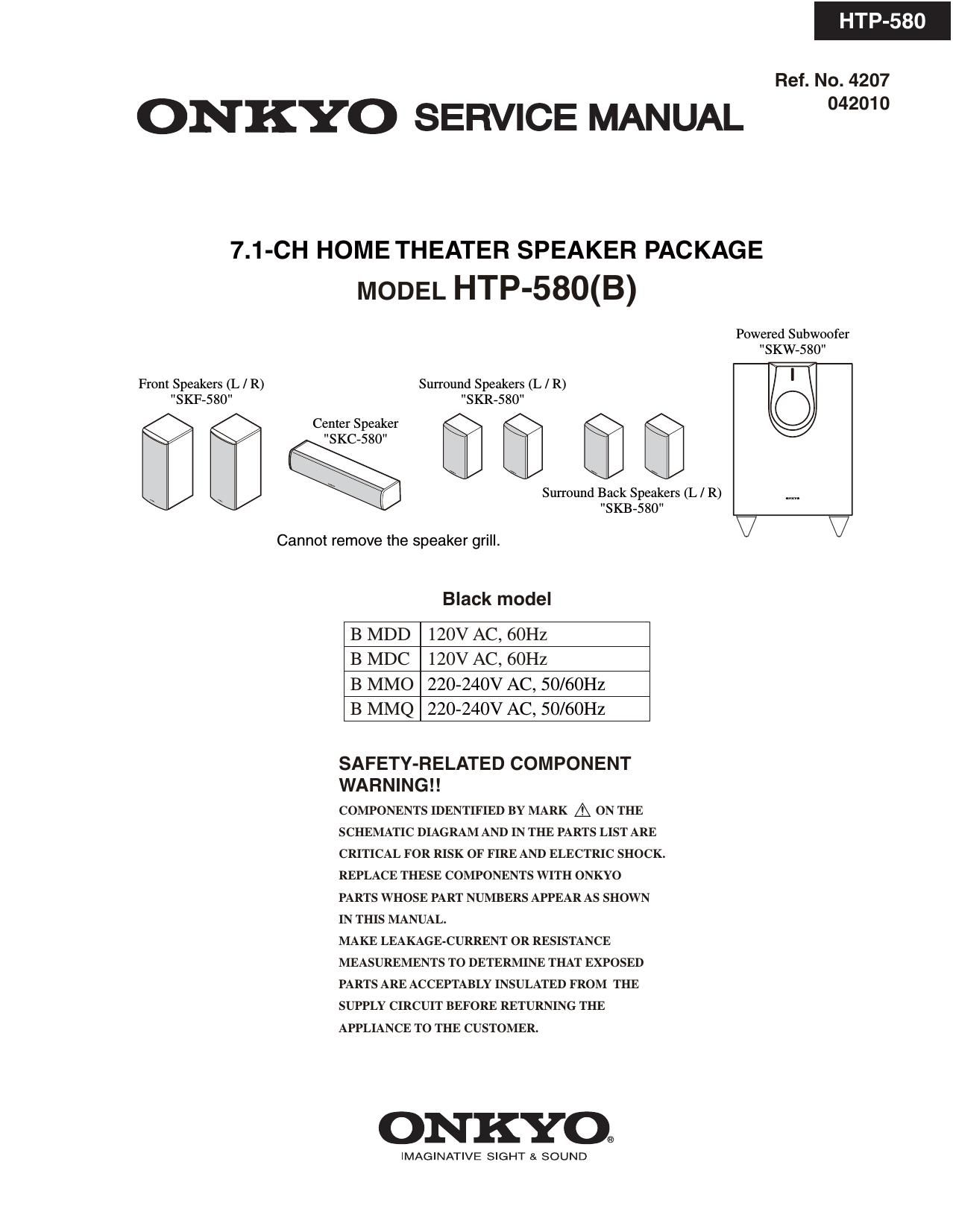

Page 1
HTP-580
Ref. No. 4207
ONKYO SERVICE MANUAL 2"
7.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-580(B)
Powered Subwoofer
"SKW-SSO"
From Speakers (L IR) Surround Speakers (L / R) I
"SKF-SSO" "SKR-SSO" 0
Center Speaker
"SKC-580"
Surround Back Speakers (L / R) m
"SKB-SSO"
Cannot remove the speaker grill.
Black model
B MDD 120V AC, 60HZ
B MDC 120V AC, 60Hz
B MMO 220-240V AC, 50/60Hz
B MMQ 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
