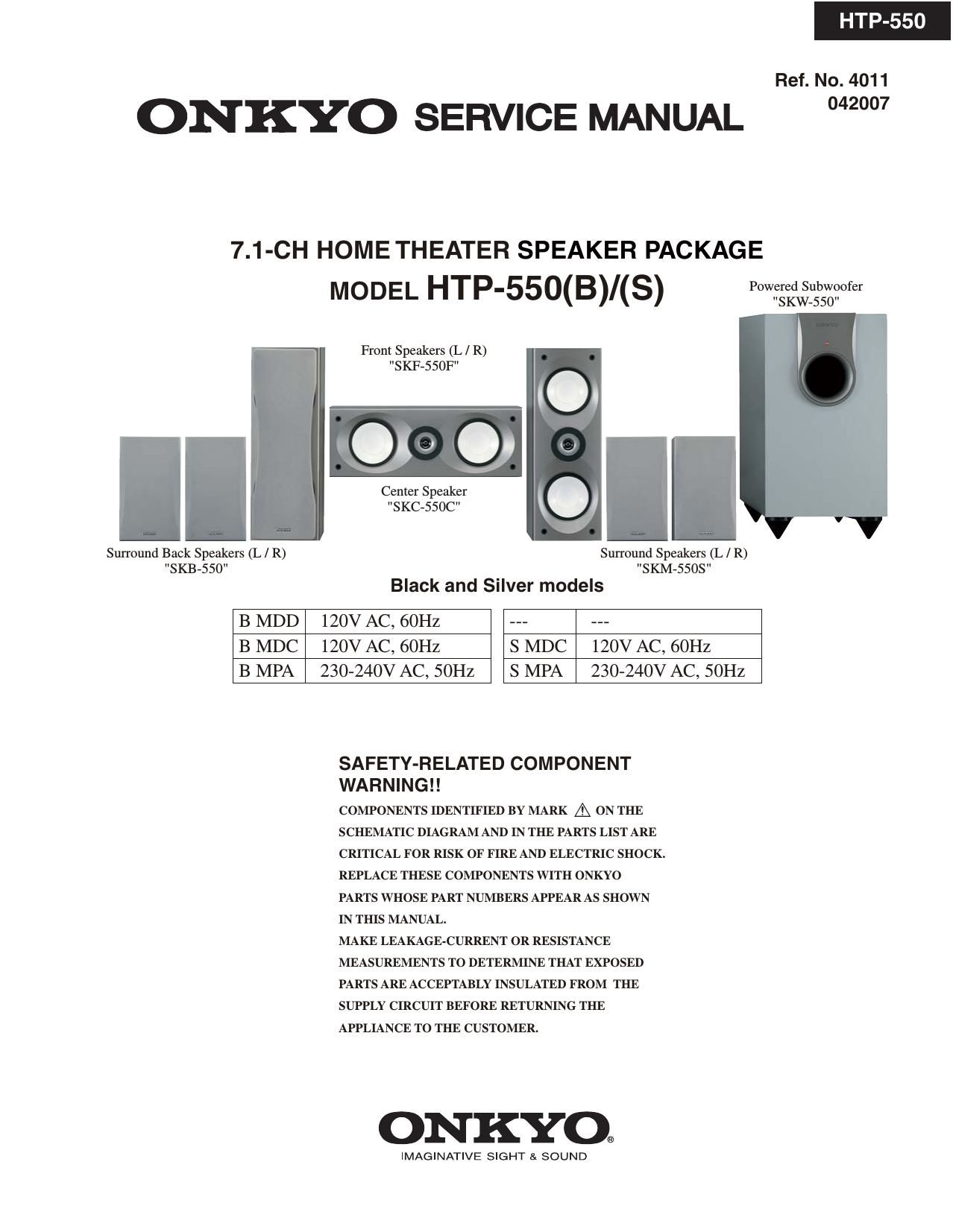

Page 1
ONKYO SERVICE MANUAL
HTP-550
Ref. No. 4011
042007
7.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-550(B)I(S)
Surround Back Speakers (L / R)
SKB-SSO"
Front Speakers (L / R)
"SKF-SSOF"
Center Speaker
"SKC»550C
Powered Subwoofer
"SKW-SSO"
Surround Speakers (L / R)
"SKM-550S"
Black and Silver models
B MDD 120V AC, 60Hz --- ---
B MDC 120V AC, 60Hz S MDC 120V AC, 60Hz
B MPA 230-240V AC, 50Hz S MPA 230-240V AC, SOHz
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYOQ
IMAGINATIVE SIGHT & SOUND
Page 2
HTP-550
EXPLODED VIEWS-1 4m.»
SKW-550 : POWERED SUBWOOFER S901 (POWER SWITCH) and U05 ; MPA type only
$901
P901 /> $P11
A35 x 10 PCs.
X pcs. 05
A102 /@ . &A°2 Kg fl/
I
A104
x 2 pcs.
Refer to "EXPLODED VIEWS-2
F901C (LABEL) : MPA type only.
Part No (SN) --»> Refer to
"PRINTED CIRCUIT BOARD PARTS LIST".
099le
