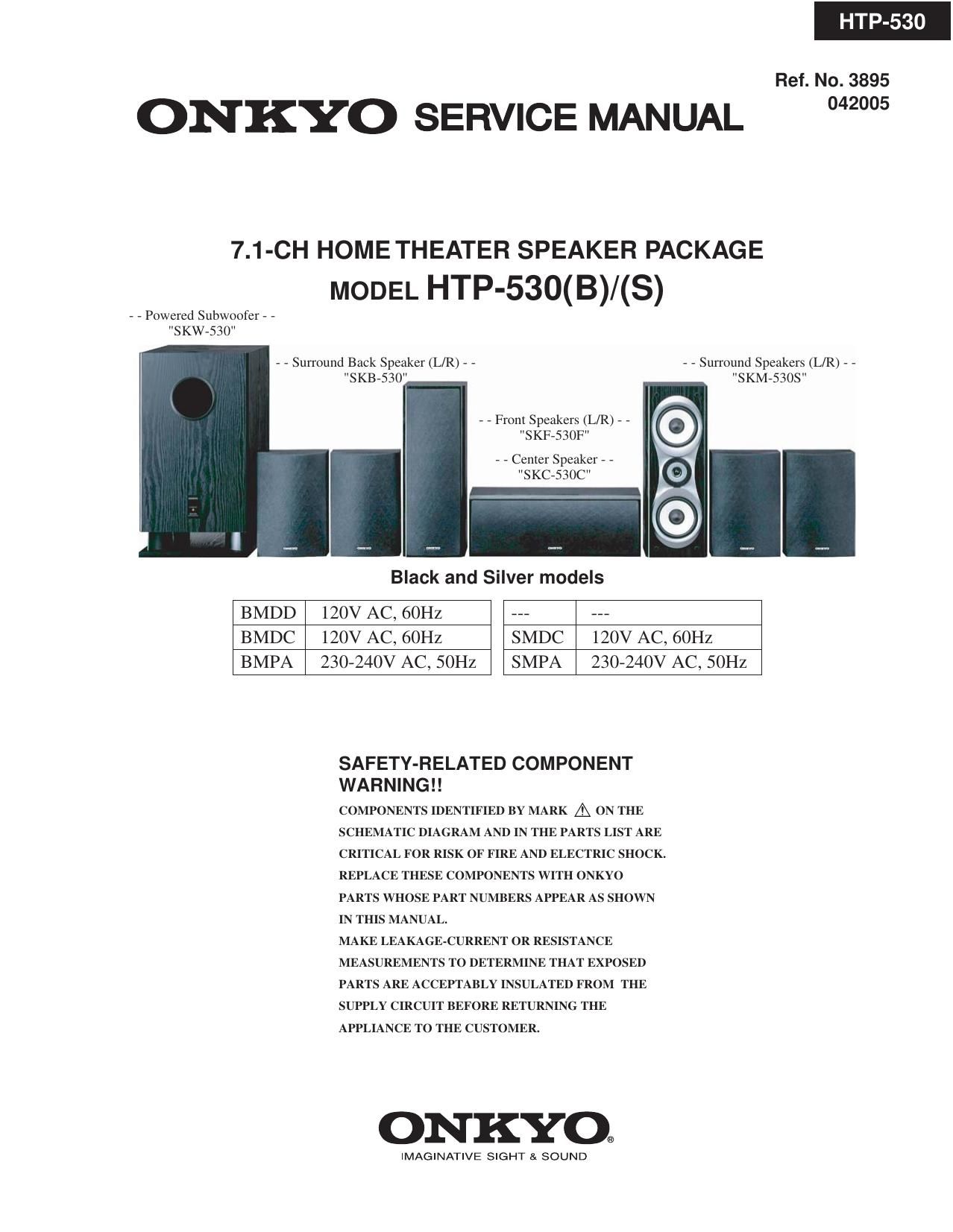

Page 1

HTP-53O

Ref. No. 3895

ON KYO SERVICE MANUAL 042005

7.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-530(B)/(S)

- - Powered Subwoofer - -
"SKWA530"

- - Surround Back Speaker (L/R) - - - - Surround Speakers (L/R) - -
"SKB-530" "SKM~530$"

- A From Speakers (L/R) - A
"SKF»530F"

- - Center Speaker ~ -
SKC-530C"

Black and Silver models

BMDD 120V AC, 60HZ --- ---
BMDC 120V AC, 60Hz SMDC 120V AC, 60Hz
BMPA 230-240V AC, SOHZ SMPA 230-240V AC, SOHZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT 8 SOUND

Page 2

SPECIFICATIONS

Powered Subwoofer (SKW-530)

Type : Bass-reflex

Input sensitivity/impedance : 330 mV/ 100 kohm

Maximum output power : 230 W (Dynamic Power)

Frequency response : 25 Hz - 150 Hz

Cabinet capacity : 1.36 cubic feet (38.5 L)

Dimensions (W X H X D) : 10-13/16" x 20-3/8" X 16-3/16"
(275 x 518 x411mm)

Weight : 30 lbs. (13.6 kg)

Driver unit : 10 inch Cone Woofer

Power supply : North American : AC 120 V, 60 Hz
Australian : AC 230-240 V, 50 Hz

Power consumption : North American : 150 W
Australian : 134 W

Other : Auto Standby function

Front Speaker (SKF-530F)

Type : 2 Way Bass-reflex

impedance : 8 ohm

Maximum input power: 110W

Output sound pressure level : 86 dB/W/m

Frequency response : 55 Hz - 50 kHz

Crossover frequency : 4.5 kHz

Cabinet capacity : 0.31 cubic feet (8.7 L)

Dimensions (W X H X D) : 6-3/16" x 17»1/16" X 7-7/8"
(157 X 434 x 200 mm)

Weight: 8.61bs. (3.9 kg)

Drivers unit : 5 inch (12 cm) OMF Cone Woofer
x 2
1 inch (2.5 cm) Balanced Dome
Tweeter

Terminal : Color»coded push type

Other : Magnetic shielding

HTP-530

Center Speaker (SKC-530C)

Type : 2 Way Bass-reflex

Impedance : 8 ohm

Maximum input power: 110 W

Output sound pressure level : 86 dB/W/m

Frequency response : 55 Hz - 50 kHz

Crossover frequency : 4.5 kHz

Cabinet capacity : 031 cubic feet (8.7 L)

Dimensions (W x H X D) : 17-1/16" x 6-3/16" x 7-7/8"
(434 x 157 X 200 mm)

Weight : 8.6 lbs. (3.9 kg)

Drivers unit : 5 inch (12 cm) OMF Cone Woofer
x 2
1 inch (2.5 cm) Balanced Dome
Tweeter

Terminal : Color-coded push type

Other : Magnetic shielding

Surround Speaker (SKM-53OS/SKB-530)

Type : 2 Way Bass-reflex
Impedance : 8 ohm
Maximum input power: 110 W
Output sound pressure level : 82 dB/W/m
Frequency response : 60 Hz - 20 kHz
Crossover frequency : 10 kHz
Cabinet capacity : 007 cubic feet (2.1 L)
Dimensions (W x H x D) : 6-7/8" x 10-7/16" x 4"
(175 x 265 x102 mm)
Weight: 3.1 lbs. (1.4 kg)
Drivers unit : 3-1/8 inch (8 cm) Cone Woofer
3/4 inch (2 cm) Ceramic Tweeter
Terminal : Color-coded push type
Other : Magnetic shielding

Specifications and appearance are subject to change
without prior notice.
