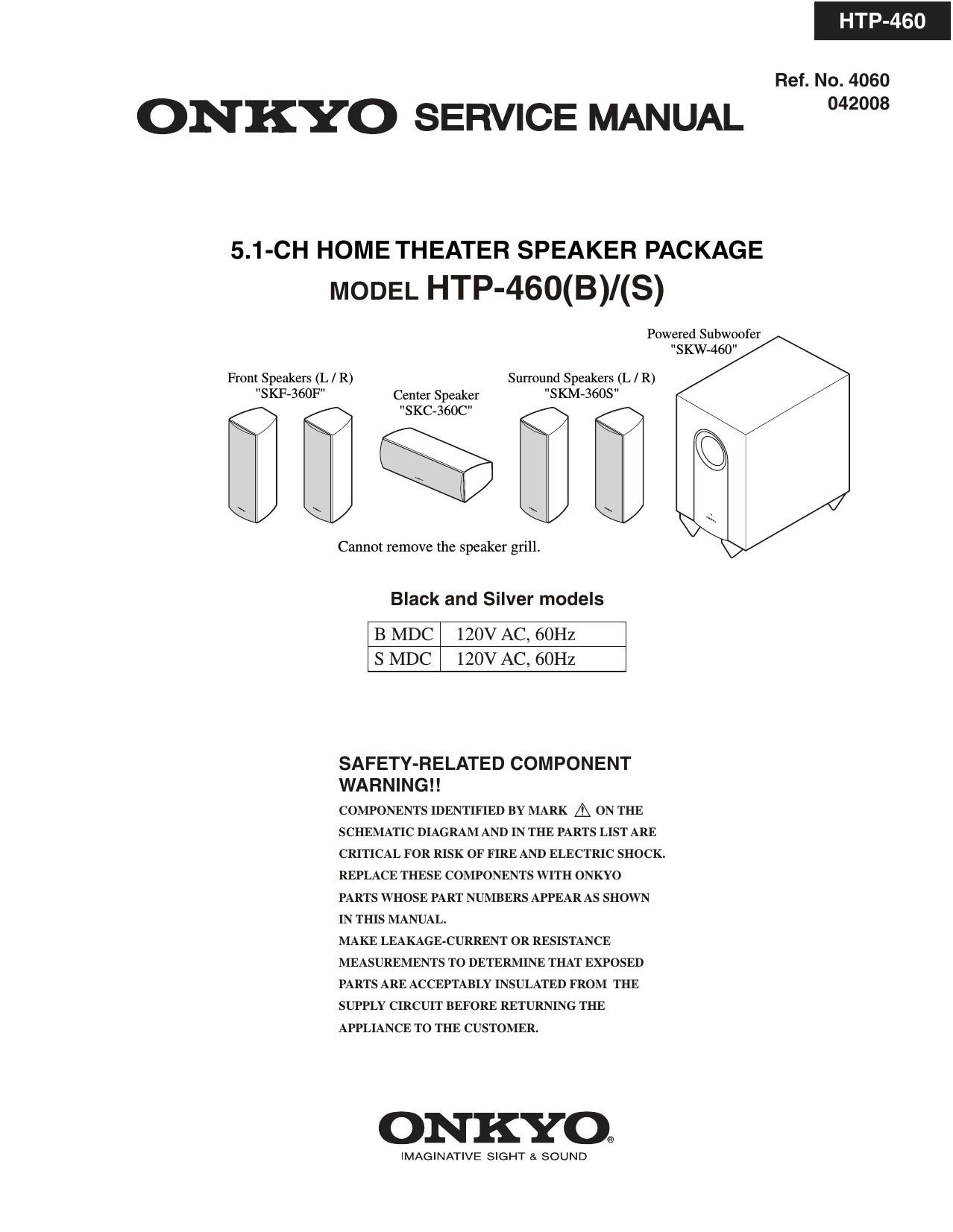

Page 1
ONKYO SERVICE MANUAL
5.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-460(B)/(S)
Powered Subwoofer
Front Speakers (L / R) Surround Speakers (L / R)
"SKF-360F"
Center Speaker "SKM-36OS"
9 "SKC-360C"
Cannot remove the speaker grill.
Black and Silver models
B MDC 120V AC, 60Hz
S MDC 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT 8r SOUND
"SKW-460
HTP-460
Ref. No. 4060
042008
Page 2
HTP-460
EXPLODED VIEWS-1
SKW-460 : POWERED SUBWOOFER
Refer to "EXPLODED VIEWS-2"
0917'le
