HTP-450
Ref. No. 4008

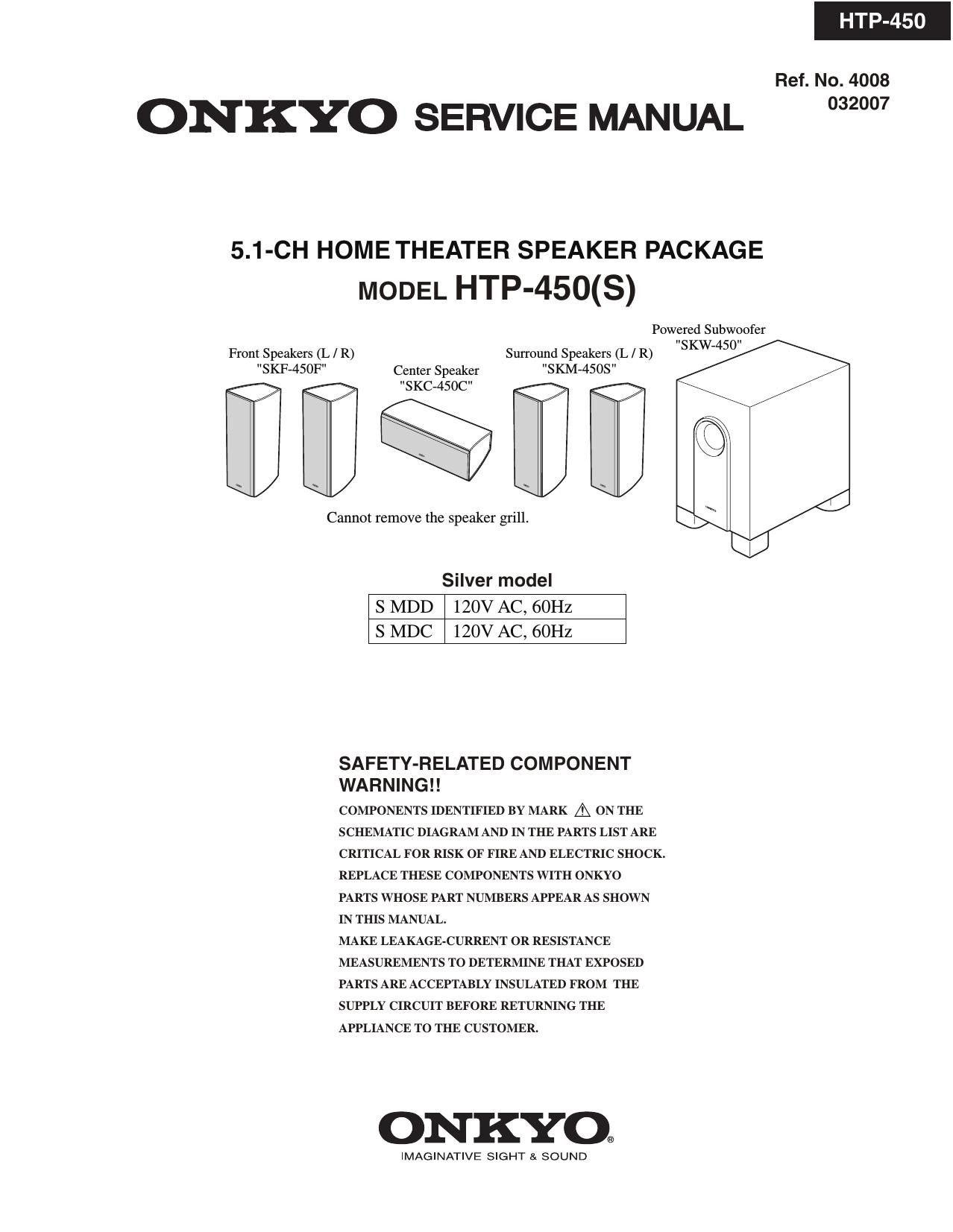

ONKYO SERVICE MANUAL °32°°7
5.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-450(S)
Powered Subwoofer
" SKW-450"
Front Speakers (L / R) Surround Speakers (L / R)
"SKF-450F" Center Speaker "SKM-4SOS"
. . "SKC»450C .
Cannot remove the speaker grill.
Silver model
S MDD 120V AC, 60Hz
S MDC 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
Page 2
HTP-450
EXPLODED VIEWS-1
SKW-450 : POWERED SUBWOOFER
Refer to "EXPLODED VIEWS-2"
0917'le
