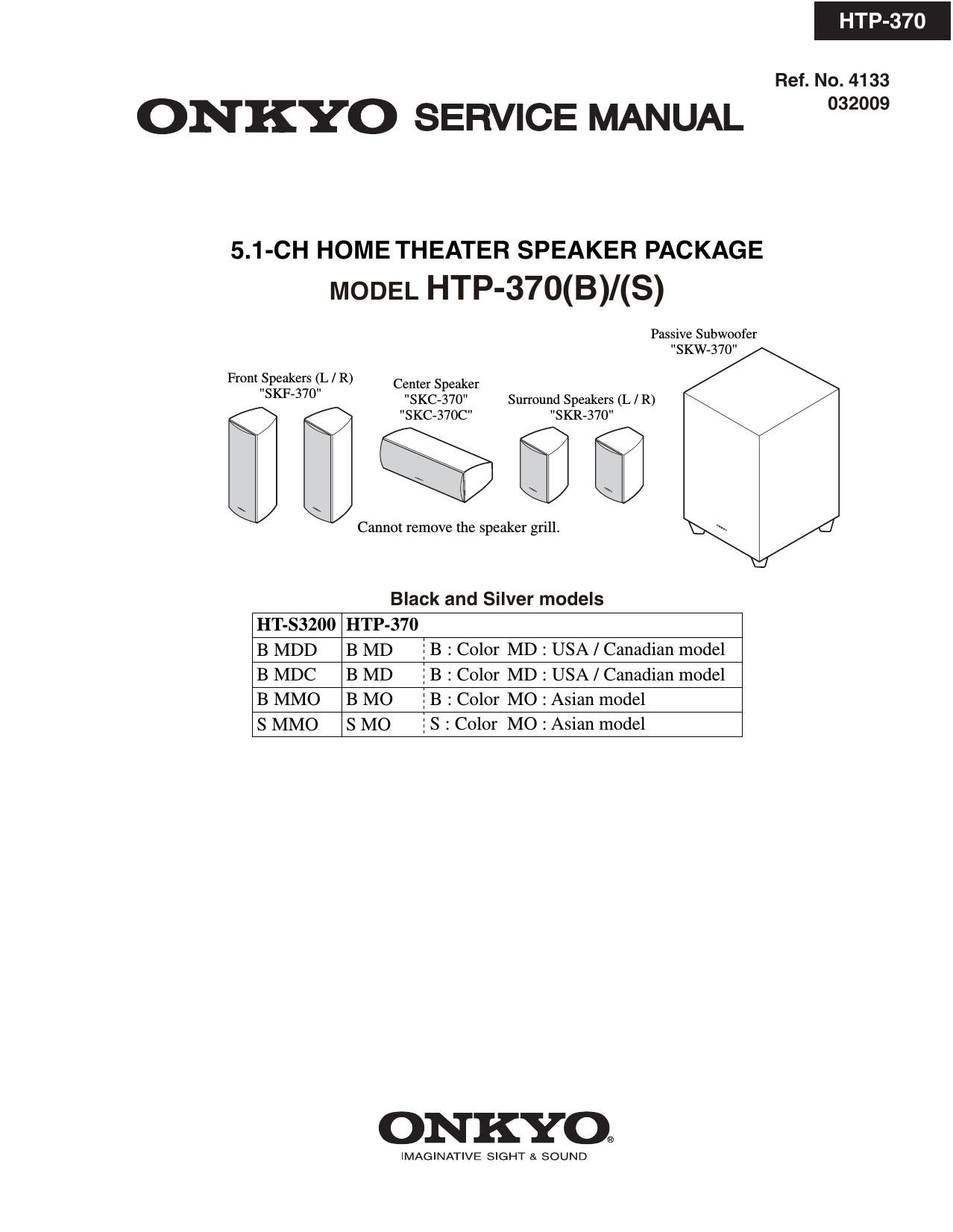

Page 1
HTP-370
Ref. No. 4133
ONKYO SERVICE MANUAL °32°°9
5.1-CH HOME THEATER SPEAKER PACKAGE
MODEL HTP-370(B)/(S)
Passive Subwoofer
"SKW-370"
Front Speakers (L / R)
"SKF»370" Center Speaker
"SKC-370" Surround Speakers (L / R)
9 "SKC-370C" ®m3®
Cannot remove the speaker grill.
Black and Silver models
HT-S3200 HTP-370
B MDD B MD 3 B : Color MD : USA / Canadian model
B MDC B MD 3 B : Color MD : USA / Canadian model
B MMO B MO 3 B : Color MO : Asian model
S MMO S MO 3 S : Color MO : Asian model
ONKYO®
IMAGINATIVE SIGHT & SOUND
Page 2
SERVICE NOTE
MODEL
HTP-370
HT-S3200(B)MDD/MDC (5.1ch Home Theater System)
HT-83200(B)/(S)MMO (5.1ch Home Theater System)
HTP-370(B)MD (Selch Speaker System)
SKW-370 : Passive Subwoofer
SKF-370 : Front Speakers
SKC-370 : Center Speaker (full-range speaker x I)
SKR-370 : Surround Speakers
HTP-370(B)/(S)MO (5.1ch Speaker System)
SKW»370 : Passive Subwoofer
SKF-37O : Front Speakers
SKC-370C : Center Speaker (full-range speaker x 2)
SKR-370 : Surround Speakers
