Extracted text from Onkyo HTP 340 Service Manual (Ocr-read)

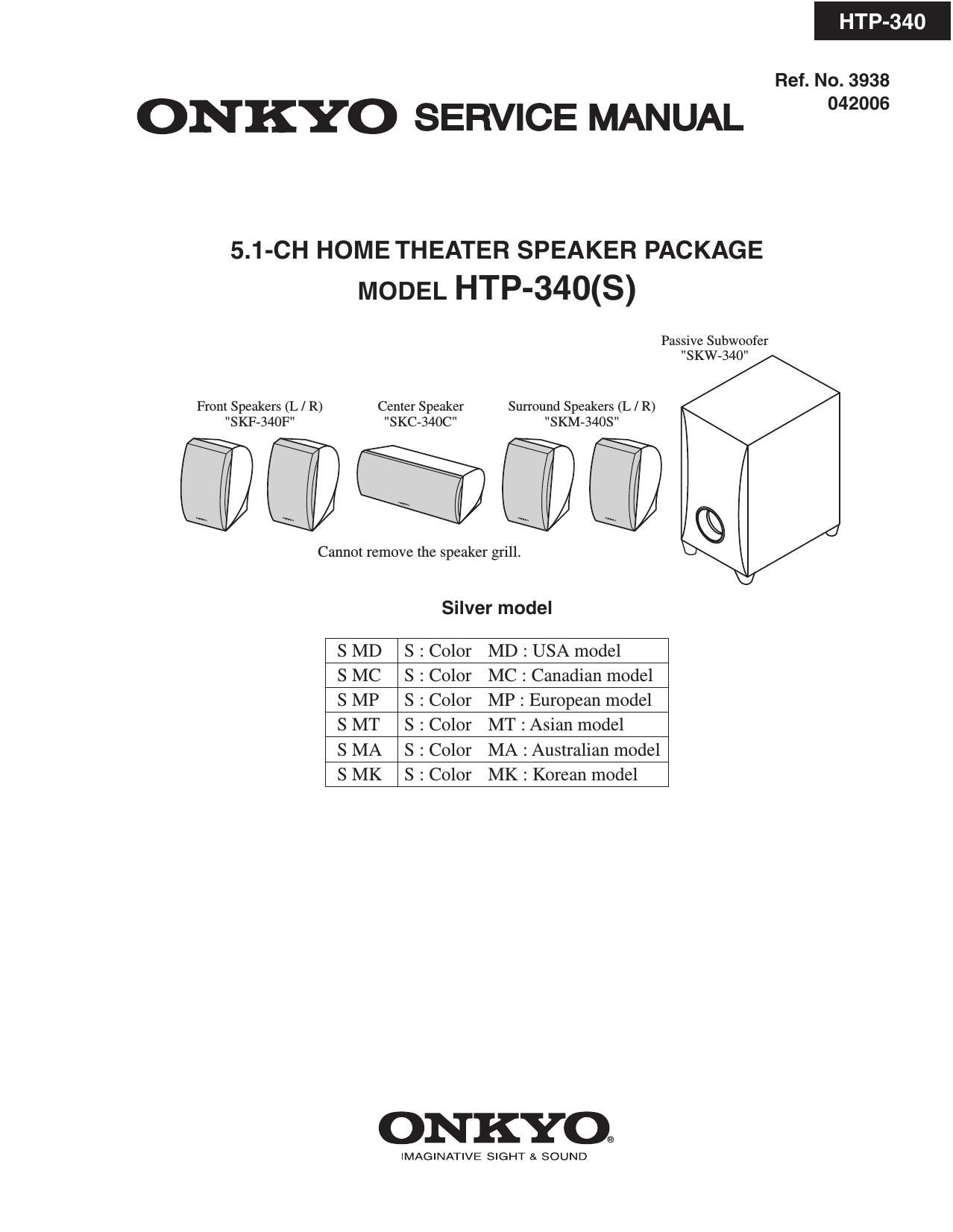

Page 1
HTP-340 SPECIFICATIONS Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal :Bass-reflex type Passive Subwoofer 6 ohm 125 W 85 dB/m/w 30 Hz - 150 Hz 1.1 cubic feet (31 L) 9-1/4" x 18-1/8" x 16-1/8" (235 x 461 x 410 mm) 17.9 lbs. (8.1 kg) 8" (20 cm) Cone Spring type color coded Front Speaker (SKF-340F) Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille : Other :2 Way Bass-reflex 6 ohm 120 W 84 dB/W/m 80 Hz - 22 kHz 10 kHz 0.046 cubic feet (1.3 L) 4-9/16" x 8-9/16" x 5" (116 x 218 x 127 mm) 2.0 lbs. (0.9 kg) 3-1/8" (8 cm) Cone (Woofer) 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 1 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Magnetic shieldingType : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille : Other :2 Way Bass-reflex 6 ohm 120 W 87 dB/W/m 80 Hz - 22 kHz 10 kHz 0.092 cubic feet (2.6 L) 11-13/16" x 5-1/16" x 4-5/8" (300 x 128 x 118 mm) 3.3 lbs. (1.5 kg) 3-1/8" (8 cm) Cone (Woofer) x 2 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 2 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Magnetic shielding Surround Speaker (SKM-340S) Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille :2 Way Bass-reflex 6 ohm 120 W 83 dB/W/m 80 Hz - 22 kHz 10 kHz 0.046 cubic feet (1.3 L) 4-9/16" x 8-9/16" x 5" (116 x 218 x 127 mm) 1.5 lbs. (0.7 kg) 3-1/8" (8 cm) Cone (Woofer) 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 1 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Specifications and appearance are subject to change without prior notice. Passive Subwoofer (SKW-340) Center Speaker (SKC-340C)
Page 2
HTP-340 HTP-340 EXPLODED VIEWS-1 SKW-340 : PASSIVE SUBWOOFER SP09a / SP09b SP06SP05a / SP05b SP07a / SP07b SP01a / SP01b / SP01c SP03 x 4 pcs.SP02 x 4 pcs.SP03 x 8 pcs. SP08
