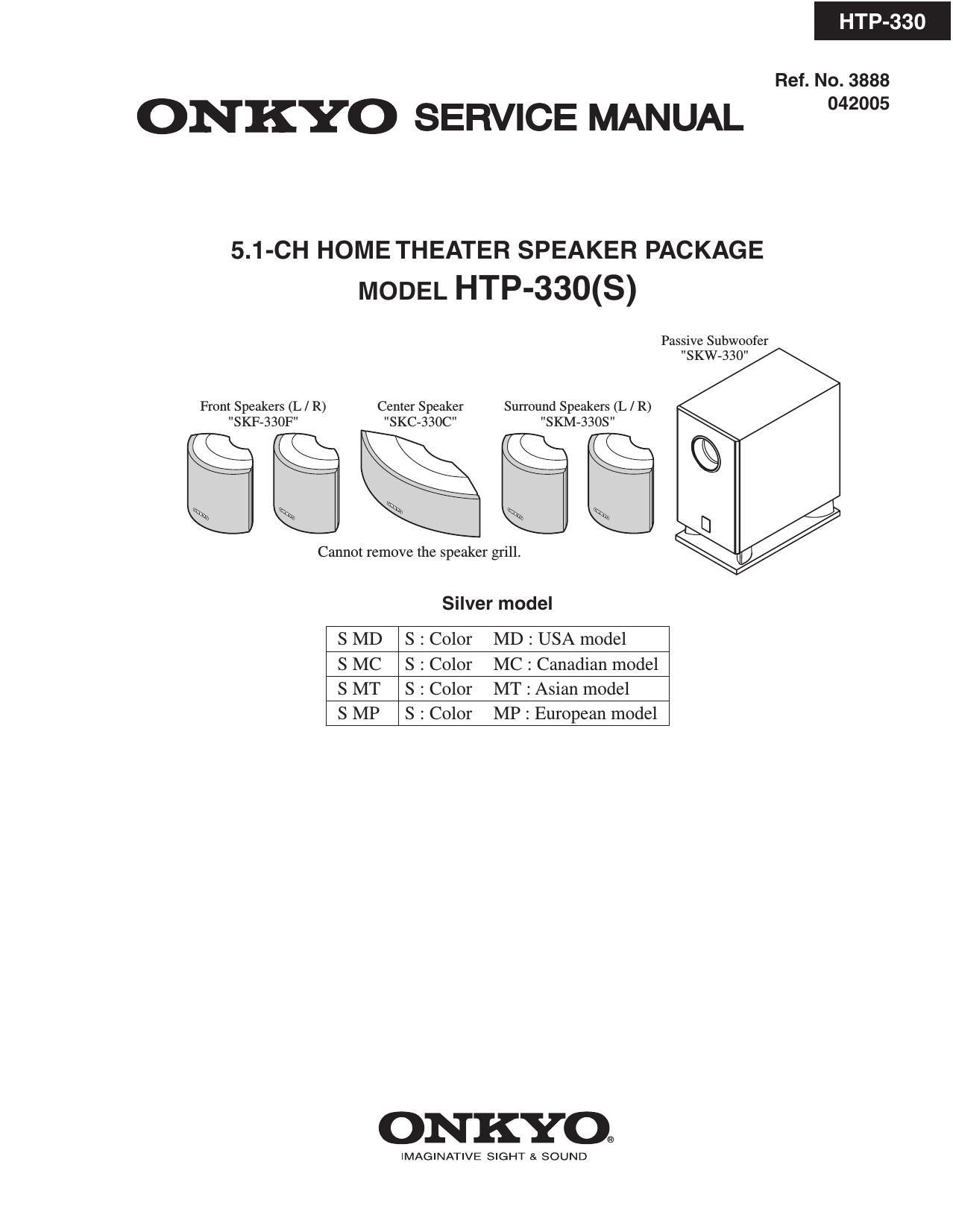

Onkyo HTP 330 Service Manual
This is the 7 pages manual for Onkyo HTP 330 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo HTP 330 Service Manual (Ocr-read)
Page 1
HTP-330 SPECIFICATIONS Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal :Bass-reflex type 8 ohm 100 W 84 dB/m/w 30 Hz - 150 Hz 0.91 cubic feet (26 L) 9-1/16" x 17-1/8" x 15-7/16" (230 x 435 x 392 mm) 17.2 lbs. (7.8 kg) 8" (20 cm) Cone Spring type color coded Front Speaker (SKF-330F) Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille : Other :2 Way Bass-reflex 8 ohm 100 W 83 dB/W/m 80 Hz - 22 kHz 10 kHz 0.042 cubic feet (1.2 L) 5-13/16" x 7-15/16" x 4" (148 x 202 x 101 mm) 2.0 lbs. (0.9 kg) 3-1/8" (8 cm) Cone (Woofer) 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 1 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Magnetic shieldingType : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille : Other :2 Way Bass-reflex 8 ohm 100 W 86 dB/W/m 80 Hz - 22 kHz 10 kHz 0.081 cubic feet (2.3 L) 14-3/16" x 5" x 5-3/16" (360 x 127 x 131 mm) 3.5 lbs. (1.6 kg) 3-1/8" (8 cm) Cone (Woofer) x 2 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 2 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Magnetic shielding Surround Speaker (SKM-330S) Type : Impedance : Maximum input power : Output sound pressure level : Frequency response : Crossover frequency : Cabinet capacity : Dimensions (W x H x D) : Weight : Drivers unit : Terminal : Key hole slot : Threaded insert : Grille :2 Way Bass-reflex 8 ohm 100 W 82 dB/W/m 80 Hz - 22 kHz 10 kHz 0.042 cubic feet (1.2 L) 5-13/16" x 7-15/16" x 4" (148 x 202 x 101 mm) 1.5 lbs. (0.7 kg) 3-1/8" (8 cm) Cone (Woofer) 3/4" (2 cm) Ceramic (Tweeter) Spring type color coded 1 North American model : 1/4" screw, Depth 5/16" Other models : 5 mm screw, Depth 8 mm Fixed Specifications and appearance are subject to change without prior notice. Passive Subwoofer (SKW-330) Center Speaker (SKC-330C)
Page 2
HTP-330 HTP-330 EXPLODED VIEWS-1 SKW-330 : PASSIVE SUBWOOFER SP06 x 8 pcs. SP07 SP09a / SP09b SP08 SP04 SP01a / SP01b SP03 SP05 x 4 pcs. SP02 x 4 pcs.
