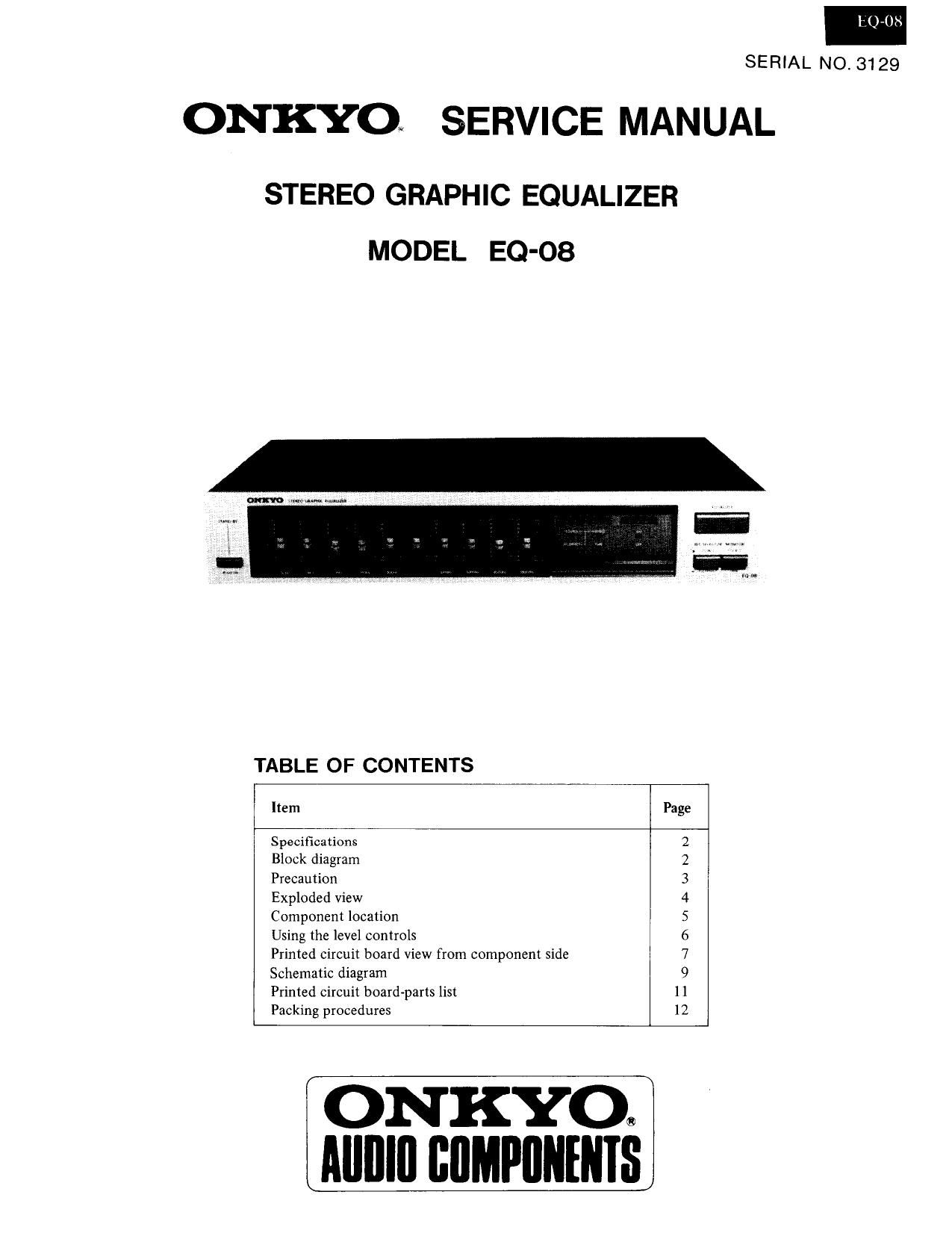

Page 1
LQ-Oh
SERIAL NO. 3129
ONKYOi SERVICE MANUAL
STEREO GRAPHIC EQUALIZER
MODEL EQ-08
TABLE OF CONTENTS
Item Page
Specifications 2
Block diagram 2
Precaution 3
Exploded View 4
Component location 5
Using the level controls 6
Printed circuit board view from component side 7
Schematic diagram 9
Printed circuit board~parts list 1]
Packing procedures 12
ONKYOQ
Alllllll flflMPflNleS
Page 2
ONKYO SERVICE MANUAL
STEREO GRAPHIC EQUALIZER
MODEL EQ-08(B)
Black model
NOTE.
For model EQ-08 (B), read EQ-08 as ESQ-08 (B), But the following parts are not
the same on models E008 (B) and EQOS,
PAGE REF. NO. PARTS NO. DESCRIPTION
4 A12 1933812] Front panel assy
4 A17 28184232 Top cover
4 A20 28320895 Knob, Push switch
4 A21 28320929 Knob, Power switch
4 A22 28321529 Knob, Equalizer switch
4 A23 283215 30 Knob assy, Variable resistor
12 A851 29050942 Master carton box
12 293650065 Warranty card (U)
12 29358002A Service station list (U)
(U): Only U.S.Ai model
ONKYOQ
Alllllll lllIMPflllflllS
