Onkyo DXC 909 Service Manual
This is the 16 pages manual for Onkyo DXC 909 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo DXC 909 Service Manual (Ocr-read)

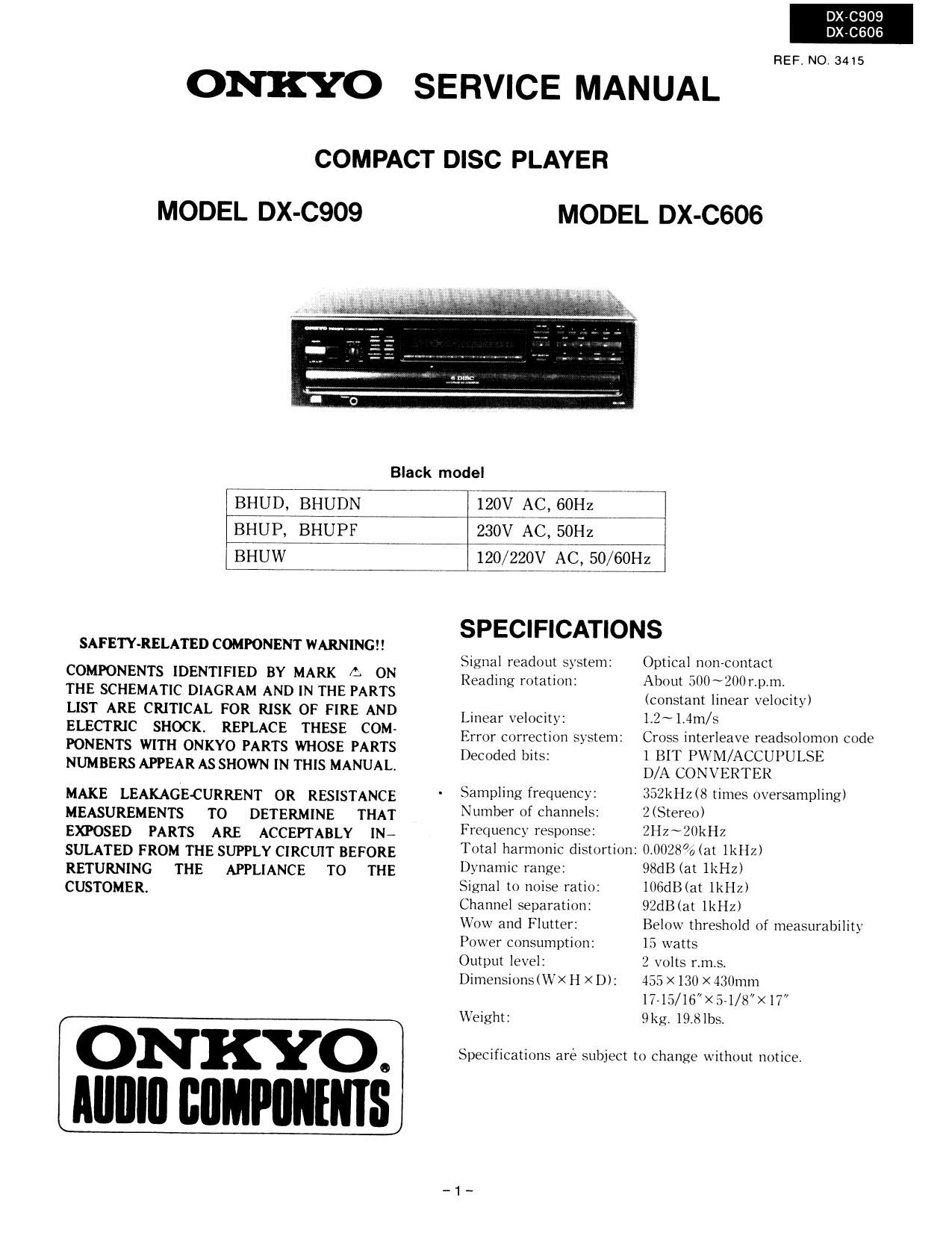

Page 1
DX-C909
DX-C606
REF. NO. 3415
ONKYO SERVICE MANUAL
COMPACT DISC PLAYER
MODEL DX-C909 MODEL DX-C606
Black model
BHUD, BHUDN 120V AC, 60Hz
BHUP, BHUPF Z30V AC, 50Hz
BHUW 120/220V AC, 50/60Hz
SPECIFICATIONS
SAFETY-RELATED COMPONENT WARNING
Signal readout system: Optical nonrcontact
COMPONENTS IDENTIFIED BY MARK A ON Reading rotation: About 300~20(Jr,p.m.
THE SCHEMATIC DIAGRAM AND [N THE PARTS (constant linear velocity)
LIST ARE CRITICAL FOR RISK OF FIRE AND Linear velocity: 12~1_4m/s
ELECTRIC SHOCK REPLACE THESE COM. Error correction system: Cross interleave readsolomon code
PONENTS WITH ONKYO PARTS WHOSE PARTS Decoded bits: 1 BIT PWM/ACCUIULSE
NUMBERS APPEAR AS SHOWN IN THIS MANUAL, D/A CONVERTER
MAKE LEAKAGE-CURRENT OR RESISTANCE ~ Sampling frequency: 352kHz<8 times oversampling)
MEASUREMENTS TO DETERMINE THAT Number of channels: 2(Stereo)
EXPOSED PARTS ARE ACCEPTABLY IN~ Frequency response: 2Hz~20kHz
SULATED FROM THE SUPPLY CIRCUIT BEFORE Total harmonic distortion: ().()[)28% (at lkllz)
RETURNING THE APPLIANCE TO THE Dynamic range: 98dB (at 1kHz)
CUSTOMER. Signal to noise ratio: 1(l6dB
Power consumption: 13 watts
Output level: 2 volts r.m.s.
I)imensions(W>< H X 1)): 453 X130 X 43(Jmm
17715/16"><571/8">< 17"
Weight: 9kg. 19.8le.
ONK E 0 Specifications are subject to change without notice.
0
Page 2
DXVCSOS
DX~C606
TABLE OF CONTENTS
Specifications .............................................................. 1
Service procedures ...................................... .2
Caution on replacement of optical pickup... .2
Protection of eyes from laser beam during servicing.....3
Laser warning label ..........................
IC block diagrams and descriptions.
Mechanism-exploded view ................
Mechanism-parts list..
Exploded View ........... .
Parts list ................................................................... 15
Block diagram ..............
Adjustment procedures.
Primed circuit board view from bottom side ............... 21
Printed circuit board-parts list...
Packing view .............................
SERVICE PROCEDURES
1. Safety-check out
After correcting 'the original service problem.perform
the following safety check before releasing the set
to the customer:
Connect the insulatingresistance tester between the
plug of power supply cord and chassis.
SpecificationsMore than 10Mohm at 500V.
2. Voltage Selector (Back panel)
Worldwide models are equipped with a voltage selector
to conform with local power supplies.Be sure to set
this switch to match the voltage of the power supply
in user's area before turning the power switch on.
Voltage is changed by sliding the groove in the switch
with a screw driver to the right or left.
Confirm that the switch has been m0ved all the way to
the right or left before turning the power switch on.
[ID [IE]
4- 4- |->
220v ~ 120v ~ 220v ~ 120V ~
at ACIZOV at AC220V
CAUTION ON REPLACEMENT OF OPTICAL PICKUP
The laser diode in the optical pickup block is so
sensitive to static electricitysurge current and etc.
that the components are liable to be broken down
or its reliability remarkably deteriorated
PRECAUTIONS
During repair,carefnlley take the following precautions.
(The following precautions are included in the service
parts.)
1.Ground for the work-desk.
Place a conductive sheet such as a sheet of copper
(with inpedance lower than lOMfl.) on the work
desk and place the set on the conductive sheet so
that the chassis.
2.Grounding for the test equipment and tools.
Test equipments and toolings should be grounded
in order that their ground level is the same the
ground of the power source.
3.Grounding for the human body.
He sure to put on a wrist-strap for grounding whose
other end is grounded.
Be particularly careful when the workers wear
synthetic fiber clothes, or air is dry.
4.Select a soldering iron that permits no leakage and
have the tip of the iron well-grounded.
5.Do not check the laser diode terminals with the
probe of a circuit tester or oscilloscope.
Page 16
n ' , ' 09
DX7C606
PACKING VIEW
CAUTIONzRefer the before page when lock the transport screw.
PA RT LIST 123OV model only
ONKYO DEUTSCHLAND GMBH ELECTRONICS
-26-
REFNO. PART NO DESCRIPTION PART NO. DESCRIPTION
201 800306 M5 X 20,Wing screw Accessary bag ass'y
202 27270357 15 X 5 X 045,Spacer 2010098A Connection cord
203 24822012 Brackeppi-n «. 2010200 Connection cord RI
204 27265155A Ring,cover 24140220A RC-220C,Remote control unit
205 834430088 31TS+SB(BC),Self-tapping screw 24140219A RC7219C,Remote control unit
206 29052348 Master canon box
29052347 Master canon box
207 29091548 Pad L 29341700 Instruction manual
208 29091549 Pad R 29341701 Instruction manual
209 29lO€D38A Polystyrene bag 29365019A Warranty card
210 291 10071 Damplon tape 29365024A Wamnry card
211 282301 Sealing hook 29100107 Bag for warranty card
212 29095019-1 0,5 X600 >< 800,?rotection sheet 293580021 Service station list
213 29091578 Pad W 25055040 CV-K-2,Conversion plug
214 29095648 20 X 450 X 60,Protection sheet
215 29095600 0.5 X350 X 250,Protection sheet NOTE:
216 29361434 Label
217 29361433 Label
ONKYO CO RPORATION
InternationalDivision ONKYO FRANCE S.A.R.L.
Onaliomon Yusen Bldg..23~5.Nishi-Shinbashi lmmcuble Le DIAMANlDomaine Technologique De
3-chome.Minalo-ku,TOKYO lOSJAPAN Saclay.4 me Rene le,91892 SACLAY,FRANCE
Tel:03-3432-6987 Faxzo3-3436-6979 Tel:(1)69 41 35 10 Fax:(1)69 41 35 84
ONKYO U.S.A CORPORATION ONKYO Europe GmbH
200 Williams deeBamseyNJl 07446,U.S.A, Hellersbugstrasse 4.4040 Nwss.GERMAN Y
Te1:201-825-7950 Fuz201~825-8150 Tel:02101 12 00 75 Fax:02101 10 33 06
lndusu-iesme .8034 Gamering. GERMANY
Tel:089 B4 93 20 Fax:089 84 93 226 A1 1 2 Printed in Japan
