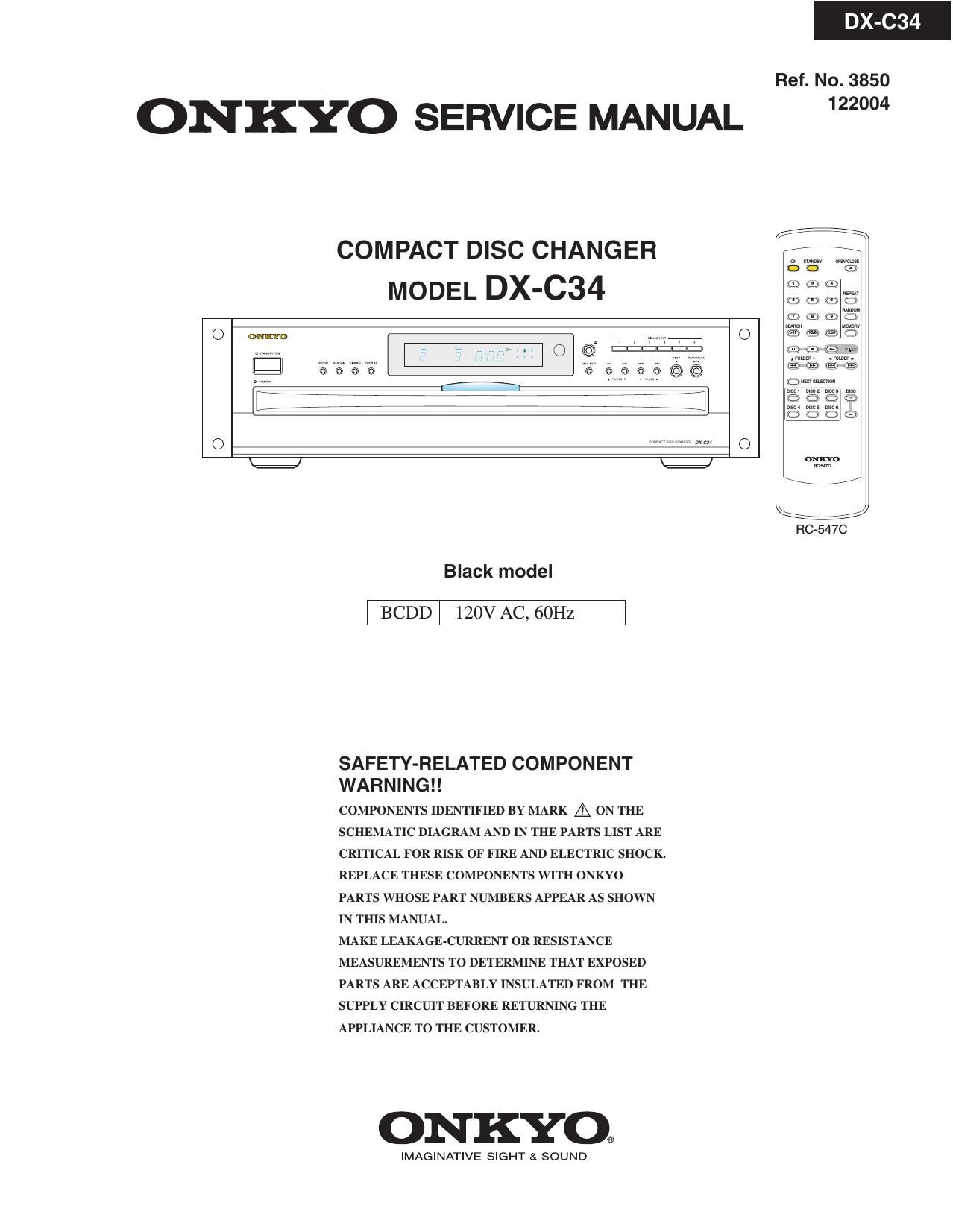

Page 1
DX-C34
Ref. No. 3850
ONKYO SERVICE MANUAL 2"
COMPACT DISC CHANGER
MODEL DX-C34
RC»547C
Black model
BCDD 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
Page 2
DX-C34
SPECIFICATIONS
Specifications
DX-C34 (Compact Disc Changer)
Signal readout system ...................... Optical non»contact
Frequency response ................................... 5 Hz-20 kHz
SN ratio ................................................................. 98 dB
Audio Dynamic range ....................................... 96 dB
THD (Total harmonic distortion) .. 0.005% (at 1 kHz)
Audio output (Digital/Optical) ...................... -22.5 dBm
Audio output/Impedance (Digital/Coaxial)
........................................................ 0.5 V (p-p) / 75 ohm
Audio output/Impedance (Analog)
..................................................... 2.0 V (rms) / 470 ohm
Power supply rating .............................. AC 120 V 60 Hz
Power consumption ................................................ 10 W
Standby power consumption .................................... 4 W
Dimensions (W x H X D). ..... 19" x 53/16 x 17"
.(483 x131 x 432 mm)
Weight ................................................. 16.5 lbs. (7.5 kg)
Operating conditions Temperature/Humidity
.. 41-950 F (5-35n C) / 25-80%
..CD, CD-R, CD»RW
Disc compatibility ..
RC-547C (Remote Controller)
Transmitter ... ........................... Infrared
Signal range..
Power supply ............ Two (AA/R6) batteries (15 V x 2)
. Approx. 16 ft., 5 meters
Specifications and features are subject to change without notice.
