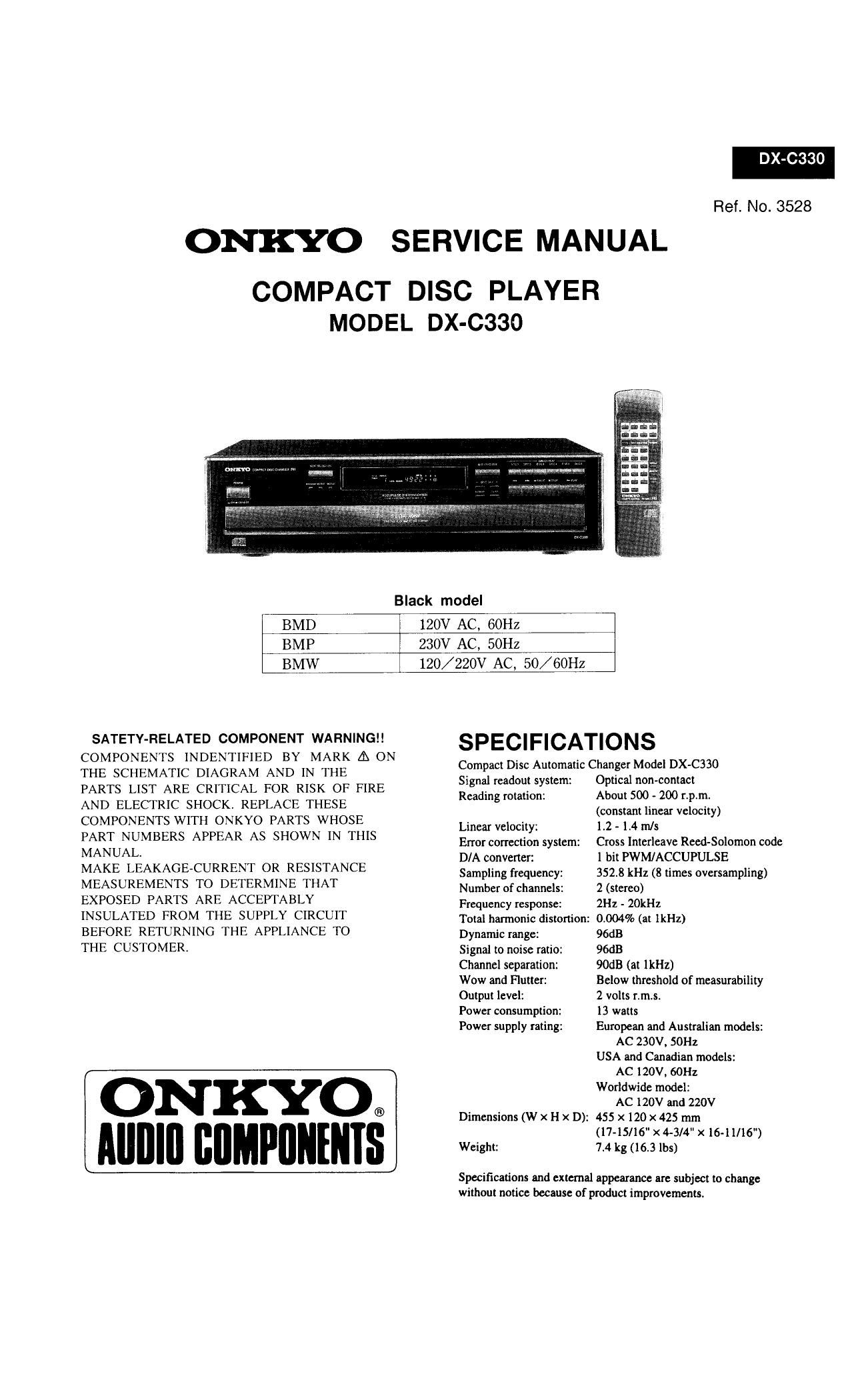

DX-C330

Flef. No. 3528

ONKYO SERVICE MANUAL

COMPACT DISC PLAYER
MODEL DX-C330

Black model

BMD

120V AC, 60Hz

BMP

230V AC, 50Hz

BMW

120/ 220V AC, 50/ 60Hz

SATETY-RELATED COMPONENT WARNING
COMPONENTS INDEN'IIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE
PARTS LIST ARE CRITICAL FOR RISK OF FIRE
AND ELECTRIC SHOCK. REPLACE THESE
COMPONENTS WITH ONKYO PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL.

MAKE LEAKAGECURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT
BEFORE RETURNING THE APPLIANCE TO
THE CUSTOMER.

ONKYO®
Mllllll BllMPllllfllIS

SPECIFICATIONS

Compact Disc Automatic Changer Model DX-C330

Signal readout system:
Reading rotation:

Linear velocity:

Error correction system:
D/A converter:
Sampling frequency:
Number of channels:
Frequency response:
Total harmonic distortion:
Dynamic range:

Signal to noise ratio:
Channel separation:
Wow and Flutter:
Output level:

Power consumption:
Power supply rating:

Dimensions (W X H x D):

Weight:

Optical non-contact
About 500 - 200 rpm
(constant linear velocity)
1.2 - 1.4 mls
Cross Interleave Reed-Solomon code
1 bit PWM/ACCUPULSE
3528 kHz (8 times oversampling)
2 (stereo)
2H1 - 20kHz
0,004% (at lkHz)
96dB
96dB
90dB (at IkHz)
Below threshold of measurability
2 volts rims
13 watts
European and Australian models:
AC 230V, 50Hz
USA and Canadian models:
AC l20V. 60H:
Worldwide model:
AC I20V and 220V
455 x120x425 mm
(l7-15/l6"x4-3/ " x 16-11/16")
7.4 kg (1643 lbs)

Specifications and external appearance are subject to change
without notice because of product improvements.

Page 2

DX-C330

TABLE OF CONTENTS

Specifications ............................

Sen i('t procedures ..............
Caution 0'1 replacoment of optical pickup ............... a

Promotion of eyes from Iitsm' Iliélm.,

SERVICE PROCEDURES

1. Safety-check out
After correcting the original service problem,perform
the following safety check before releasing the set
to the customer:

lusvr \Hn'nini. labels -------------------- Connect the insulating-resistance tester between the

plug of power supply cord and chassis.
Specifications:More than lOMohm at 500V.

2. Voltage Selector (Back panel)

I(,' Mock diagrams and descriptions ...................... 4

Iiicking \i(\\ ................

P:ck»tip lil'l\( unit

(I 1.;_->.'I Iii ' 1 . . .
h NI: \p m u \ w ) Worldwrde models are equipped With a voltage selector
Im-ts list ......................................................... 15 . .
to conform With local power supplies.Be sure to set
Block diagram ............................ 7

tltis switch to match the voltage of the power supply

Ad'uslment llllt'tdllles . . .
J I in users area before tummg the power switch on.

I~tI""'tI 'I">I hit .'I* ......... 21 _ .. . .
I l in a; ( H r UI lmzuil \ It \\ Irom 0 mn sir l 23 Voltage is changed by Sliding the ve m the swrtch
"1 'V 'Ii t-"l Iii ................... t . . .
n t ( mm m WI 5 I With a screw driver to the right or left.
(:Unil'tli position and names ................................. 27

Confirm that the switch has been moved all the way to
the right or left before turning the power switch on.

[ID [ID 7
- "-> < 1-,
220v ~ 120v ~ 220v ~ l20V ~
at mum at ACZZOV

CAUTION ON REPLACEMENT OF OPTICAL PICK UP

The laser diode in me optical pickup block is so During repaincarefulley take the following precautions.
sensitive to static electricity,surge current and etc. (The following precautions are included in the service
that the components are liable to be broken down parts.)

or its reliability remarkably deteriorated.

PRECAUTIONS

l.Ground for the work-desk. 3.Grounding for the human body.
Place a conductive sheet such 3 a sheet of copper Be sure to put on a wrist-snap for grounding whose
(with inpedance lower than 10MB.) on the work-
desk and place the set on the conductive sheet so
that the chassis.

I2.Grounding for the test equipment and tools.

Test equipments and toolings should be grounded

in order that their ground level is the same the

other end is grounded.
Be particularly careful when the workers wear
synthetic fiber clothes, or air is dry.
4.Select a soldering iron that permits no leakage and I
have the tip of the iron well-grounded.
5.Do not check the laser diode terminals with the

ground of the power source. probe of a circuit tester or oscilloscope.

l
