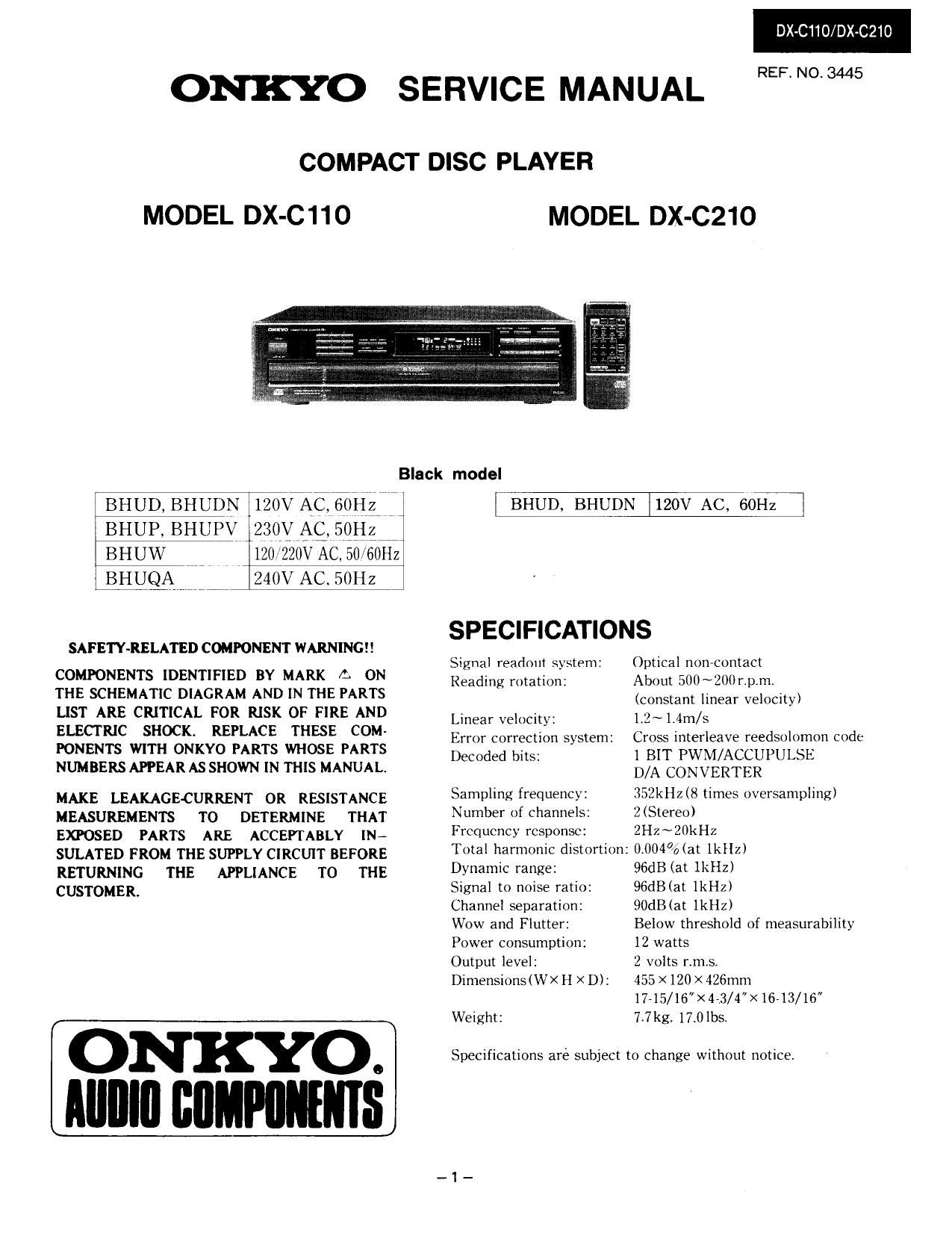

ONKYO SERVICE MANUAL

COMPACT DISC PLAYER

MODEL DX-C110

DX-CllO/DX-C210

REF. NO. 3445

MODEL DX-C210

BHUD, BHUiIgNiii WWW
BHUP. BHUEjy
BHUW

WAS: 5935

120V AC, song <

120/220»: Ac, 50/60Hz

Black model

BHUD, BHUDN

120V AC, eonz l

' 724w AC. 50Hz

SAFETY-RELATED COMPONENT WARNING

COMPONENTS IDENTIFIED BY MARK IL ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PARTS
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPIABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.

ON KYO.
IIIIIIII IIIIIIPIIIIIIIIS

SPECIFICATIONS

Signal readout system:
Reading rotation:

Linear velocity:
Error correction system:
Decoded bits:

Sampling frequency:
Number of channels:
Frequency response:

Total harmonic distortion:

Dynamic range:

Signal to noise ratio:
Channel separation:
Wow and Flutter:
Power consumption:
Output level:
Dimensions(W>< H X D):

Weight:

Optical non-contact

About 500~20(lrvp.m.

(constant linear velocity)

l.2~ 1.4m/s

Cross interleave reedsolomon code
1 BIT PWM/ACCUPULSE

D/A CONVERTER

352kHz(8 times oversampling)
2(Stcreo)

2Hz~20kHz

0.004%(at 1kIIz)

96dB (at IkHZ)

96dB(at IkHz)

QOdBtat lkHz)

Below threshold of measurability
12 watts

2 volts r.an.

455 X120 X 426mm
17-15/16X4-3/4">< 16-13/16
7.7kg. 17,01bs:

Specifications are subject to change without notice.

Page 2

DX-CllO/DX-C21O

TABLE OF CONTENTS

Specifications .............................. 1
Service procedures ............................ 2
Caution on replace-ant of optical pickup ...... 2
Protection of eyes fro. laser bean ............ 3
Laser Iarning labels .......................... 3
1C block diagrals and descriptions ............ 4
Packing viel .................................. 9
IechaniSI-exploded vie! ...................... 10

Changer Iechanisl .......................... 10

Pickup drive unit ......................... l2
Chassisiexploded View ........................ 13
Parts list .............................. .15
Block diagraur..t.........i...............;.rl7
Adjust-cut procedures ........................ 19
Printed circuit board vie! fro. button side.,21
Printed circuit board~parts list ............. 23
Disassubling procedures ..................... 25

SERVICE PROCEDURES

1. S afety~check out
After correcting the original service problem,perform
the following safety check before releasing the set
to the customer:
Connect the insulating-resistance tester between the
plug of power supply cord and chassis.
SpecificationszMore than lOMohm at 500V.

2. Voltage Selector (B ack panel)
Worldwide models are equipped with a voltage selector
to conform with local power supplies.Be sure to set
this switch to match the voltage of the power supply
in user's area before turning the power switch on.
Voltage is changed by sliding the groove in the switch
with a screw driver to the right or left.
Confirm that the switch has been moved all the way to
the right or left before turning the power switch on.

[ID [ID
{ - I-V
220v ~ 120v ~ 220v ~ 120v -~
at AC120V at ACZZOV

CAUTION ON REPLACEMENT OF OPTICAL PICKUP

The laser diode in the optical pickup block is so
sensitive to static electricitysurge current and etc.

During repair,carefulley take the following precautions.
(The following precautions are included in the service

that the components are liable to be broken down parts.)

or its reliability remarkably deteriorated

PR E C A U TIO N S

l.Ground for the work-desk. 3.Grounding for the human body.
Place a conductive sheet such as a sheet of copper Be sure to put on a wrist-strap for grounding whose
(with inpedance lower than 10MB) on the work« other end is grounded.

desk and place the set on the conductive sheet so
that the chassis.

2.Grounding for the test equipment and tools.
Test equipments and toolings should be grounded
in order that their ground level is the same the
ground of the power source.

Be particularly careful when the workers wear
synthetic fiber clothes, or air is dry.

4.Select a soldering iron that permits no leakage and
have the tip of the iron well-grounded.

5.Do not check the laser diode terminals with the
probe of a circuit tester or oscilloscope.

Page 18

DISASSEMBLING PROCEDURES

l.Front Panel

Remove the top cover.

Remove the three screws A and the five screws 3.
Remove the two end caps and the front panel.

2.Power switch pc board

Remove the top cover and the from panel.

Press the hook of guide and remove the guide.

Pull the power knob.

Remove the two screws D to remove the power switch pc board.

3.Tray panel

Remove the top cover.

Pull the tray ass'y tn the from direction.

Remove the two screws E.

Remove the hook of tray to remove the tray panel.
